Installing and connecting the device
3.1 Preparing for installation
SIMATIC IPC227G
22 Operating Instructions, 07/2022, A5E50059933-AC

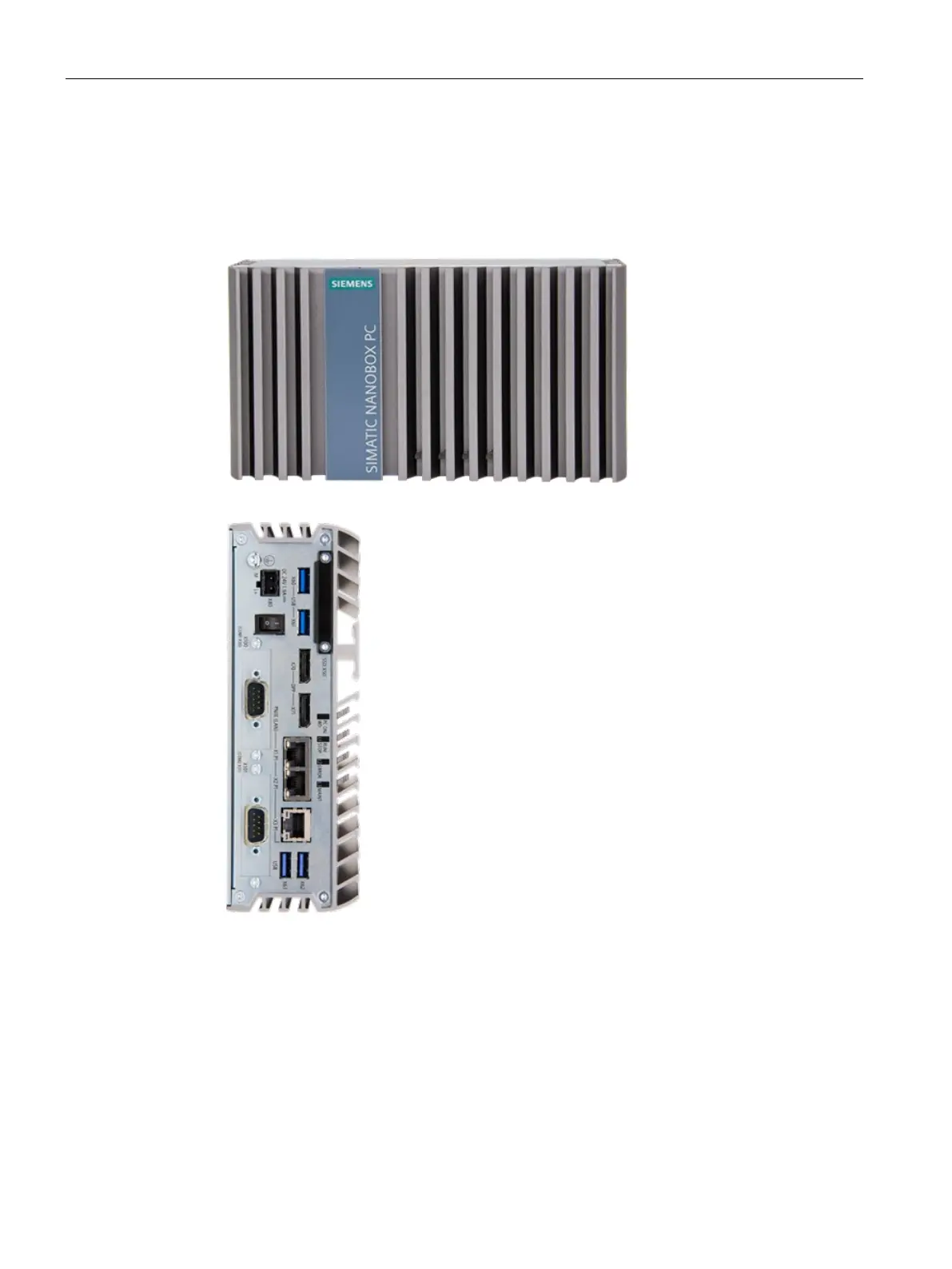

3.1.3 Permitted mounting positions
The following mounting positions are permitted:
• Horizontal mounting position
The horizontal mounting position is the preferred position.
• Vertical mounting position – upright mounting
Take into account the permitted temperature range for operation that depends on the
mounting position in accordance with the "Technical specifications (Page 71)" section.
Ensure that the following clearances measurements to another component or to a wall of the
enclosure are complied with:
• Underneath of the device at least 100 mm
• Side and above of the device at least 50 mm
• The ambient reference point is 40 mm distance from the left side of the device during
Hazardous Locations testing.
