Installing and connecting the device
3.2 Mounting the device
SIMATIC IPC227G
Operating Instructions, 07/2022, A5E50059933-AC
27
3.2.3 Wall mounting
Wall mounting is one of the horizontal mounting types.
Requirement
• Two mounting brackets
The mounting brackets and four screws are included in the order variant "Wall mounting".
• A T10 screwdriver
• Four anchors and four screws
Procedure for mounting

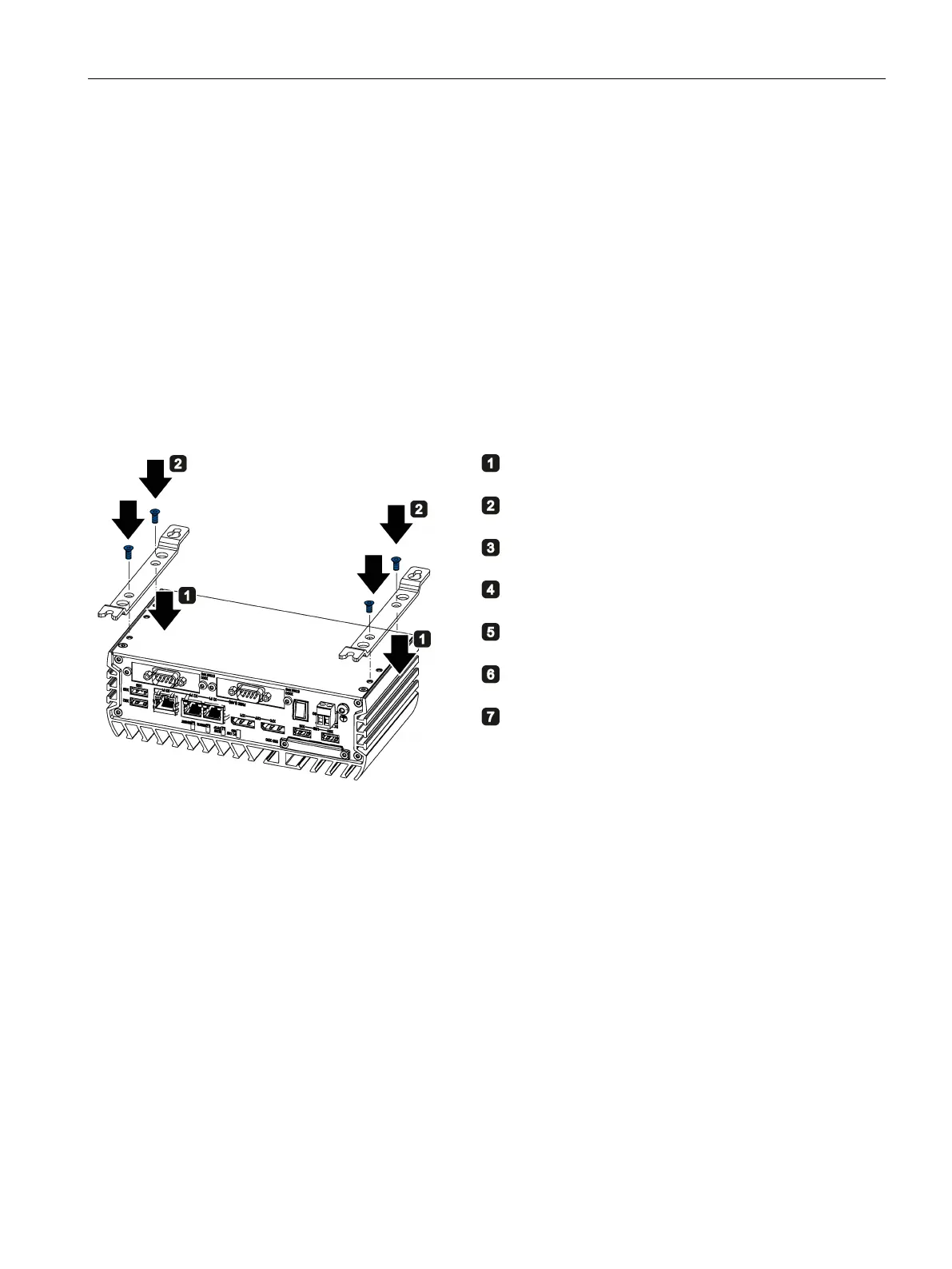

Place the mounting bracket on the rear of the
device.
Secure each of the mounting bracket with 2
screws.
Place the device with the mounting brackets onto
the mounting surface.
Mark the fixing holes.
Drill the fixing holes.
Insert the anchors in the drilled holes.
Screw on the device.
3.2.4 Upright mounting
Upright mounting is suitable for vertical mounting of the device. The corresponding
mounting bracket allows mounting that requires less space than standard rail mounting and
wall mounting.
Requirement
• Two mounting brackets
The mounting brackets and four screws are included in the order variant "Upright
mounting".
• A T10 screwdriver
• Four anchors and four screws
