SIMATIC IPC227G
Operating Instructions, 07/2022, A5E50059933-AC
43
Expanding and assigning parameters to the device
5.1 Open the device
Requirement
• The device is disconnected from the power supply.
• All connecting cables on the device are removed.
• The device is removed from the cabinet.
• A T10 screwdriver
Procedure - opening the device

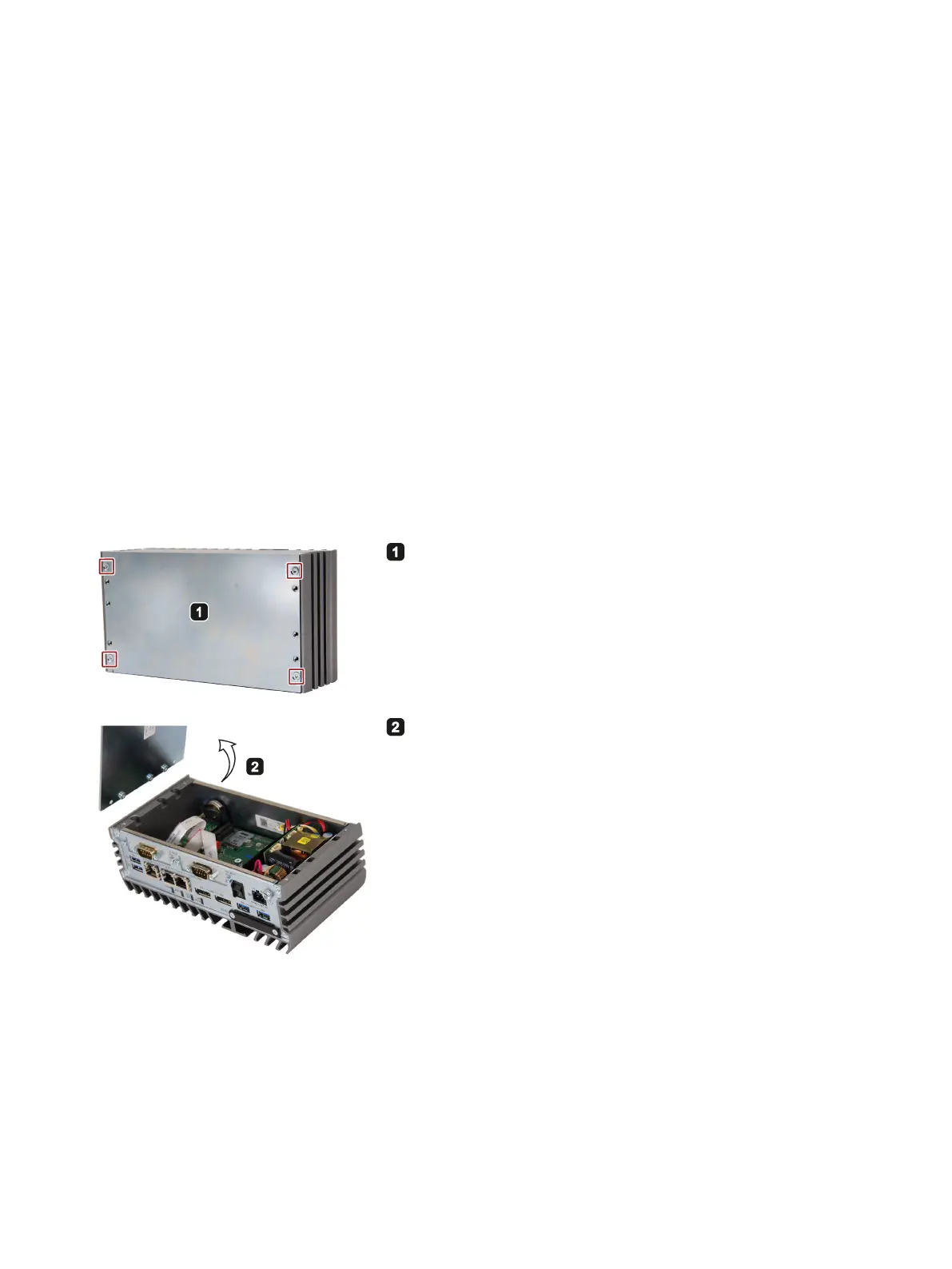

Remove the marked four screws on the rear panel of the device.
Lift up the device's rear panel.
Procedure - closing the device
To close the device, carry out the steps for opening the device in the reverse order.
