8 NCM S7 Diagnostics
A-272
S7-CPs for Industrial Ethernet Configuring and Commissioning
Release 01/2007
C79000-G8976-C182-07
8.3.4 Using a Gateway
Case a: One gateway
If the CP you want to check with diagnostic functions can only be reached via a
gateway, you must select the device and specify its node address in the local
network.
You must also specify the S7 subnet ID of the destination network:
The subnet ID consists of two numbers separated by a dash:
- One number for the project
- One number for the subnet
You will find the subnet ID in the object properties of the subnet in the STEP 7
project. The subnet ID is also printed out with the network configuration.
Node address:
PROFIBUS address 9
Rack / slot : 0/5
S7 - 300
CP
U
C
P
PG/PC
C
P
Attachment of gateway:
Industrial Ethernet
S7 - 300
CP
U
C
P
Node address (gateway) (MAC):
08-00-06-01-02-03
Attachment of target
station :
MPI/PROFIBUS/AUTO
S7 subnet ID of target network:
0001 0001

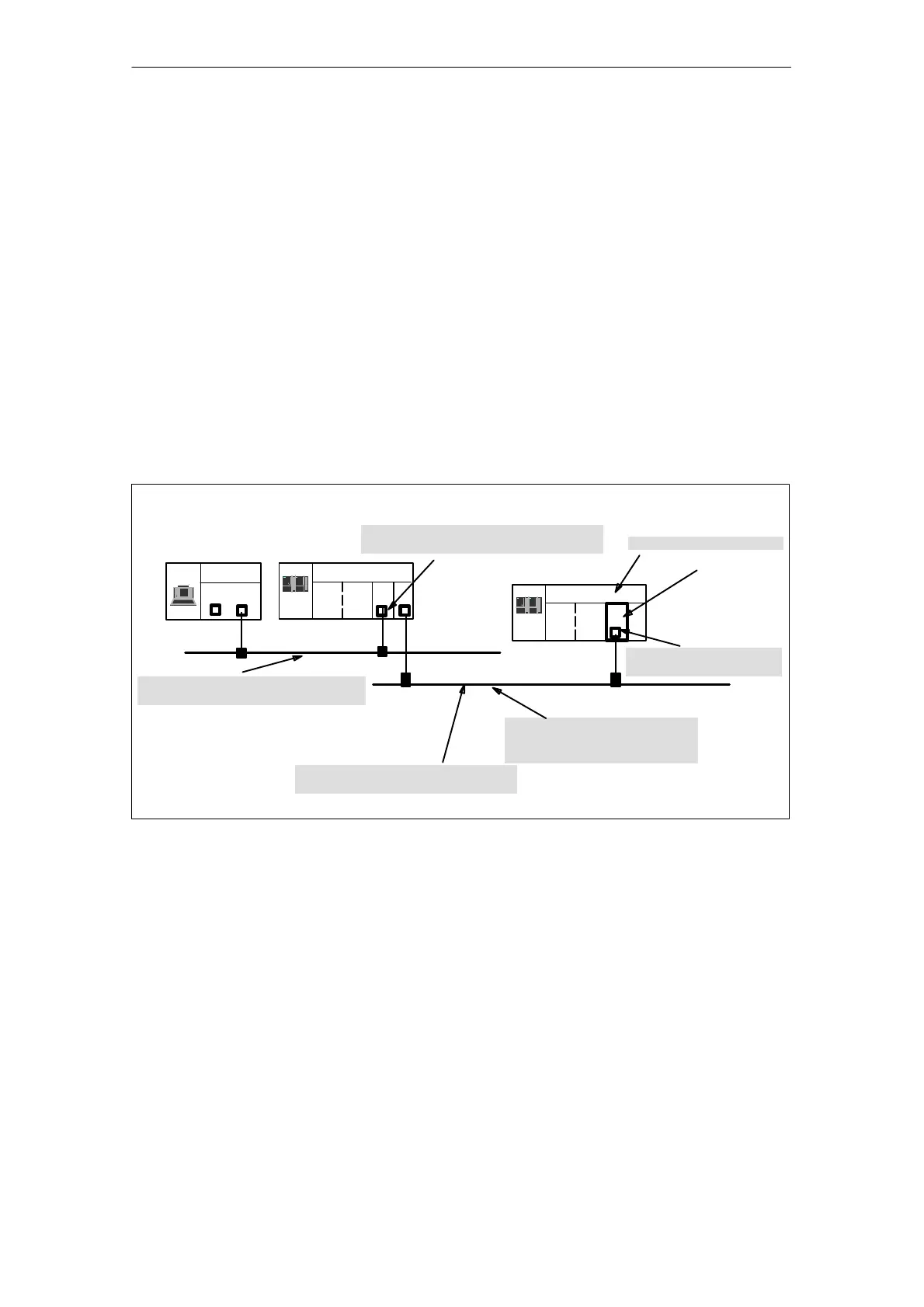

Figure 8-3 Example of the Parameter Settings for the Online Path with one Gateway
