Siemens Simatic S7-1500 User Manual

CPU 1512C-1 PN (6ES7512-1CK00-0AB0)
103 Manual, 09/2016, A5E35306440-AB
Parameters/address space
5
5.1
Address space of the analog on-board I/O
Address space of the analog input and output channels
The addresses are divided into five analog input channels and two analog output channels.
STEP 7 (TIA Portal) assigns the addresses automatically. You can change the addresses in
the hardware configuration of STEP 7 (TIA Portal), i.e. freely assign the start address. The
addresses of the channels are based on the start address.
"IB x" stands, for example, for the start address input byte x. "QB x" stands, for example, for
the start address output byte x.

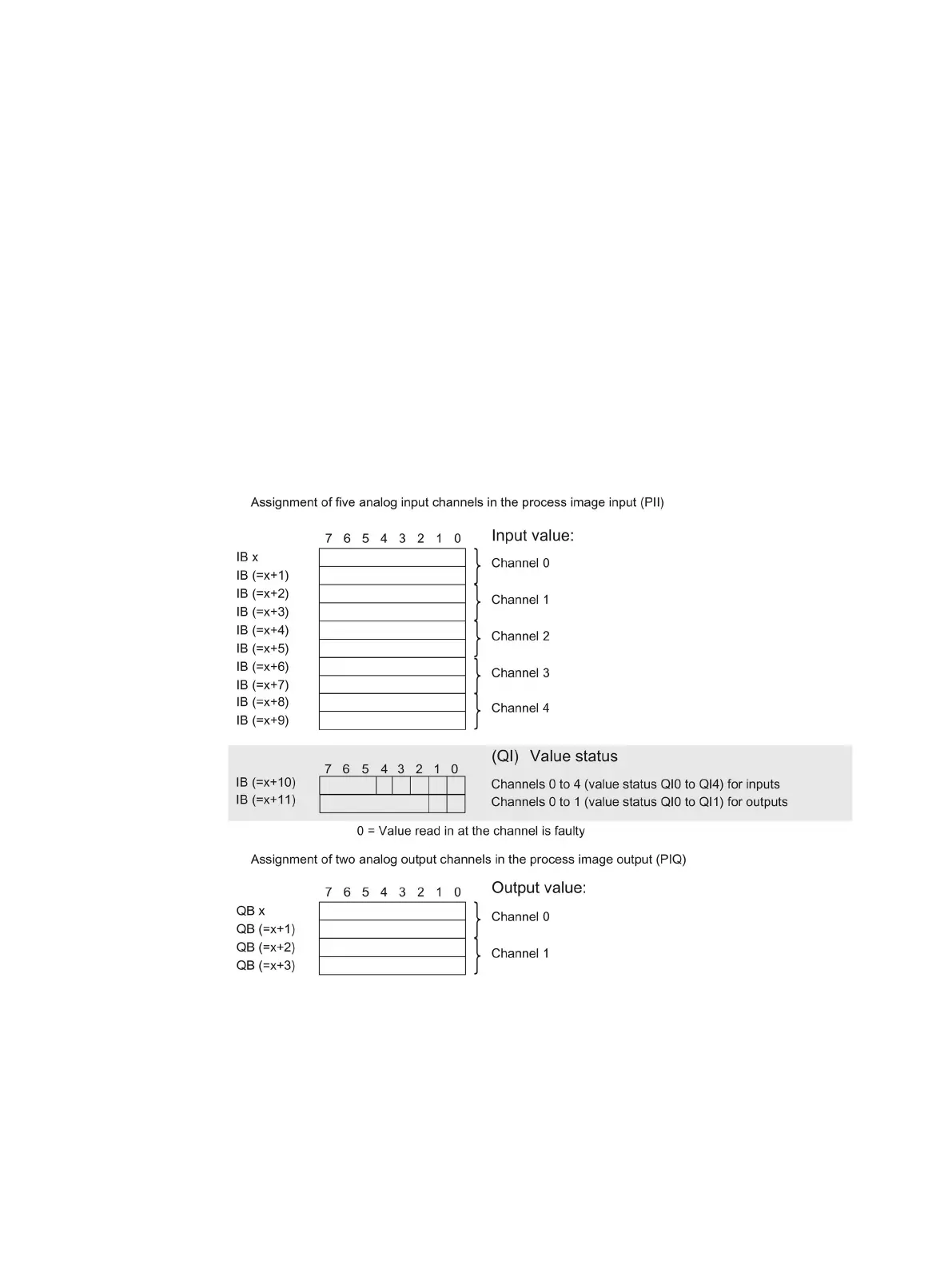

Figure 5-1 Address space seven-channel analog on-board I/O with value status

Siemens Simatic S7-1500 Specifications

General

Protection Class	IP20
Programming Language	LAD, FBD, STL, SCL, GRAPH
Communication Interfaces	PROFINET, PROFIBUS, Ethernet, OPC UA
Memory	Work memory and load memory (integrated or external memory card)
I/O Modules	Digital I/O, Analog I/O, Technology modules, Communication modules
Safety Integrated	Yes (with fail-safe CPUs and modules)
Redundancy	CPU redundancy possible with specific CPU types
Temperature Range	0°C to 60°C (horizontal installation)
Digital Inputs	Scalable through digital input modules
Digital Outputs	Scalable through digital output modules
Analog Inputs	Scalable through analog input modules
Analog Outputs	Scalable through analog output modules
Backplane	Integrated backplane for module connection
Real-time clock	Integrated real-time clock
CPU Type	Various models available (e.g., CPU 1511-1 PN, CPU 1513-1 PN, CPU 1515-2 PN, CPU 1517-3 PN, CPU 1518-4 PN/DP)
