Interrupts/diagnostics alarms
6.1 Status and error displays
CPU 1512C-1 PN (6ES7512-1CK00-0AB0)
120 Manual, 09/2016, A5E35306440-AB
6.1.3
Status and error displays of the digital on-board I/O
LED displays
The figure below shows an example of the LED displays (status and error displays) of the
first module of the digital on-board I/O. Corrective measures for diagnostics alarms can be
found in the section Interrupts and diagnostics of the digital on-board I/O (Page 125).

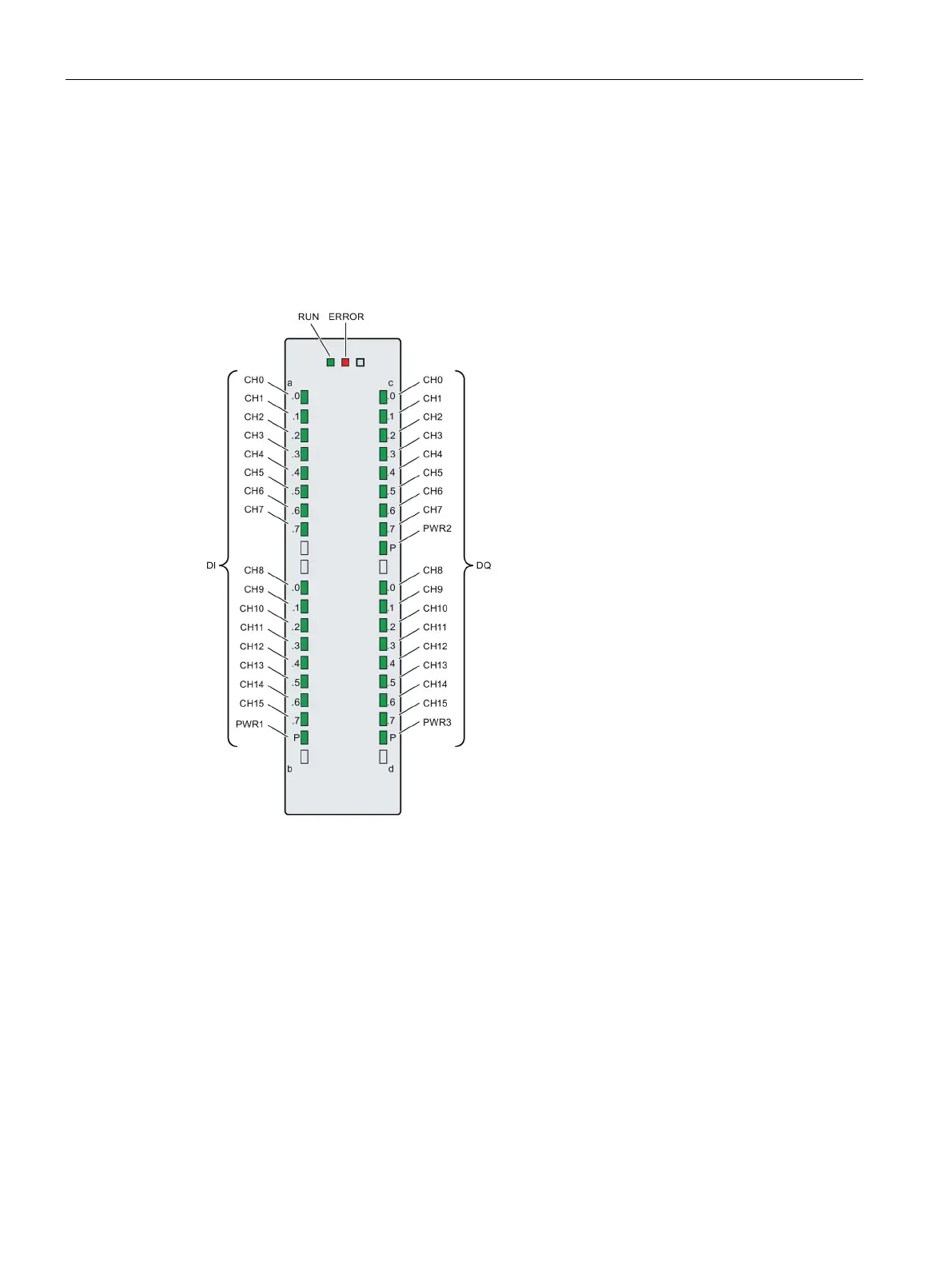

Figure 6-3 LED displays

Siemens Simatic S7-1500 Specifications

General

Protection Class	IP20
Programming Language	LAD, FBD, STL, SCL, GRAPH
Communication Interfaces	PROFINET, PROFIBUS, Ethernet, OPC UA
Memory	Work memory and load memory (integrated or external memory card)
I/O Modules	Digital I/O, Analog I/O, Technology modules, Communication modules
Safety Integrated	Yes (with fail-safe CPUs and modules)
Redundancy	CPU redundancy possible with specific CPU types
Temperature Range	0°C to 60°C (horizontal installation)
Digital Inputs	Scalable through digital input modules
Digital Outputs	Scalable through digital output modules
Analog Inputs	Scalable through analog input modules
Analog Outputs	Scalable through analog output modules
Backplane	Integrated backplane for module connection
Real-time clock	Integrated real-time clock
CPU Type	Various models available (e.g., CPU 1511-1 PN, CPU 1513-1 PN, CPU 1515-2 PN, CPU 1517-3 PN, CPU 1518-4 PN/DP)
