Siemens Simatic S7-1500 User Manual

Product overview
2.4 Operator controls and display elements
CPU 1512C-1 PN (6ES7512-1CK00-0AB0)
Manual, 09/2016, A5E35306440-AB
33
2.4.2
Front view without front panel on the CPU

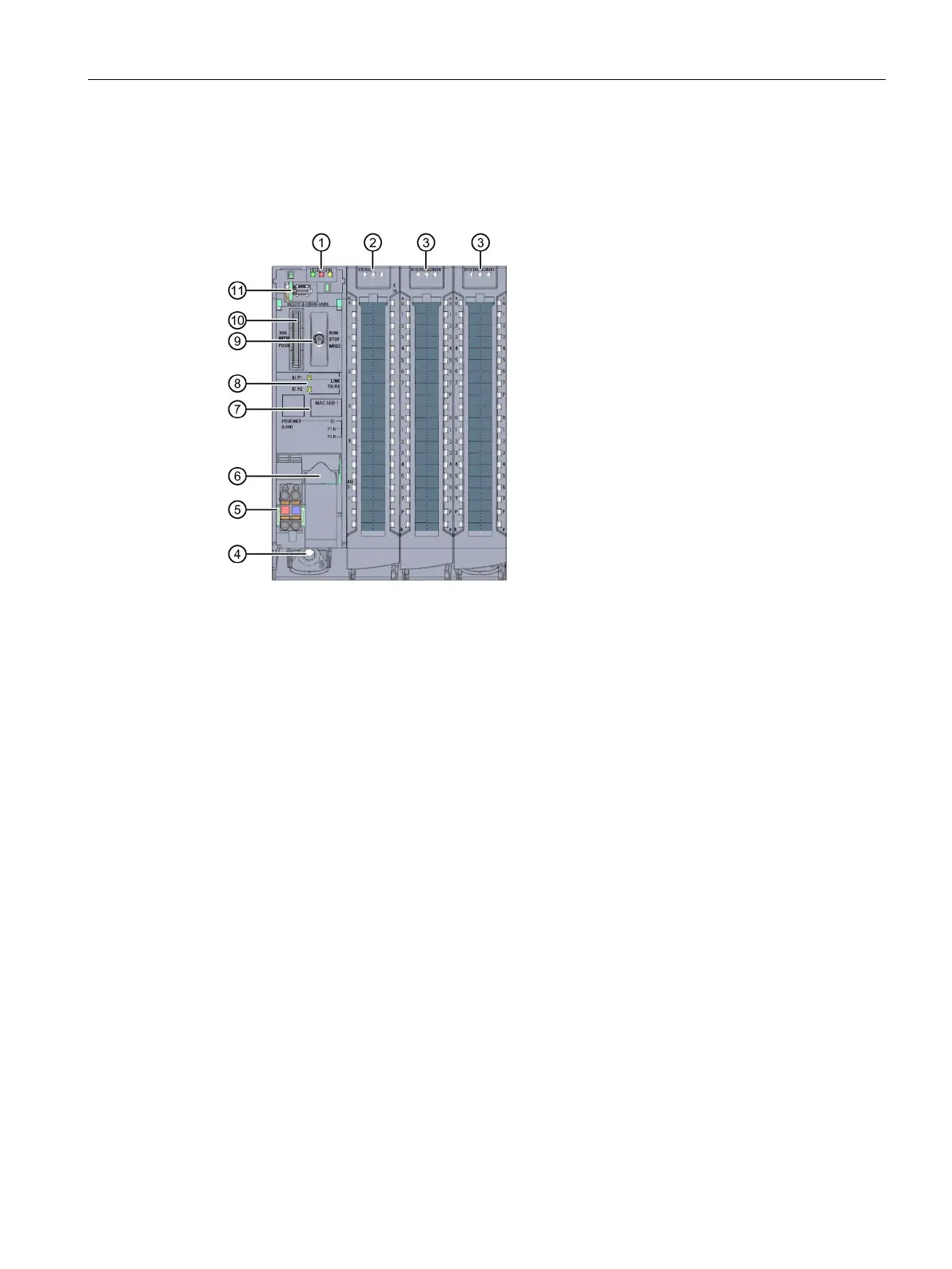

The following figure shows the operator control and connection elements of the
CPU 1512C-1 PN with the front cover of the CPU open.
①
LEDs for the current operating mode and diagnostics status of the CPU
②
Status and error displays RUN/ERROR of the analog on-board I/O
③
Status and error displays RUN/ERROR of the digital on-board I/O
④
Fastening screw
⑤
Connection for supply voltage
⑥
PROFINET interface (X1) with 2 ports (X1 P1 and X1 P2)
⑦
MAC address
⑧
LEDs for the 2 ports (X1 P1 and X1 P2) of the PROFINET interface X1
⑨
Mode selector
⑩
Slot for the SIMATIC memory card
⑪
Display connection
Figure 2-6 View of the CPU 1512C-1 PN without front panel on the CPU (front)

Siemens Simatic S7-1500 Specifications

General

Protection Class	IP20
Programming Language	LAD, FBD, STL, SCL, GRAPH
Communication Interfaces	PROFINET, PROFIBUS, Ethernet, OPC UA
Memory	Work memory and load memory (integrated or external memory card)
I/O Modules	Digital I/O, Analog I/O, Technology modules, Communication modules
Safety Integrated	Yes (with fail-safe CPUs and modules)
Redundancy	CPU redundancy possible with specific CPU types
Temperature Range	0°C to 60°C (horizontal installation)
Digital Inputs	Scalable through digital input modules
Digital Outputs	Scalable through digital output modules
Analog Inputs	Scalable through analog input modules
Analog Outputs	Scalable through analog output modules
Backplane	Integrated backplane for module connection
Real-time clock	Integrated real-time clock
CPU Type	Various models available (e.g., CPU 1511-1 PN, CPU 1513-1 PN, CPU 1515-2 PN, CPU 1517-3 PN, CPU 1518-4 PN/DP)
