Parameter assignment / addressing
3.2 Creating a project and configuring the communication
SIMOTION D410
48 Commissioning Manual, 02/2012
3.2.2 Configuring the properties of the PROFINET interface
Procedure
After you have closed the "Insert SIMOTION device" dialog box by pressing "OK", the
"Properties - Ethernet interface" dialog box is opened on a D410 PN.
If you are using the PROFINET interface, set the interface properties in the "Properties -
Ethernet interface" dialog box.

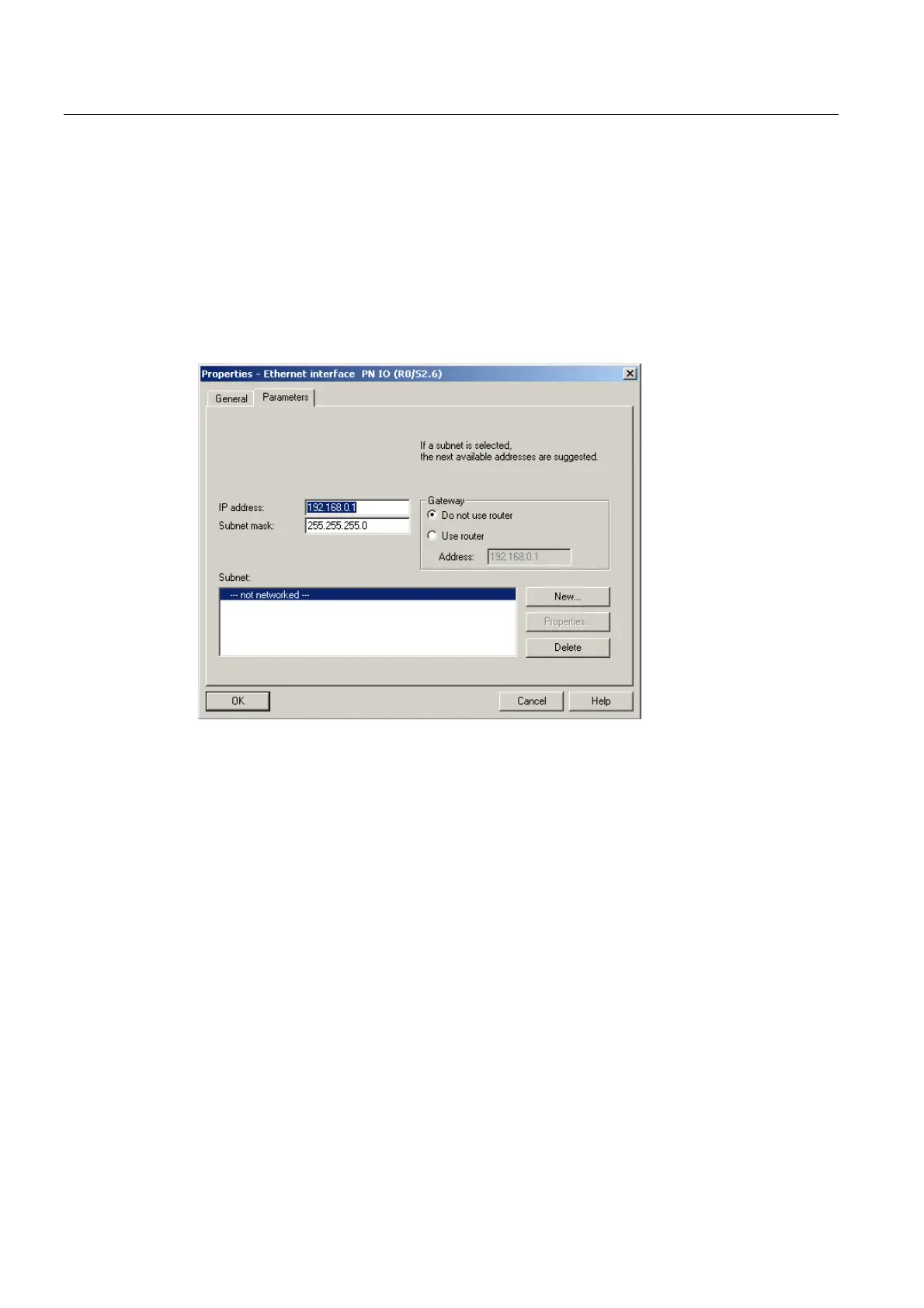

Figure 3-2 Properties of the Ethernet interface
Program the following parameters in the "Properties - Ethernet Interface" dialog box:
1. Click "New".
The "New Subnet Industrial Ethernet" dialog box opens. Rename the new subnet, or
accept the default name by clicking "OK".
2. Select the new Ethernet subnet which is now displayed in the "Properties - Ethernet
Interface" dialog box.
3. Define your addresses in the "IP address" and "Subnet mask" fields of the "Properties -
Ethernet Interface" dialog box. Change to the "Network node" field and define whether
you are going to use a router and, if yes, enter the router address. Confirm with "OK".
