Commissioning (software)
4.3 Performing an online configuration
SIMOTION D410
Commissioning Manual, 02/2012
89
Result
The DRIVE-CLiQ components loaded to the user project by means of automatic
configuration are displayed in the project navigator.

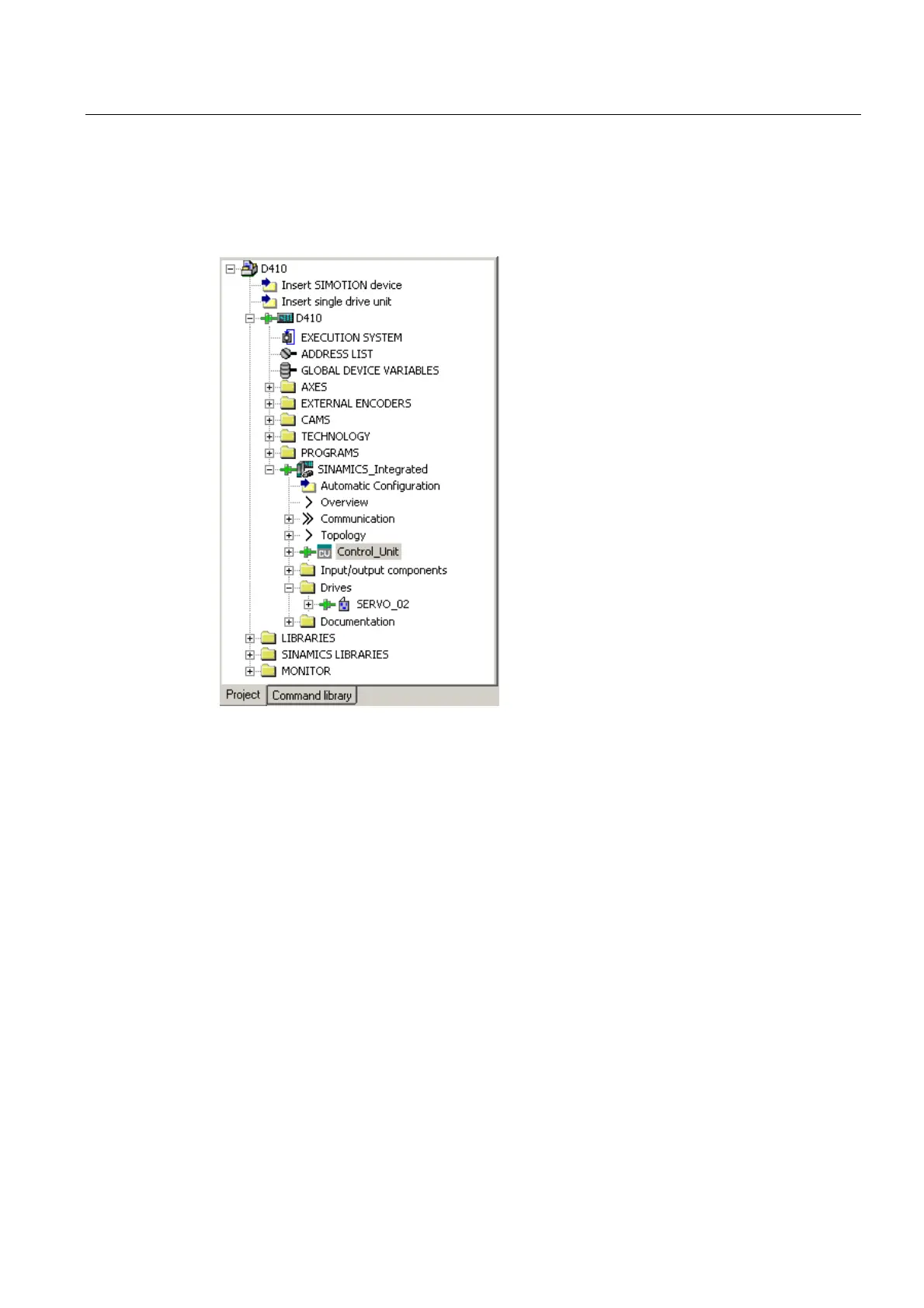

Figure 4-13 Project Navigator with the downloaded DRIVE-CLiQ components
You must then
● If required, reconfigure SINAMICS components (e.g. components without a DRIVE-CLiQ
interface, such as an encoder connected to the onboard encoder interface).
● Assign the "TO axis" to "Drive".
See also
Editing SINAMICS components (Page 89)
4.3.4 Editing SINAMICS components
Prerequisites
● You have uploaded all connected DRIVE-CLiQ components to the user project.
● You shut down the connection to the target system (offline mode).
