Commissioning
4.3 Creating a STEP 7 project
Connecting SIMOVERT MASTERDRIVES MC to the Technology-CPU
20 Product Information, 03/2008, A5E00272072-05

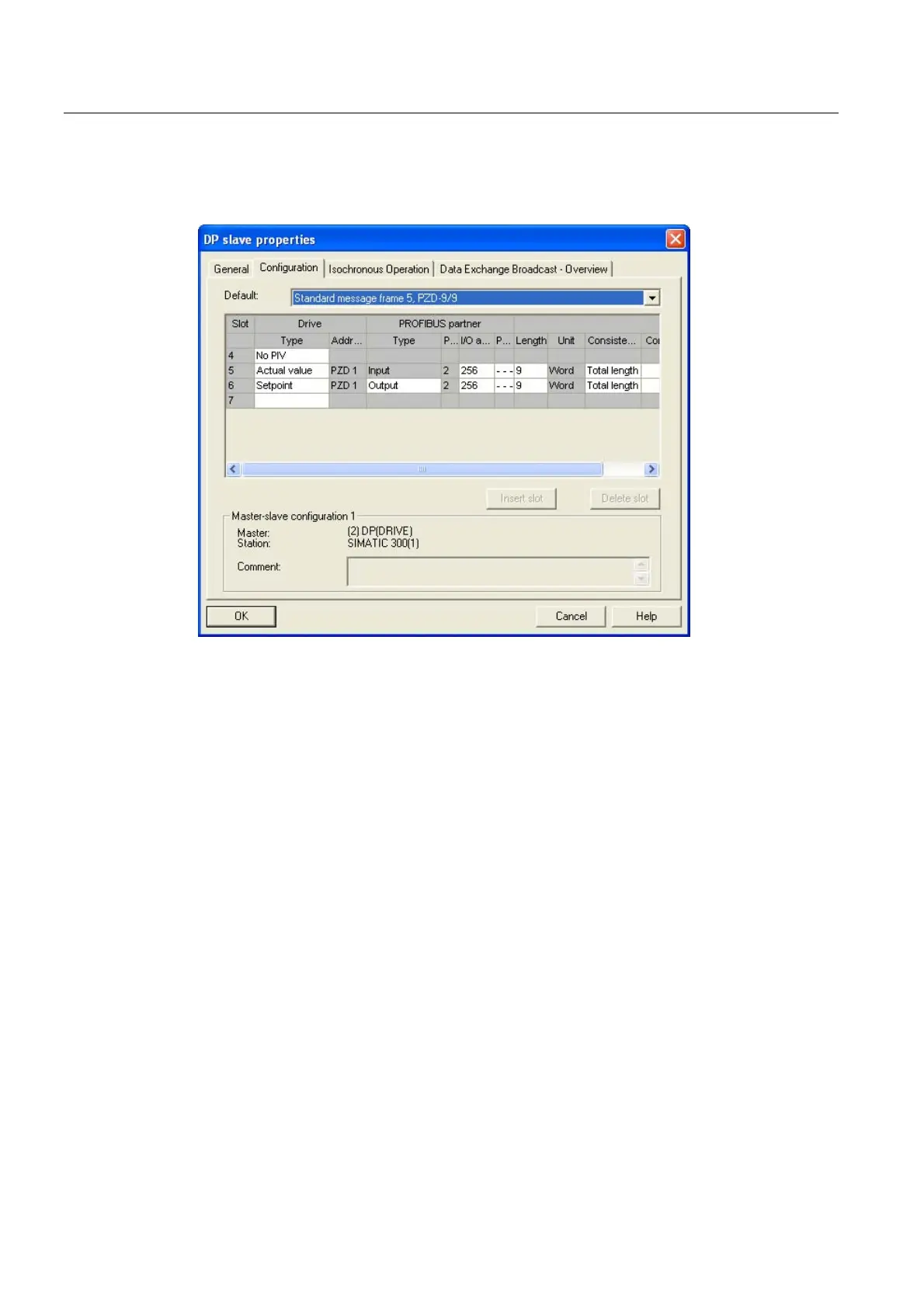

● In the Configuration tab of the DP Slave Properties window, select the pre-assignment of
the Standard message frame 5:
Figure 4-7 Setting standard telegram 5 at the slave

Siemens SIMOVERT MASTERDRIVES MC Series Specifications

General

Control Method	Vector Control (Sensorless/Sensor), V/f Control
Input Voltage	380-480 V AC
Output Power Range	0.55 kW to 710 kW
Communication Interfaces	PROFIBUS DP, CANopen, USS protocol
Cooling Method	Air-cooled
Protection Class	IP20
Application	Conveyor systems

Summary

Definitions and Warnings

Qualified Personnel

Defines qualified personnel for device setup and operation.

Hardware Requirements

Converter

Details hardware requirements for the converter unit.

Software Requirements

Converter

Specifies software requirements for the converter.

Upgrading the Software

Provides steps to upgrade the converter's firmware.

Commissioning

Commissioning Procedure

Outlines the general steps for commissioning the system.

Table of the Settings

Presents a table for required commissioning settings.

Creating a STEP 7 Project

Guides through creating a project in STEP 7.

Basic Commissioning of MASTERDRIVES MC

Details the fundamental setup steps for the MASTERDRIVES MC.

Connect MASTERDRIVES MC to the Technology-CPU

Explains how to establish the connection between MC and the Technology CPU.

MASTERDRIVES MC Commissioning Tool

Communication via DRIVE ES

Describes communication setup using DRIVE ES.

Communication via Drive Monitor

Describes communication setup using Drive Monitor.
