Siemens SINUMERIK 802C User Manual

Installing the Control System
2.1 Installing and removing the SINUMERIK 802C
2-17
SINUMERIK 802C
6FC5 597–3AA20–0BP2 (01.02)
Mounting dimensions
The dimensions shown below are important for installing the control components:
F
A
482
15
200
80
250
170
8 234
8
154
4,8
Mounting Holes
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
SubD
45
80
120
20
40
40
300
142
142 8
57,2
32,5
125
DC24V X1
ERR
DIAG
POK
L+
M
L+
M
X2003 X2005
X2004 X2006
0
1
2
3
4
5
6
7
M
L+
0
1
2
3
4
5
6
7
M
8
9
10
11
12
13
14
15
M
L+
8
9
10
11
12
13
14
15
M
IN
OUT
RS232
X2
SPINDLE
X5
ENCODER3
X6
OPI
X8
AXIS
X7
X10
MPG
DI
X20
ENCODER2
X4
ENCODER1
X3

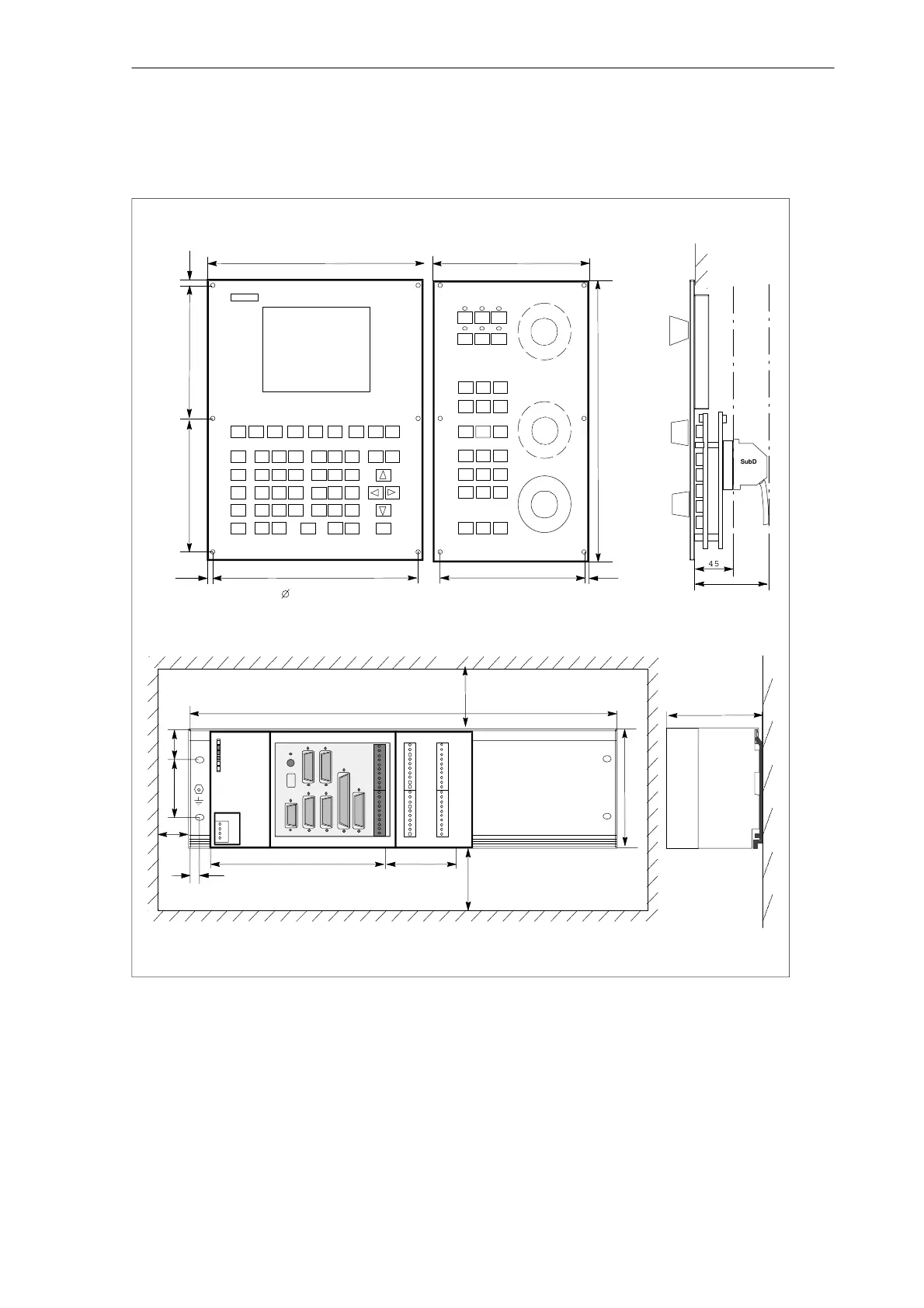

Fig. 2-1 Mounting dimensions for SINUMERIK 802C
