Siemens SITOP PSU200M 6EP1333-3BA10 User Manual

Description, device design, dimension drawing
2.4 Status displays and signaling
SITOP modular 1ph/2ph
Manual, 04.2018, C98130-A7548-A1-4-7629
13
2.4
Status displays and signaling
6EP1333-3BA10 (24 V/5 A)
6EP1334-3BA10 (24 V/10 A)
6EP1336-3BA00 (24 V/20 A)
6EP1337-3BA00 (24 V/40 A)
Status indicator Green LED for 24 V O.K.
Yellow LED for overload in "constant current" mode
Red LED for latching shutdown in "shut down" mode
Signaling contact 13, 14 ⑩
Relay contact (NO contact, contact rating
(isolated) 24 V AC/0.1 A; 30 V DC/0.1 A) for
24 V O.K
Remote switch off when using the signaling
module (6EP1961-3BA10)

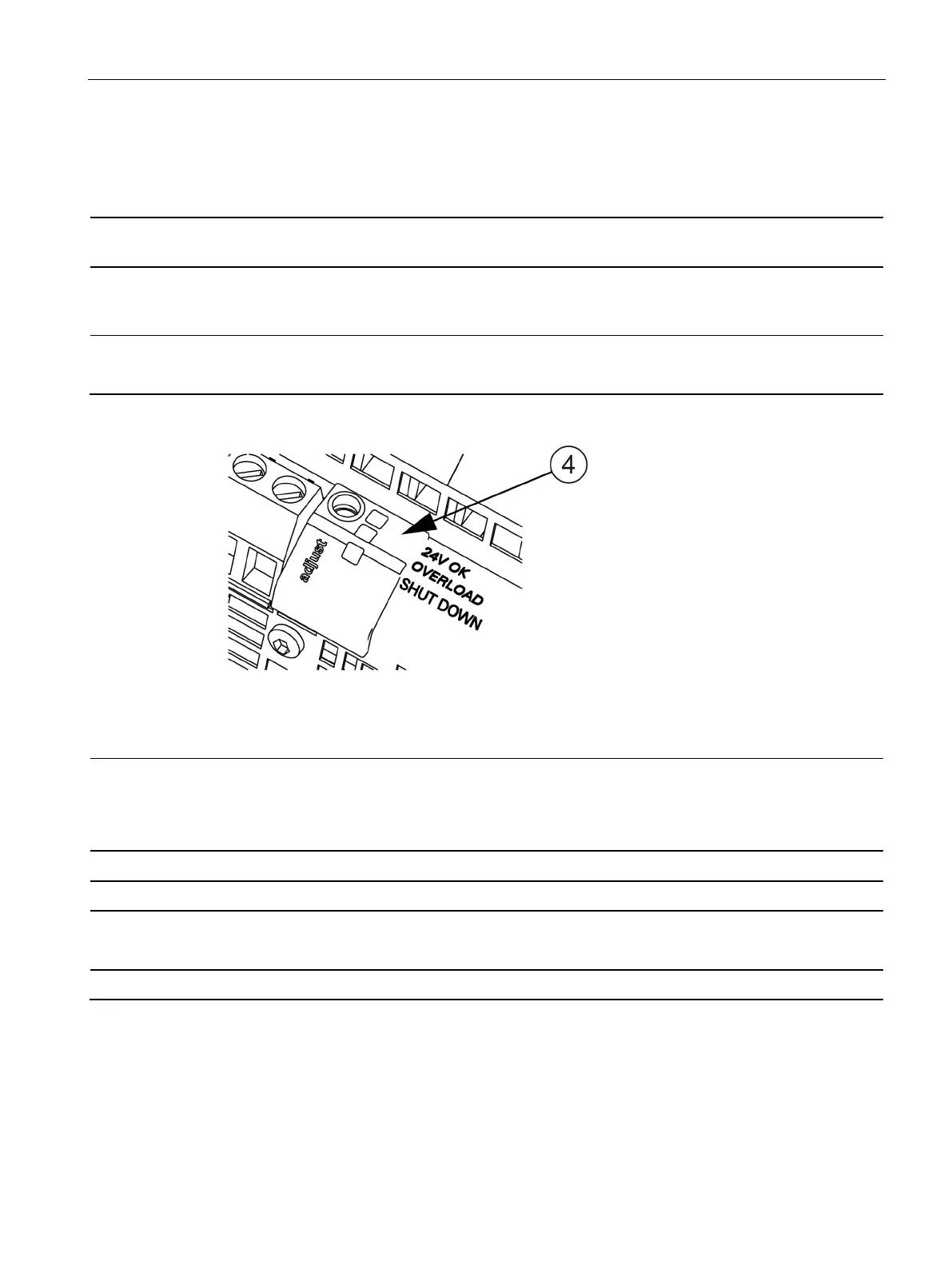

Figure 2-6 Status indicators and signals (example of 6EP1337-3BA00)
Signaling
6EP1333-3BA10 (24 V/5 A)
6EP1334-3BA10 (24 V/10 A)
6EP1336-3BA00 (24 V/20 A)
6EP1337-3BA00 (24 V/40 A)
Green LED
④
lights up
Normal operation, output voltage > 20 V ±0.5 V
Yellow LED
④
lights up
Overload (U
out
< 20 V ± 0.5 V)
Red LED
④
lights up
Latching shutdown
or remote switch-off for 6EP1336-3BA00 and 6EP1337-3BA00 (only when the supplemen-
tary signaling module 6EP1961-3BA10 is used)
Green LED
④
off
No supply voltage
