Description, device design, dimension drawing
2.7 Dimensions and weight
SITOP modular 1ph/2ph
18 Manual, 04.2018, C98130-A7548-A1-4-7629
2.7
Dimensions and weight

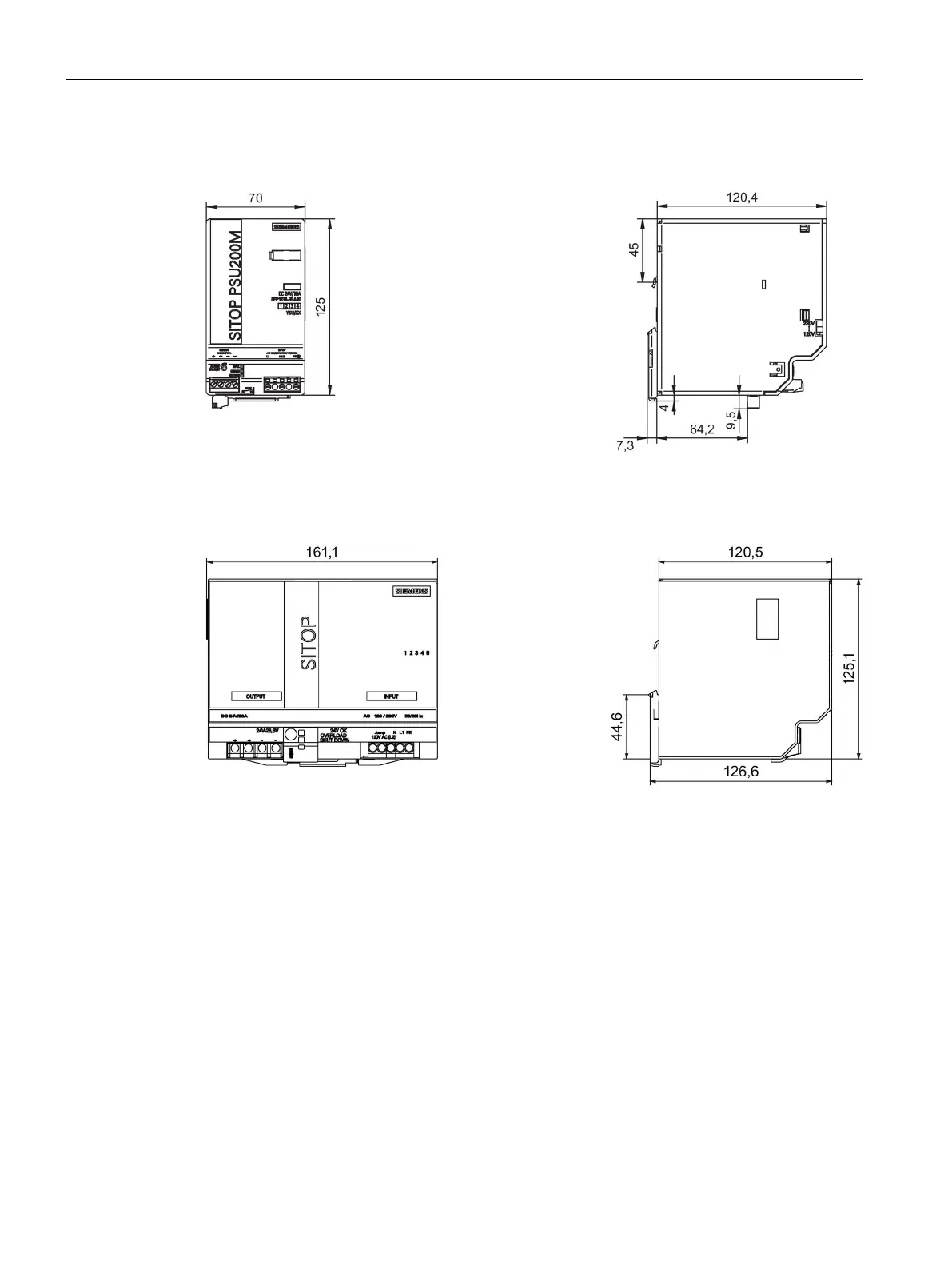

Figure 2-12 Dimension drawing, 6EP1333-3BA10 and 6EP1334-3BA10 (example, 6EP1334-3BA10)
Figure 2-13 Dimension drawing for 6EP1336-3BA00
