Mounting position, mounting clearances
4.2 Other mounting positions
SITOP modular 1ph/2ph
Manual, 04.2018, C98130-A7548-A1-4-7629
27
4.2.2
6EP1334-3BA10

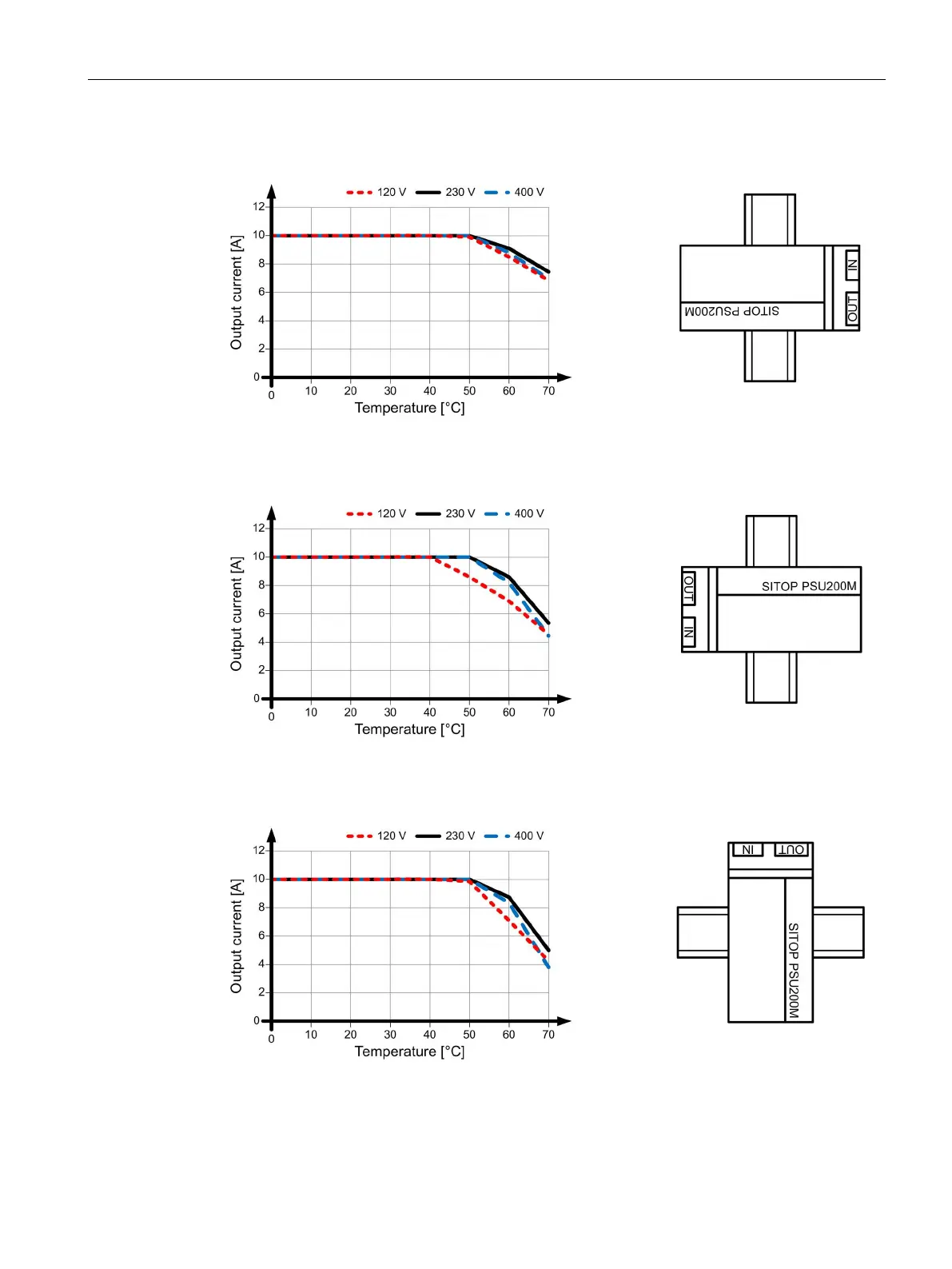

Figure 4-11 6EP1334-3BA10 mounting position (1)
Figure 4-12 6EP1334-3BA10 mounting position (2)
Figure 4-13 6EP1334-3BA10 mounting position (3)
