Description, device design, dimension drawing
2.6 Block diagram
SITOP modular 1ph/2ph
16 Manual, 04.2018, C98130-A7548-A1-4-7629
2.6
Block diagram

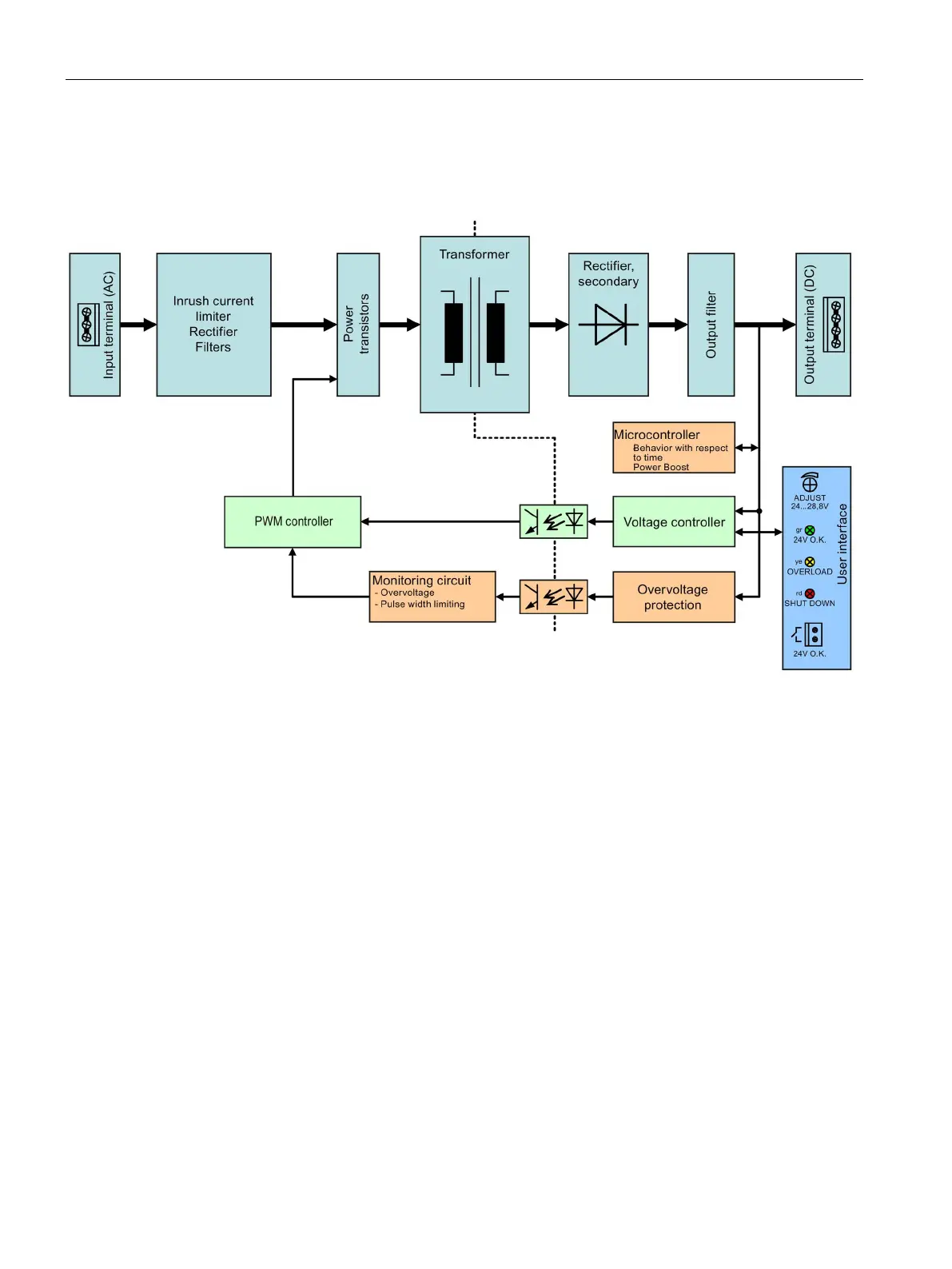

Figure 2-10 Block diagram for 6EP1333-3BA10 and 6EP1334-3BA10
