Siemens SITOP PSU200M 6EP1333-3BA10 User Manual

SITOP modular 1ph/2ph
Manual, 04.2018, C98130-A7548-A1-4-7629
9
Description, device design, dimension drawing
2
2.1
Device description
SITOP modular is a primary-clocked power supply for connection to a 1-phase/2-phase AC
line supply. An electronically regulated DC voltage that can be set via a potentiometer is
available at the output of the device. The output of the device is isolated, no-load proof and
short-circuit proof. The LED displays indicate the operating state. The integrated signaling
contact (for 6EP1336-3BA00 and 6EP1337-3BA00, only when using the supplementary
6EP1961-3BA10 signaling module) can be used to further process the operating state of the
device.

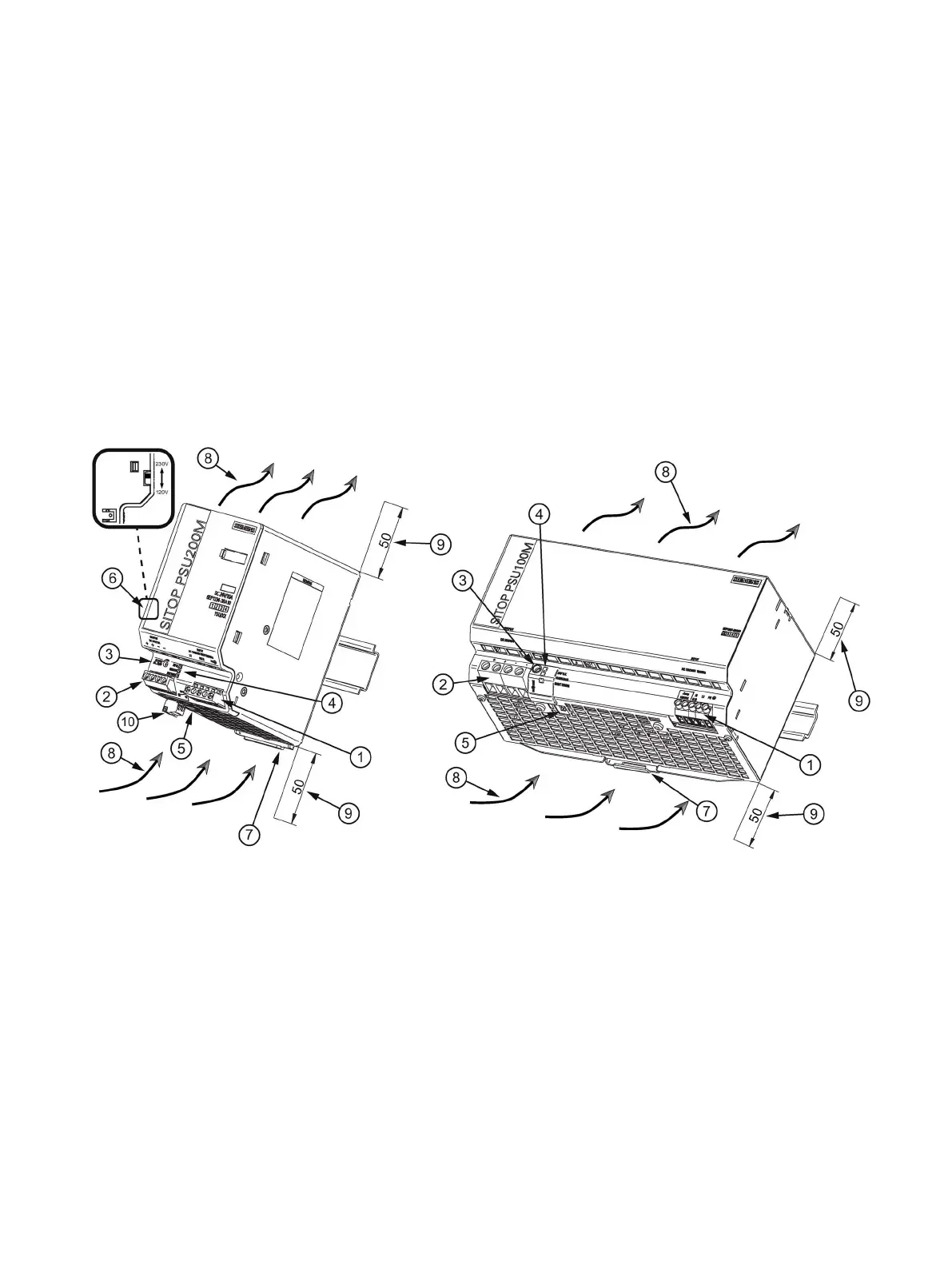

①
Line input
②
DC output
③
24 - 28.8 V potentiometer
④
Pilot lamps (24 V OK, OVERLOAD, SHUTDOWN)
⑤
A/B selector switch
⑥
Voltage selector switch (only for 6EP1333-3BA10 and 6EP1334-3BA10)
⑦
DIN rail slider
⑧
Natural convection
⑨
Clearance above/below
⑩
Signaling contact (only for 6EP1333-3BA10 and 6EP1334-3BA10)
Figure 2-1 Design (example, 6EP1334-3BA10 and 6P1337-3BA00)
