Singer 20U109 User Manual

8
Zigzag Sewing Machine | Instruction Manual and Parts List
3.3
Belt Cover
Installation

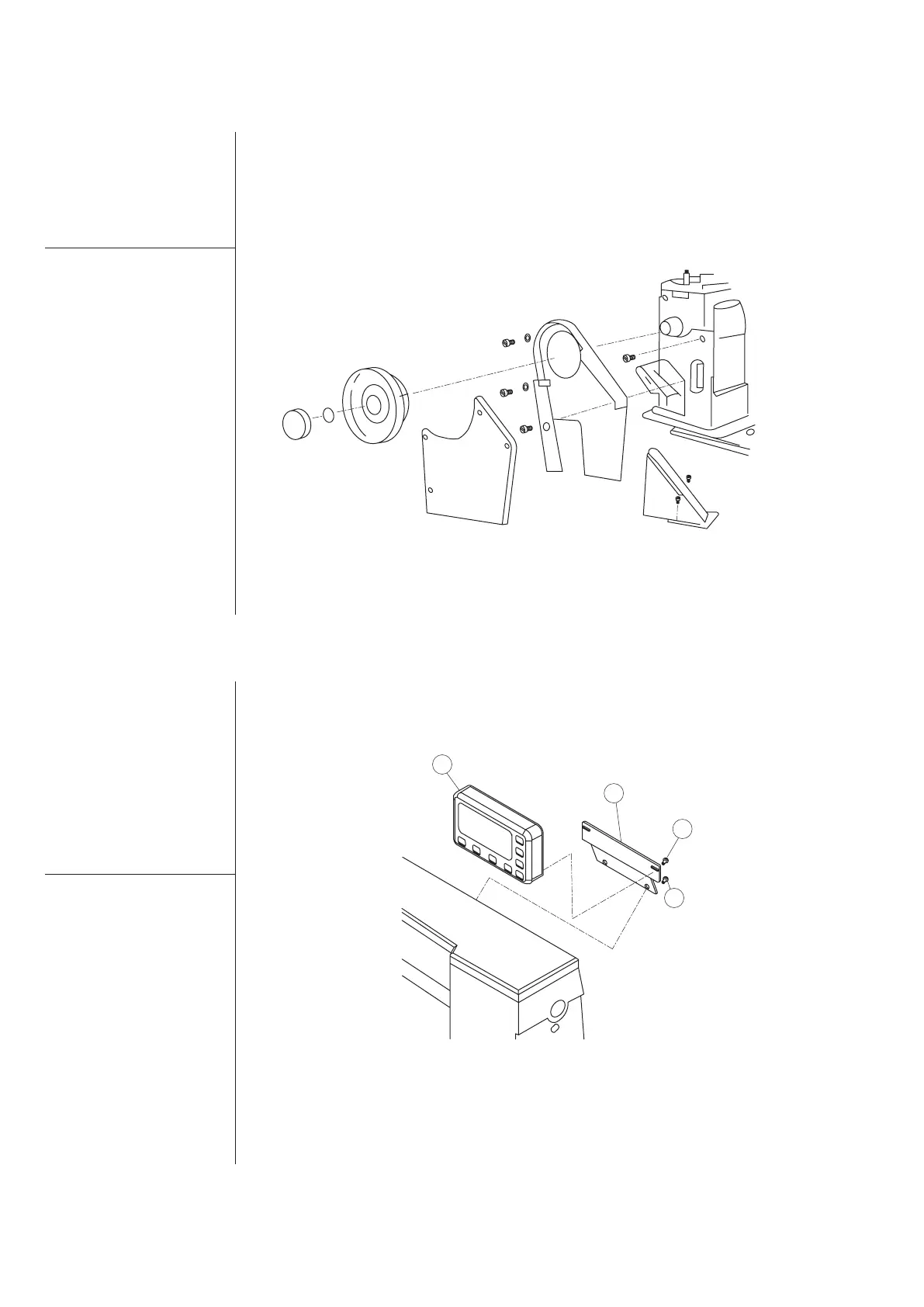

Figure 5
The machine belt cover
Install the machine belt cover so
that the hand wheel and v-belt
move freely without interference,
and then tighten the screw at this
position (see Figure 5).
The motor belt cover
Install the motor belt cover so that
motor pulley and v-belt will rotate
freely without interference.
Caution
Switch off the
machine.
Set sewing head
upright again
using both hands.
Danger of crush-
ing between
sewing head and
table top.
For your safety,
do not run the
machine without
the belt cover.
3.4
Operation
Panel
Installation
(for 20E-910
only)
Figure 6
Install the operation panel ’1’ to the
bracket ‘2’ by two screws ‘3’.
Then the operation panel with the
bracket is attached into the machine
by setscrew ‘4’.
1
2
3
4
