23
Zigzag Sewing Machine | Instruction Manual and Parts List
3.23
Spool Cap
Usage

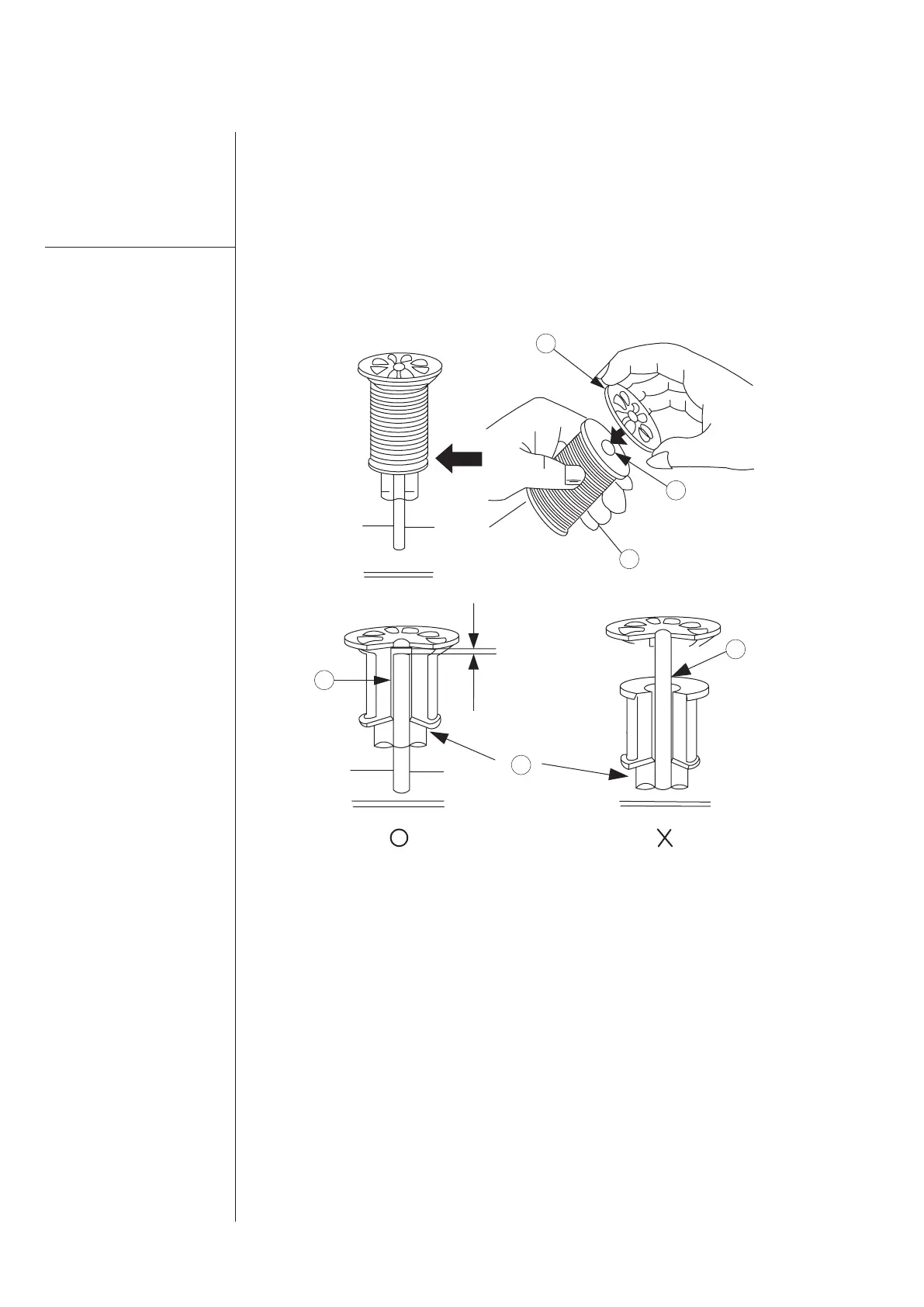

Figure 32
2 mm
1
2
3
4
5
5
When using a reel type thread spool
‘2’, fit the spool cap ‘1’ onto the
thread spool hole ‘3’, which is sup-
plied by the machine accessory.
Set the height of thread spool
holder ‘4’ so there is approximately
2.0 mm clearance between top end
of spool pin ‘5’, and the tip of the
slotted spigot of the spool cap ’1’.
The spool cap ’1’ should never be
fitted on the spool pin ‘5’. Forcing it
onto the spool pin may result in
breaking the slotted spigot of the
spool cap.
