Singer 20U109 User Manual

34

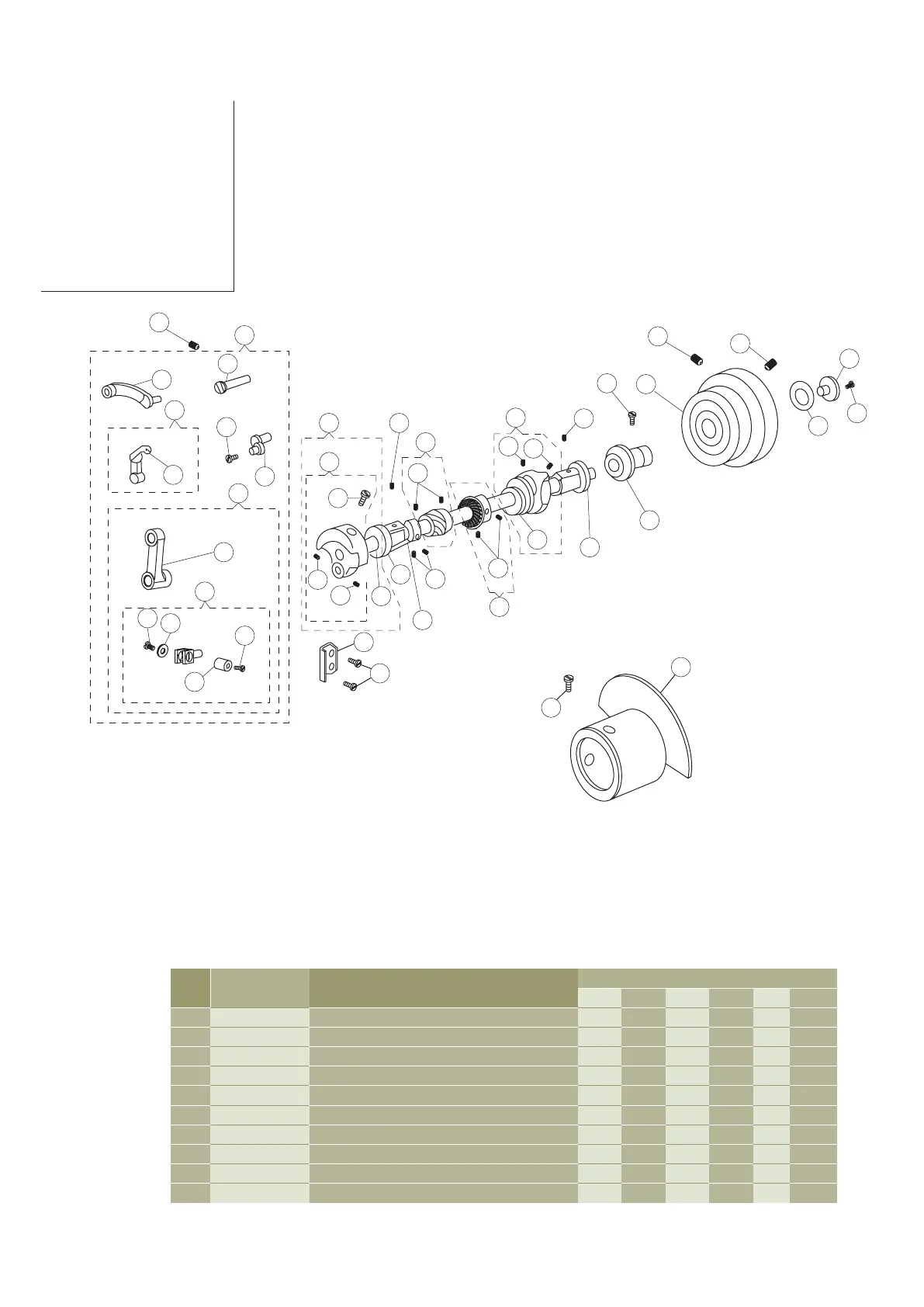

Zigzag Sewing Machine | Instruction Manual and Parts List
6.2
Thread
Take-up, Arm
Shaft and
Handwheel
Components
1
2
3
4
7
8
5
6
14
9
11
12
13
10
24
15
19
20
21
22
18
17
16
23
26
29
30
27
28
25
34
31
32
33
44
35
39
40
41
42
42
38
37
36
43
46
45
109 109C 112 112C 309 910
1 606640 Thread take-up assembly 1 1 1 1 1 1
2 606475 Thread take-up 1 1 1 1 1 1
3 606474 Thread take-up eyelet 1 1 1 1 1 1
4 606641 Thread take-up lever link 1 1 1 1 1 1
5 606471 Needle bar connecting link cap screw 1 1 1 1 1 1
6 606642 Needle bar connecting link assembly 1 1 1 1 1 1
7 606472 Needle bar connecting link 1 1 1 1 1 1
8 606466 Needle bar connecting stud assembly 1 1 1 1 1 1
9 606468 Set screw 1 1 1 1 1 1
10 606464 Needle bar connecting hinge pin screw 1 1 1 1 1 1
No. Part No. Description
Qty

Singer 20U109 Specifications

General

Brand	Singer
Model	20U109
Category	Sewing Machine
Language	English
