Singer 20U109 User Manual

54
Zigzag Sewing Machine | Instruction Manual and Parts List
6.12

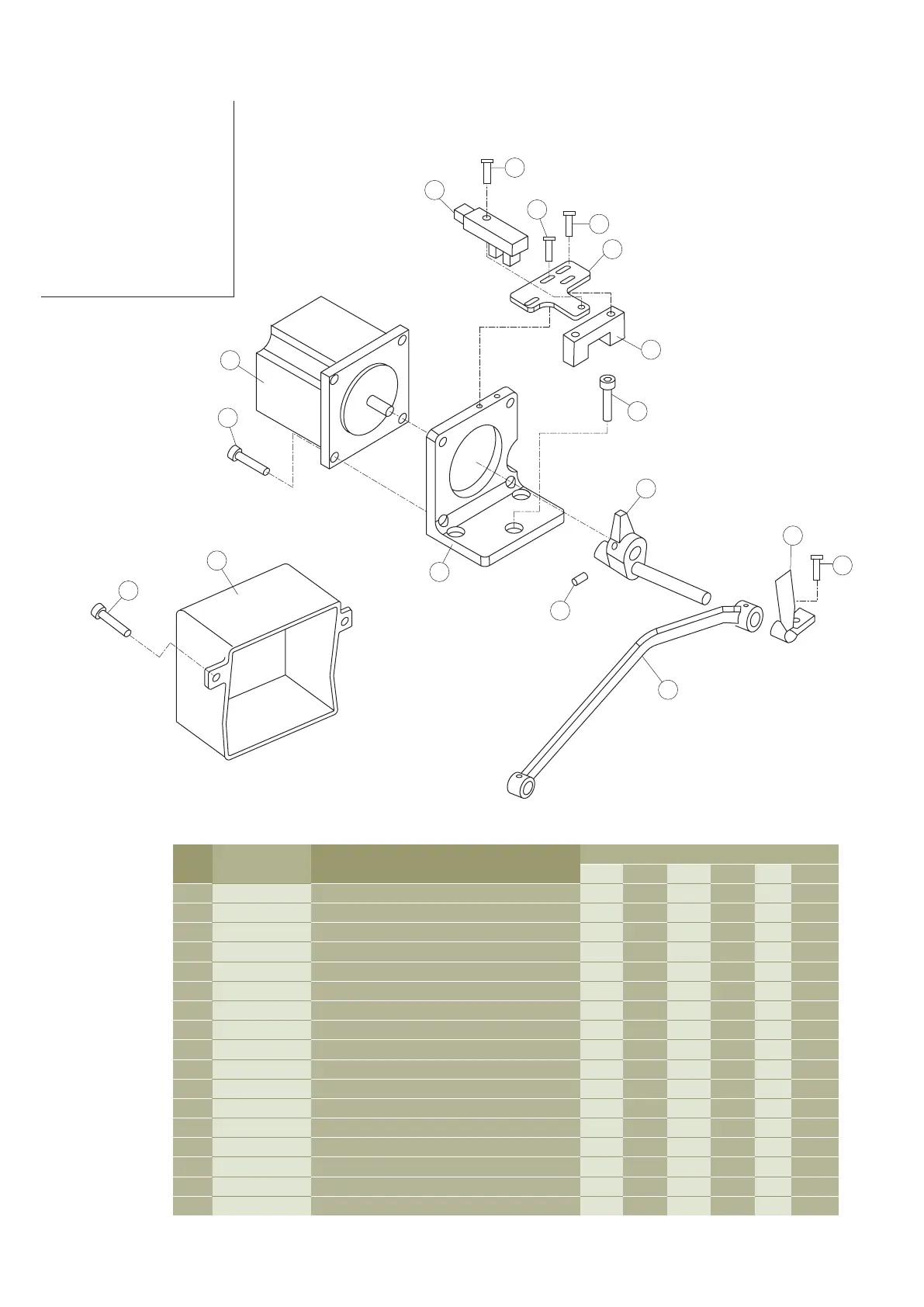

Needle Bar
Vibration
Components
for 20E-910
only
1
2
3
4
7
8
5
6
14
9
11
12
13
10
15
17
16
109 109C 112 112C 309 910
1
W34
Screw 000002
2
53C/5-12
Needle bar vibrating motor cover 0 0 0 0 0 1
3
GB/T70.1-2000
Screw 000001
4
53C/5-8
Needle bar vibrating pulse motor 0 0 0 0 0 2
5
53C/5-7
Needle bar vibrating motor frame 0 0 0 0 0 1
6
50020029
Screw 000003
7
53C/5-2
Needle bar vibrating base 0 0 0 0 0 1
8
50031003
Screw 000004
9 53C/5-1 Fork of horizontal needle 0 0 0 0 0 1
10
53C/5-4
Needle bar vibrating shade 0 0 0 0 0 1
11
50020029
Screw 000001
12
53C/5-14
Limiting stopper of needle bar vibrating sensor 000001
13
53C/5-5
Mounting plate of needle bar vibrating sensor 000001
14
53C/5-15
Screw 000002
15
500B0015
Screw 000001
16
53C/5-9
Needle bar vibrating sensor 0 0 0 0 0 1
17
10.2-37
Screw 000001
No. Part No. Description
Qty
