Zigzag Sewing Machine | Instruction Manual and Parts List

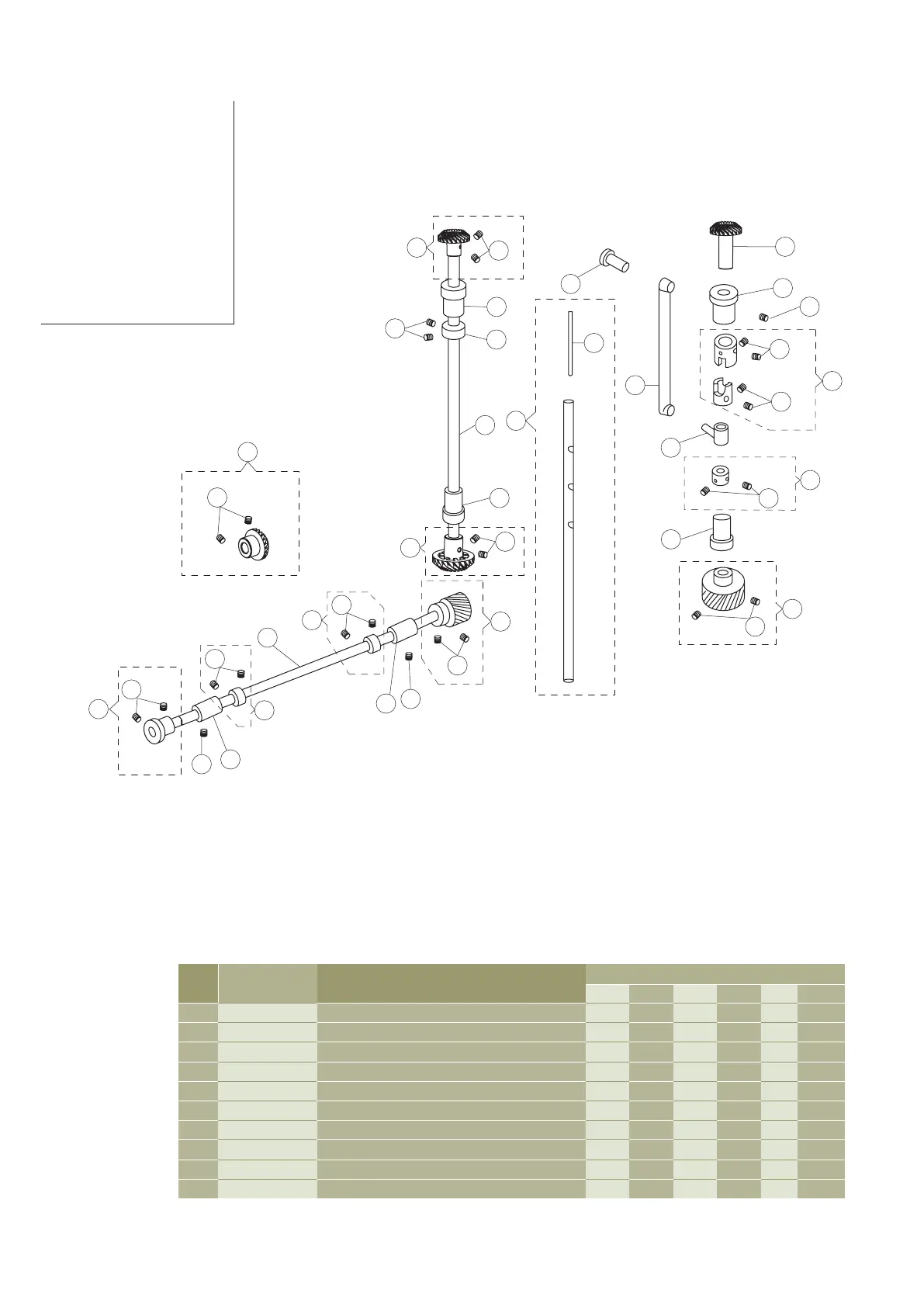

6.6
Arm Shaft
(upright) and
Rotating
Hook Drive
Shaft
Components
1
2
3
4
7
8
5
5
6
14
9
11
12
13
10
24
15
19
20
21
22
18
17
16
23
26
29
29
30
27
28
28
25
25
34
31
32
33
35
36
109 109C 112 112C 309 910
1 541610 Bevel gear assembly (upper) 1 1 0 0 1 1
2 504101 Bevel gear set screw 2 2 0 0 2 2
3 606677 Arm shaft bushing (upper) 1 1 0 0 1 1
4606678 Armshaft(upright) 110011
5 606527 Upright bushing (lower) 1 1 1 1 1 1
6 541609 Bevel gear assembly (lower) 1 1 0 0 1 1
7 504101 Bevel gear set screw 2 2 0 0 2 2
8 606585 Connection screw 0 0 1 1 0 0
9 606536 Hook advance crank connecting rod 0 0 1 1 0 0
10 606535 Bevel gear (upper) 0 0 1 1 0 0
No. Part No. Description
Qty
