3.5
The connecting
the connectors
to the control
box
(for 20E-910 only)
Figure 7

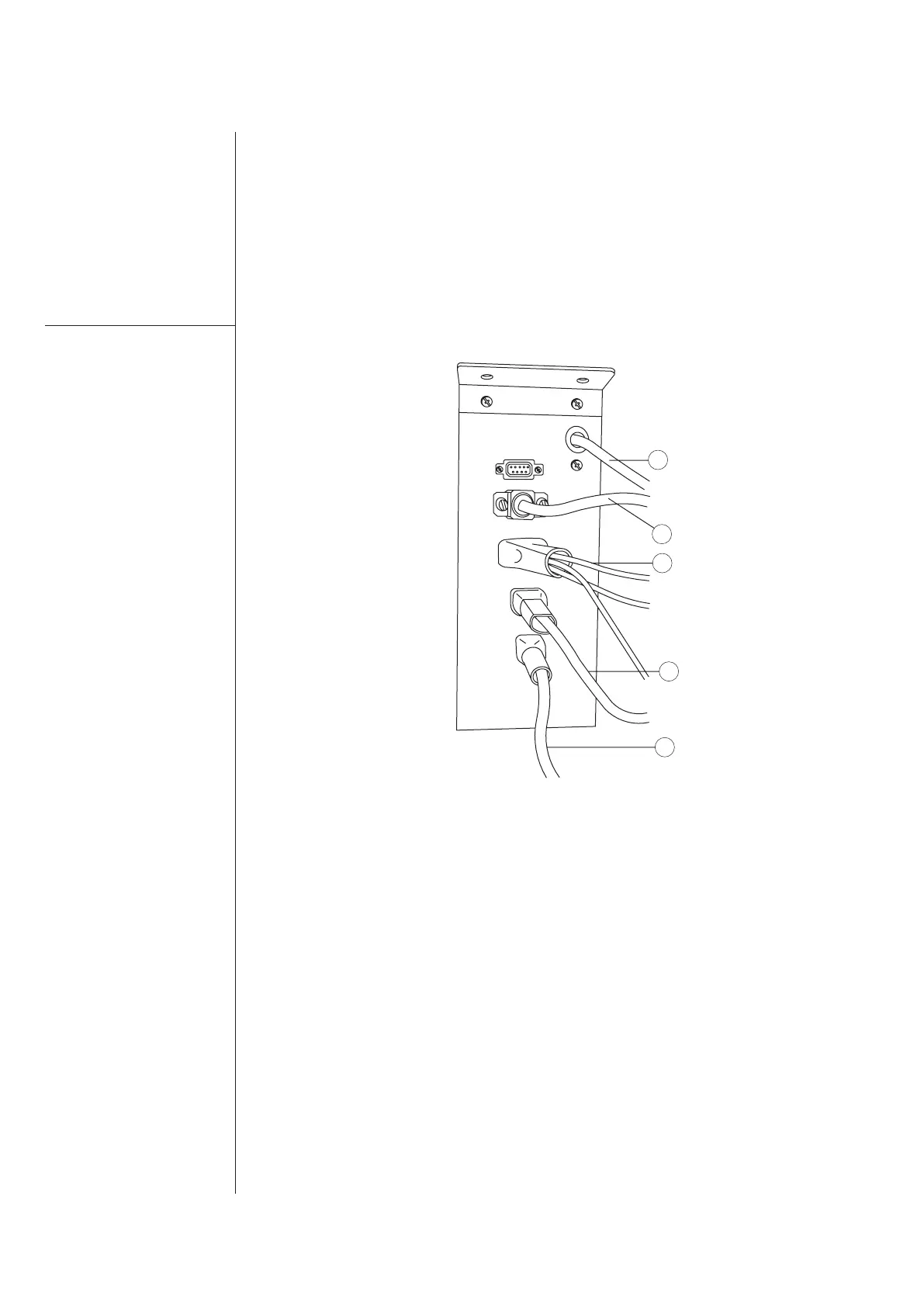

Installations of the connecting connector refer on Figure 7.
1. Sensor cord connector
2. Feed step motor cord connector
3. Needle vibration step motor cord connector
4. Power supply cord connector
5. Operation panel cord connector
Note
Each connector
has the inserting
direction. Check
the direction and
securely insert it.
The sewing
machine fails to
work if the
connectors are
not properly
inserted.
1
2
3
4
5
To Next Page
