Singer 20U109 User Manual

32

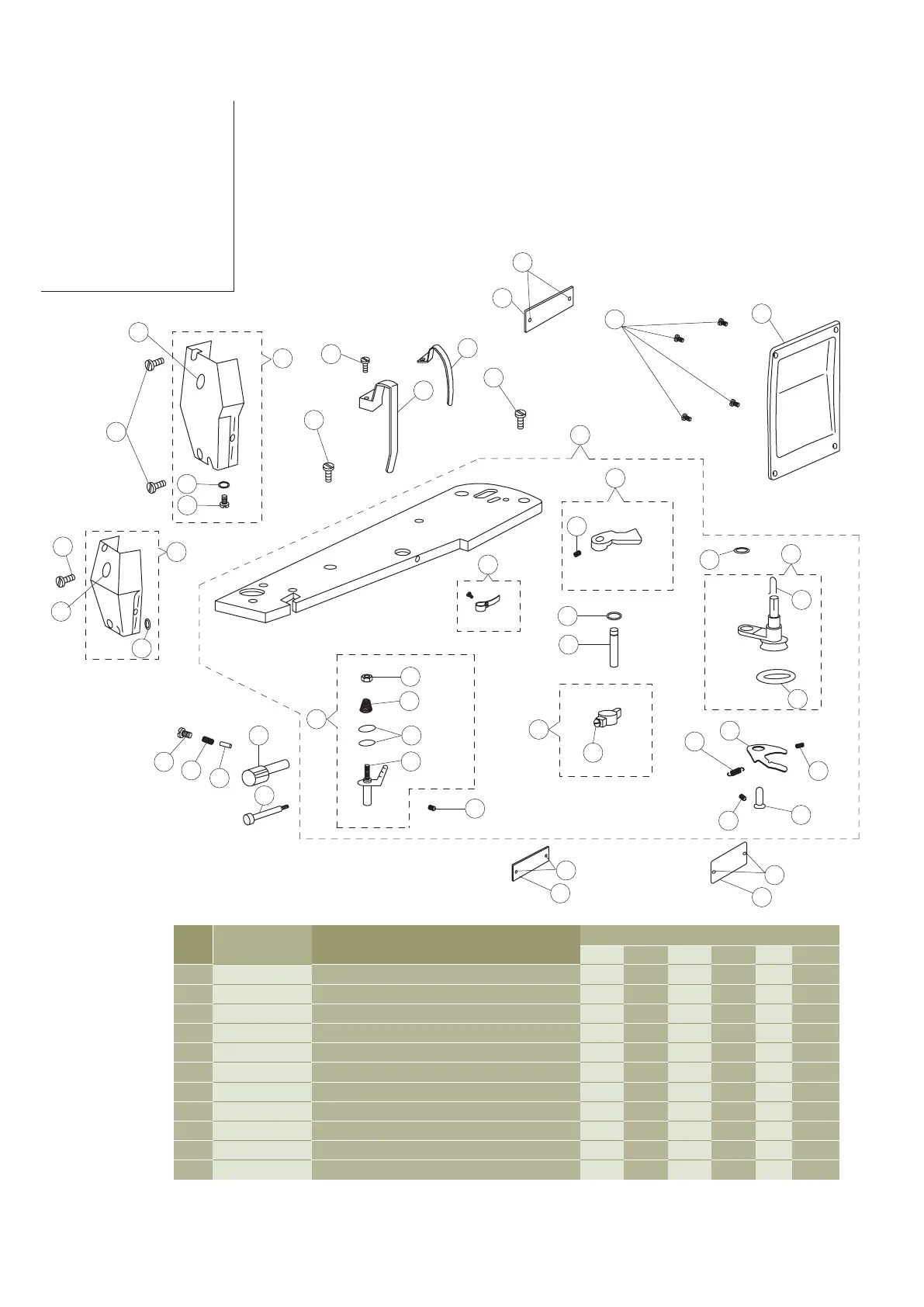

Zigzag Sewing Machine | Instruction Manual and Parts List
6.1
Face Plate,
Arm Top
Cover and Arm
Side Cover
Components
1
2
3
4
7
8
5
6
14
9
11
12
13
10
24
15
19
20
21
22
18
46
46
43
45
17
16
23
26
29
30
27
28
25
34
31
31
32
33
35
39
40
42
41
38
37
44
46
36
109 109C 112 112C 309 910
1 554113-383 Thread take-up guard 1 1 1 1 0 1
2 606407 Take-up guard screw 1 1 1 1 1 1
3 606395 Face plate assembly 1 1 1 1 0 1
4 606632 Thread guide 1 1 1 1 0 1
5 606633 Thread guide screw 1 1 1 1 0 1
6 606634 Screw 2 2 2 2 0 2
7 554118-385 Back cover 1 1 1 1 1 1
8 606635 Screw 4 4 4 4 1 4
9 606433 Arm top cover assembly 1 1 1 1 0 1
601433 Arm top cover assembly 0 0 0 0 1 0
10 606636 Thrust washer 1 1 1 1 1 1
No. Part No. Description
Qty
