Singer 20U109 User Manual

60
Zigzag Sewing Machine | Instruction Manual and Parts List
6.16

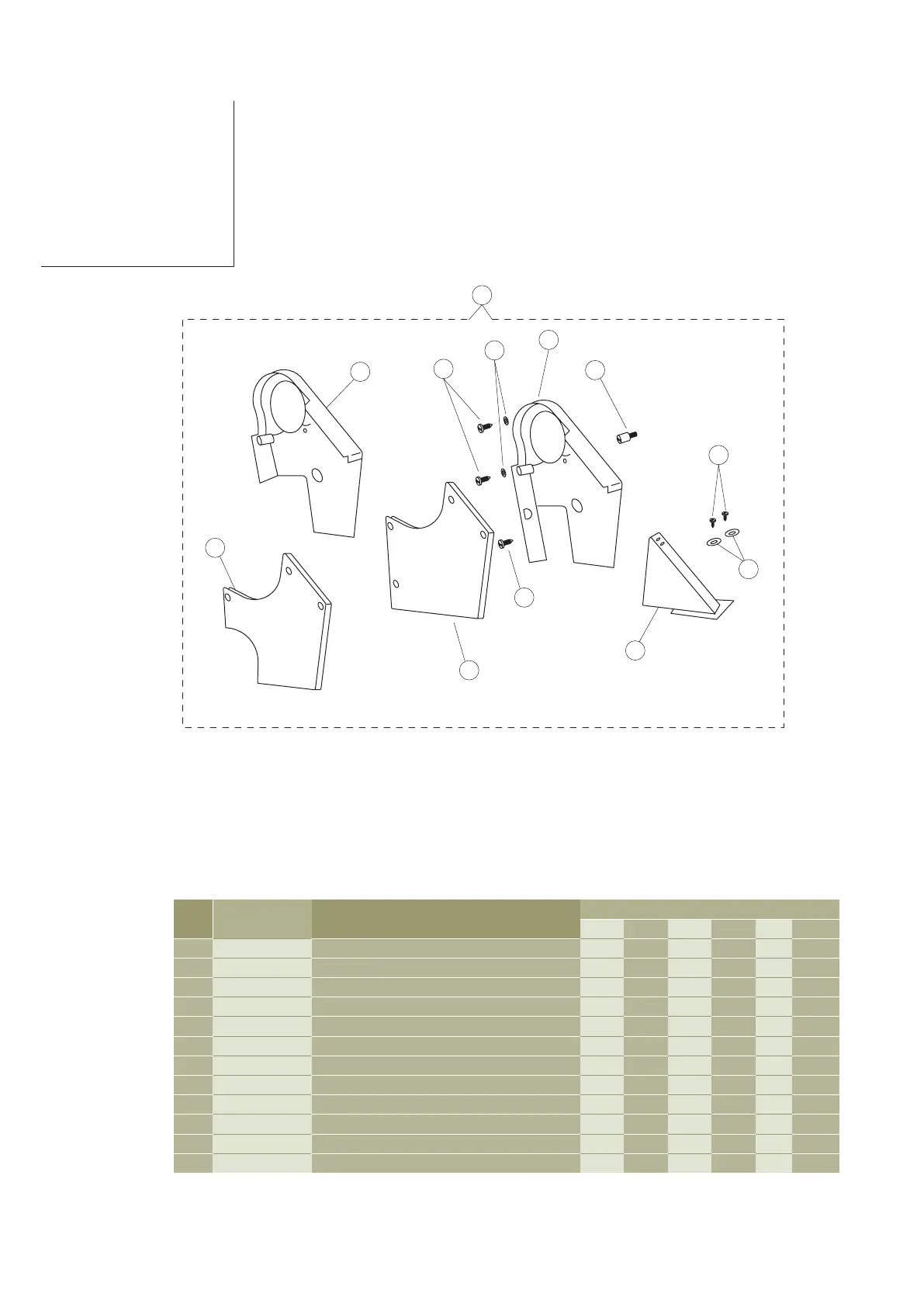

Belt Cover
Components
and Extra
Parts
1
2
3
4
7
8
5
6
9
10
15
16
109 109C 112 112C 309 910
1 281840-383 Belt cover assembly 1 1 1 1 1 1
2 281833-383 Belt cover (upper) 1 1 1 1 0 1
3 281834-383 Belt cover (upper) cover 1 1 1 1 0 1
4 549116 Belt cover (upper) screw 1 1 1 1 1 1
5 504063-451 Belt cover (upper) screw 2 2 2 2 2 2
6 543875-104 Belt cover (upper) screw washer 2 2 2 2 2 2
7 544241 Belt cover (upper) screw stud 1 1 1 1 1 1
8 281835-383 Belt cover (lower) 1 1 1 1 1 1
9 549398 Belt cover (lower) wood screw 2 2 2 2 2 2
10 543803-003 Belt cover (lower) wood screw washer 2 2 2 2 2 2
15 281833-308 Belt cover (upper) 0 0 0 0 1 0
16 281834-308 Belt cover (upper) cover 0 0 0 0 1 0
No. Part No. Description
Qty

Singer 20U109 Specifications

General

Brand	Singer
Model	20U109
Category	Sewing Machine
Language	English
