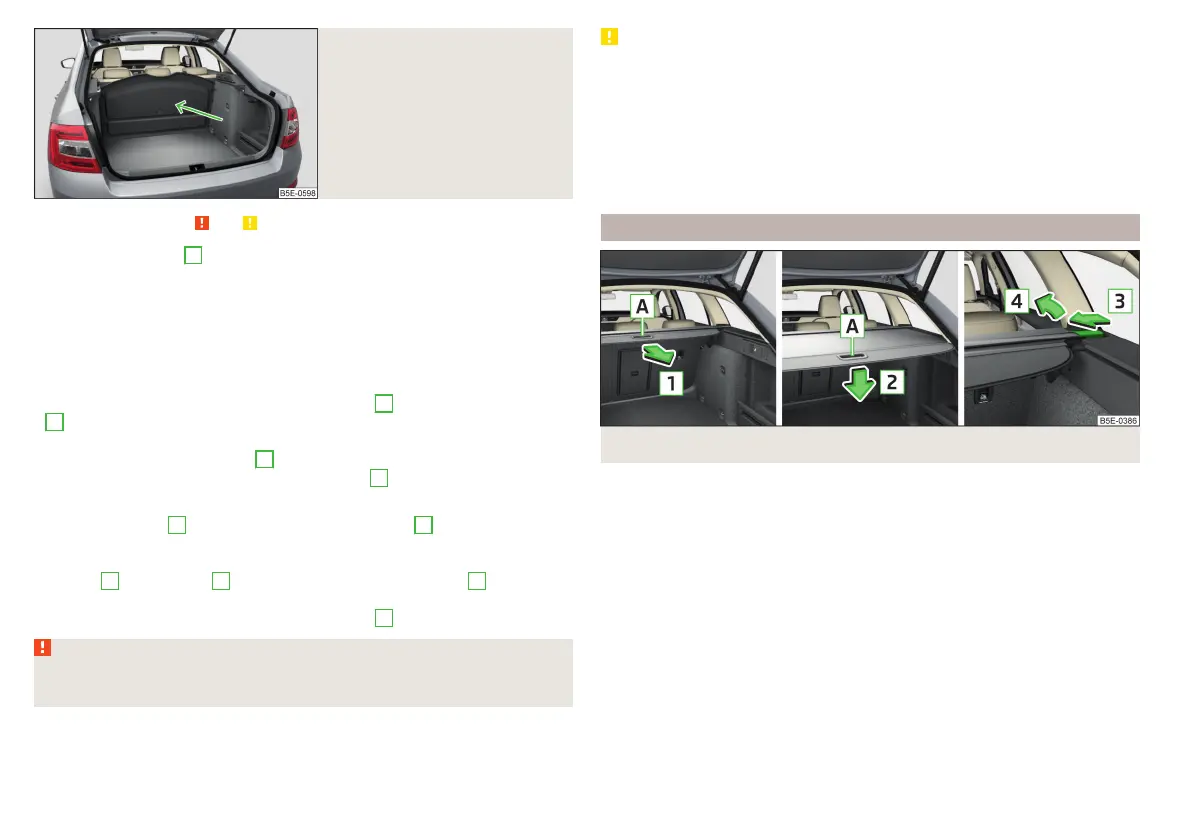

Fig. 135
Luggage compartment cover
stowed behind the rear seats
Read and observe
and on page 104 first.
If the retaining straps
A
» Fig. 134 are attached to the boot lid, then opening
the lid will also raise the luggage compartment cover (hereafter only referred
to as "cover").
The cover can be removed from the vehicle and stowed behind the rear seat
backrests if required » Fig. 135. Before removing the cover, the sunshade at
the back must be rolled up» page 81.
Removing
›
On both sides of the boot lid, unhook the straps
A
in the direction of arrow
1
» Fig. 134.
›
Hold the raised cover and press on the two sides on the underside of the
cover in the area of the recess
C
.
›
Remove the cover in the direction of the arrow
2
.
Fitting
›
Place the fixtures
B
on the cover above the brackets
C
on the side trim
» Fig. 134.
›
Press on the two sides to the upper side of the cover in the region of the
mounts
C
. The fixtures
B
must lock into place of the recess
C
on both
sides of the luggage compartment.
›
On both sides of the boot lid, unhook the straps
A
.
WARNING
Do not place any objects on the cover during the trip - There is a risk of
injury if you brake or have a collision!
CAUTION
■
Observe the following instructions to avoid canting and the subsequent
damage to the cover or the side trim.
■
The cover must be inserted properly and the load must not exceed the
height of the cover.
■
The cover must not be jammed in the surrounding seal of the luggage com-
partment lid when it is in the raised position.
■
There must be no object in the gap between the cover in the raise position
and the rear backrest.
Roll-up cover
Fig. 136
Roll-up cover: pulling out/rolling/removing
108
Operation
