HGM6000K Series Automatic Generator Module
HGM6000K Series Automatic Generator Module ISSUE 2011-06-20 Version 1.7 Page 32 of 34

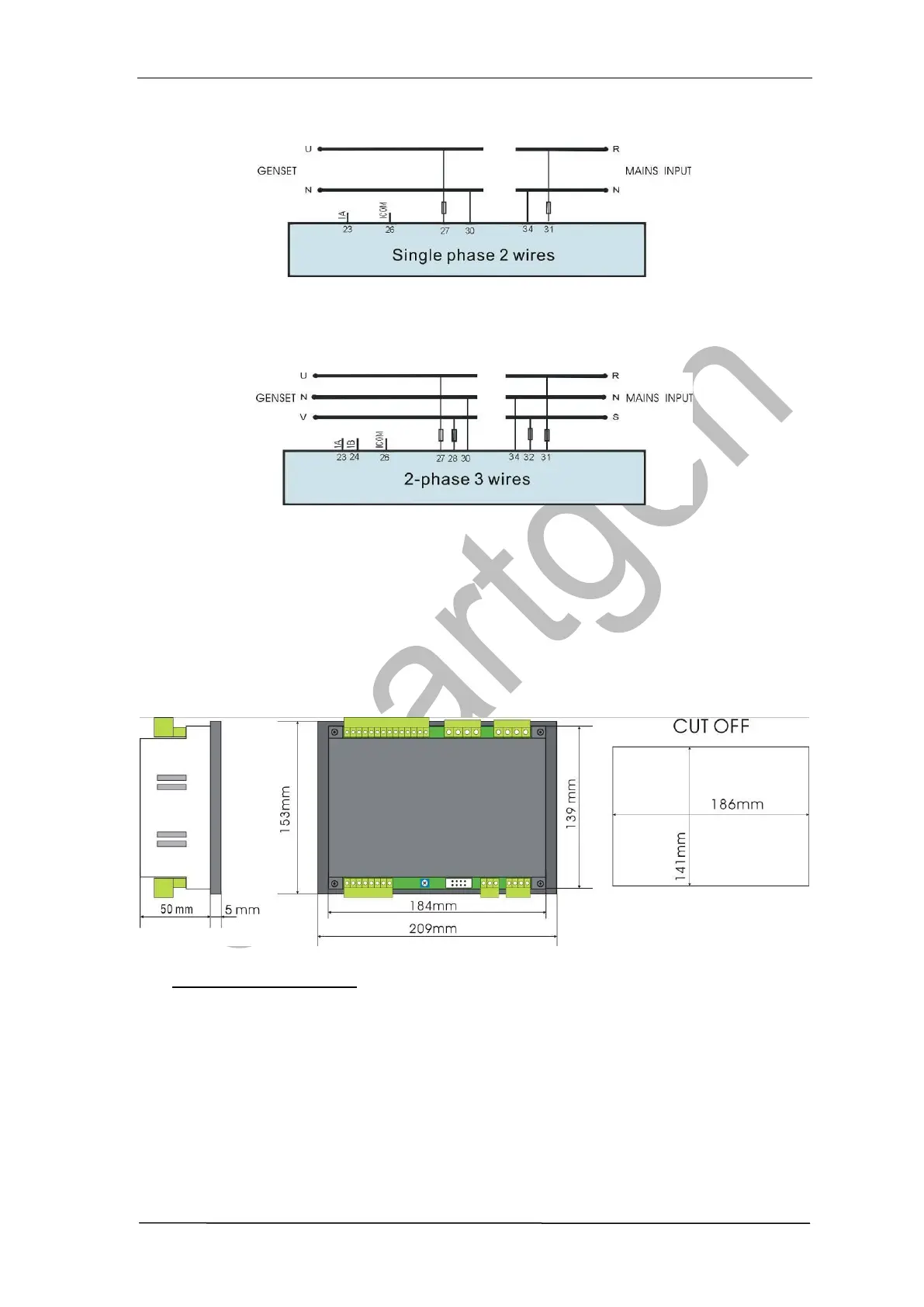

Single phase 2 wires (HGM6020KC)
2-phase 3 wires (HGM6020KC)
Note: Recommend that the output of crank and Fuel expand high capacity relay.
12 INSTALLATION
The controller is designed to panel installation mode, and it is fixed by clamps
when it is installed. The overall dimension and panel tapping dimension are given
as follows:
1． Battery voltage input
HGM6000K series controller can be applicable to (8-35VDC) battery voltage
environment, battery anode must be reliable connect engine shell B + and B-
controller power battery anode and cathode connections is not less than 2.5, if
there was the float electrical, please put the charger output wire directly to
battery is negative, and from the battery is connected to the anode separately
on the power input, positive controller to prevent the normal operation of the
controller battery charger interference.
