Chapter 5 System Operation
5.2 Flow Chart of Operation Screen HRW Series
5-2
5.2 Flow Chart of Operation Screen

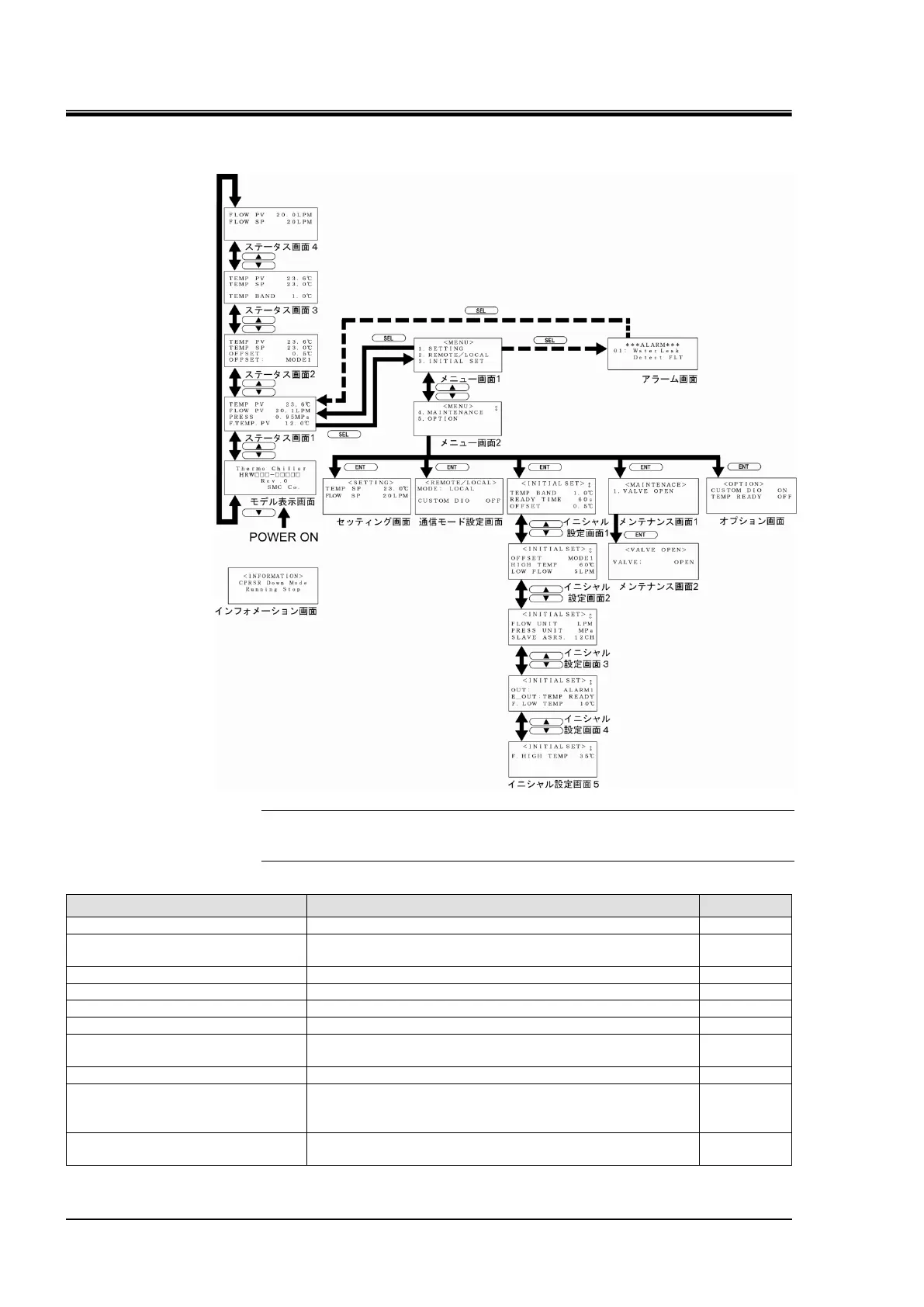

Figure 5-2 Flow Chart of
Operation Screen
[Tips]
With the press of the [SEL] key, the screen is switched to the “Menu screen 1”
regardless of the screen status.
Table 5-1 Descriptions of Operation Screens
Screen
Descriptions
Reference
Model Indication screen
Displays the model and revision No. of this system.
Page 5-3
Status screen 1, 2, 3, 4
Displays the operating condition of this system.
Page 5-3
Page 5-5
Menu screen 1, 2
Allows setting screen selection.
Page 5-5
Setting screen
Allows the setting of TEMP SP value.
Page 5-6
Mode Selection screen
Allows communication mode selelction.
Page 5-6
Initial Setting screen 1, 2, 3, 4, 5
Allows the setting of set values.
Page 5-7
Maintenance screen 1, 2
Not used during system operation.
Not allowed to use unless otherwise specified.
Page 5-9
Option screen
Allows the setting of option.
Page 5-9
Alarm Display screen
The alarm message is displayed in the event of an error in
this system.
Not displayed if no error.
Page 5-10
Information screen
Displayed upon system power-ON.
Disables system operation when displayed.
Page 5-10
