8.5 BAND/READY function HRW Series
8-12
8.5 BAND/READY function
Sets BAND to TEMP SP value, and notifies TEMP PV value reaches within
BAND range by the operation display panel or the communication.
See section “5.3.9 Initial Setting screen” on page 5-7, “5.3.11 Option screen” on
page 5-9 for the procedure of the setting.

When the setting is ON
Allows the setting of the BAND and REDY TIME. Allows the setting of the
communication output.

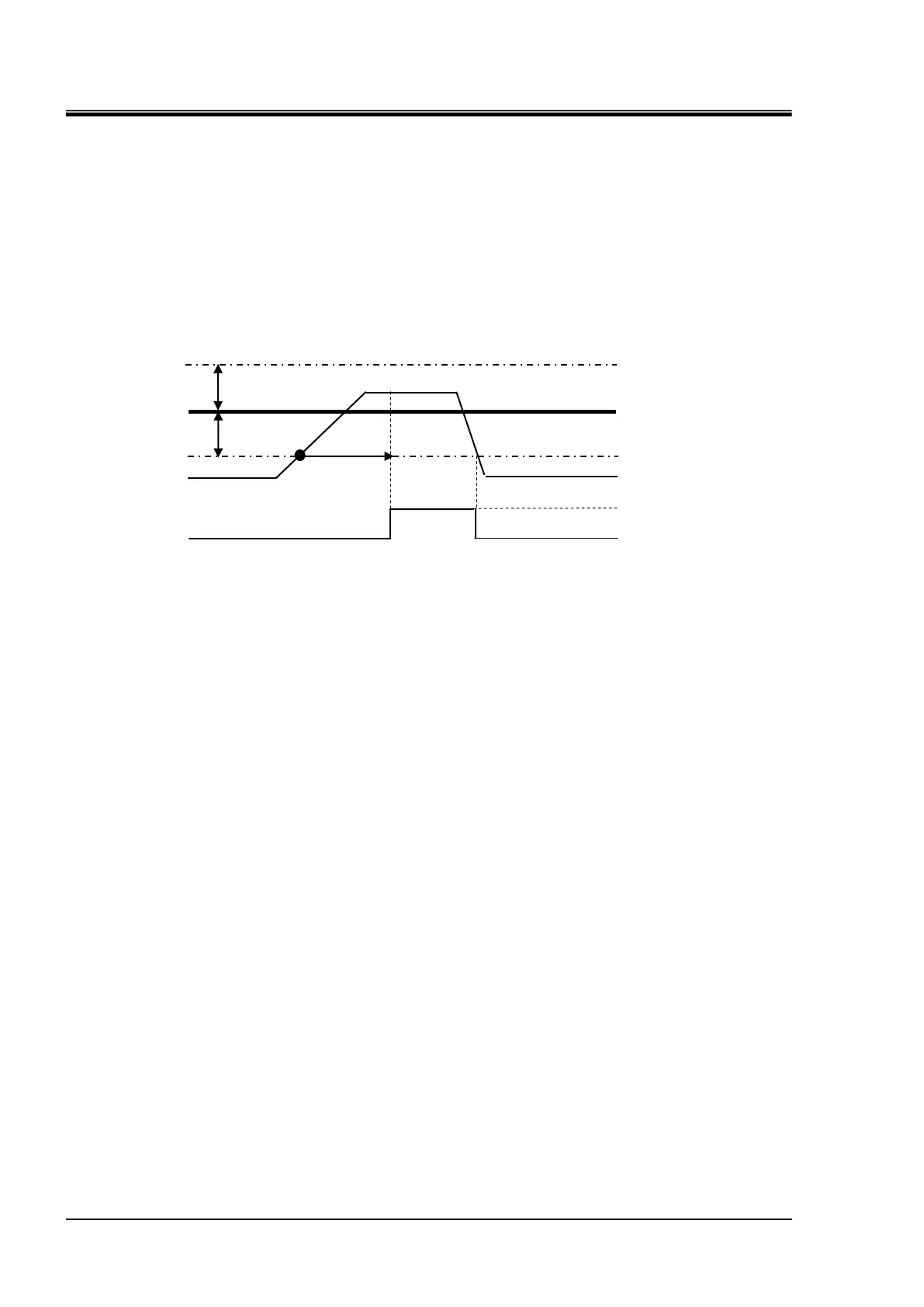

Figure 8-8 BAND/READY function

Examples of Setting
TEMP SP: 20°C
BAND: 2°C
READY TIME: 60sec.
“TEMP READY” is displayed on the operation display panel 60-sec. after
TEMP PV value becomes 18°C to start output by communication.
Necessary condition is that TEMP PV value after 60sec. is 20+/-2.0°C or
less. See “5.3.4 Status screen 3”on page 5-4 for the details of display
position.

When the setting is OFF
BAND/READY function becomes invalid.
BAND
TEMP SP
TEMP PV
TEMP READY not
display/not output
TEMP READY
display/output
READY
TIME
