SMC Networks HRW015-H User Manual

HRX-OM-K003
Chapter 5 System Operation
HRW Series 5.3 Operation Screen
5-5

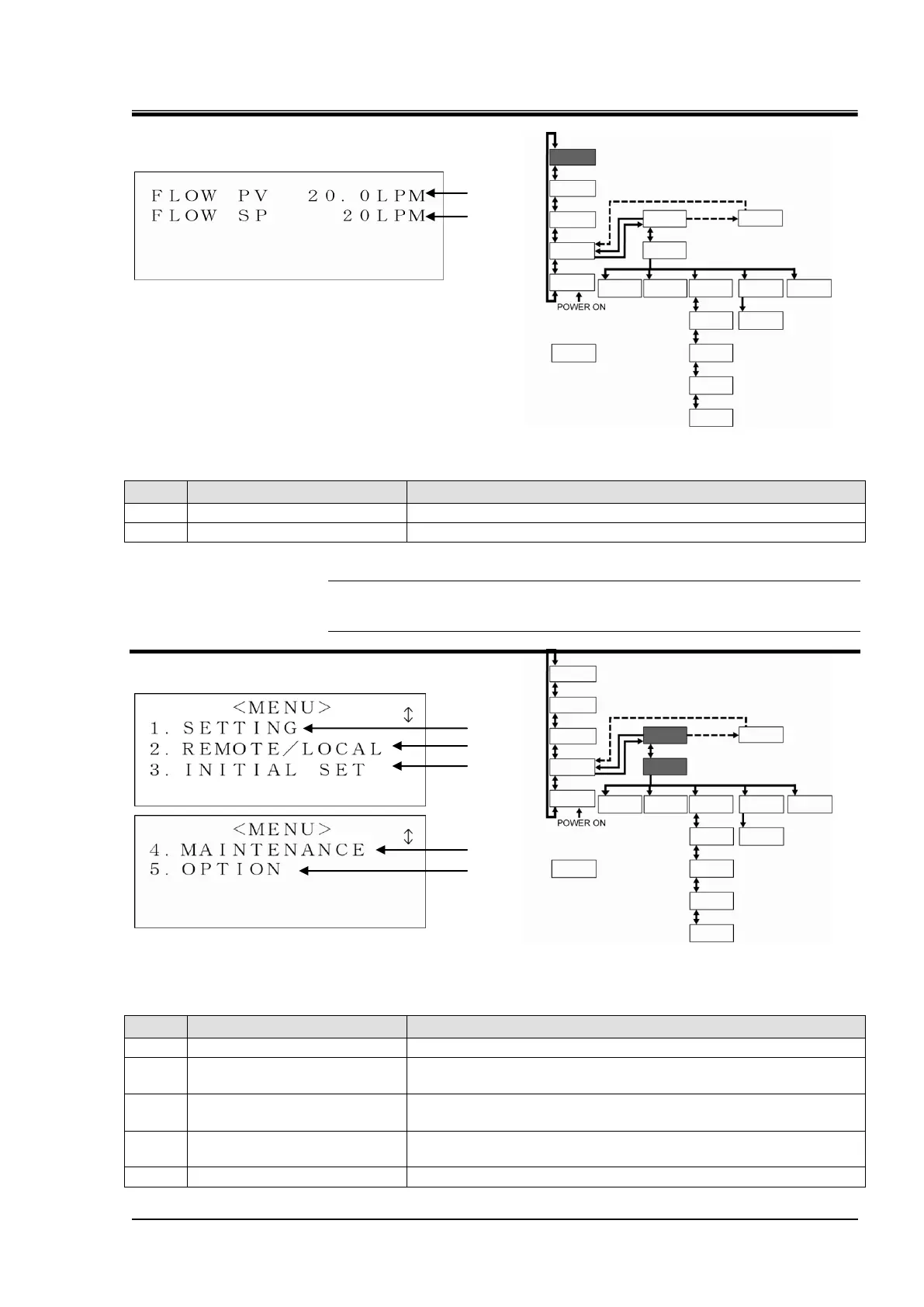

5.3.5 Status screen 4
*Status screen 4 is only indicated on HRW-HS
(pump inverter type).
Figure 5-7 Status Screen 4
Table 5-6 Status Screen 4
No.
Item
Descriptions
1
FLOW PV*
1
Discharge flow rate of the circulating fluid
2
FLOW SP*
1
Set Discharge flow rate
[Tips]
When using accessory [by-pass piping set] flow becomes total of flow on
customer side and flow on by-pass (*1).
5.3.6 Menu screen
Figure 5-8 Menu Screen
Table 5-7 Menu Screen
No.
Item
Descriptions
1
SETTING
Swicthes to the “Setting screen” with the press of the [ENT] key.
2
REMOTE/LOCAL
Swicthes to the “Mode Selection screen” with the press of the
[ENT] key.
3
INITIAL SET
Swicthes to the “Initial Setting screen 1” with the press of the
[ENT] key.
4
MAINTENANCE
Swicthes to the “Maintenance screen 1” with the press of the
[ENT] key.
5
OPTION
Swicthes to the “Option screen” with the press of the [ENT] key.
1
2
3
4
5
1
2
