SMC Networks LECPA Series User Manual

- 13 -

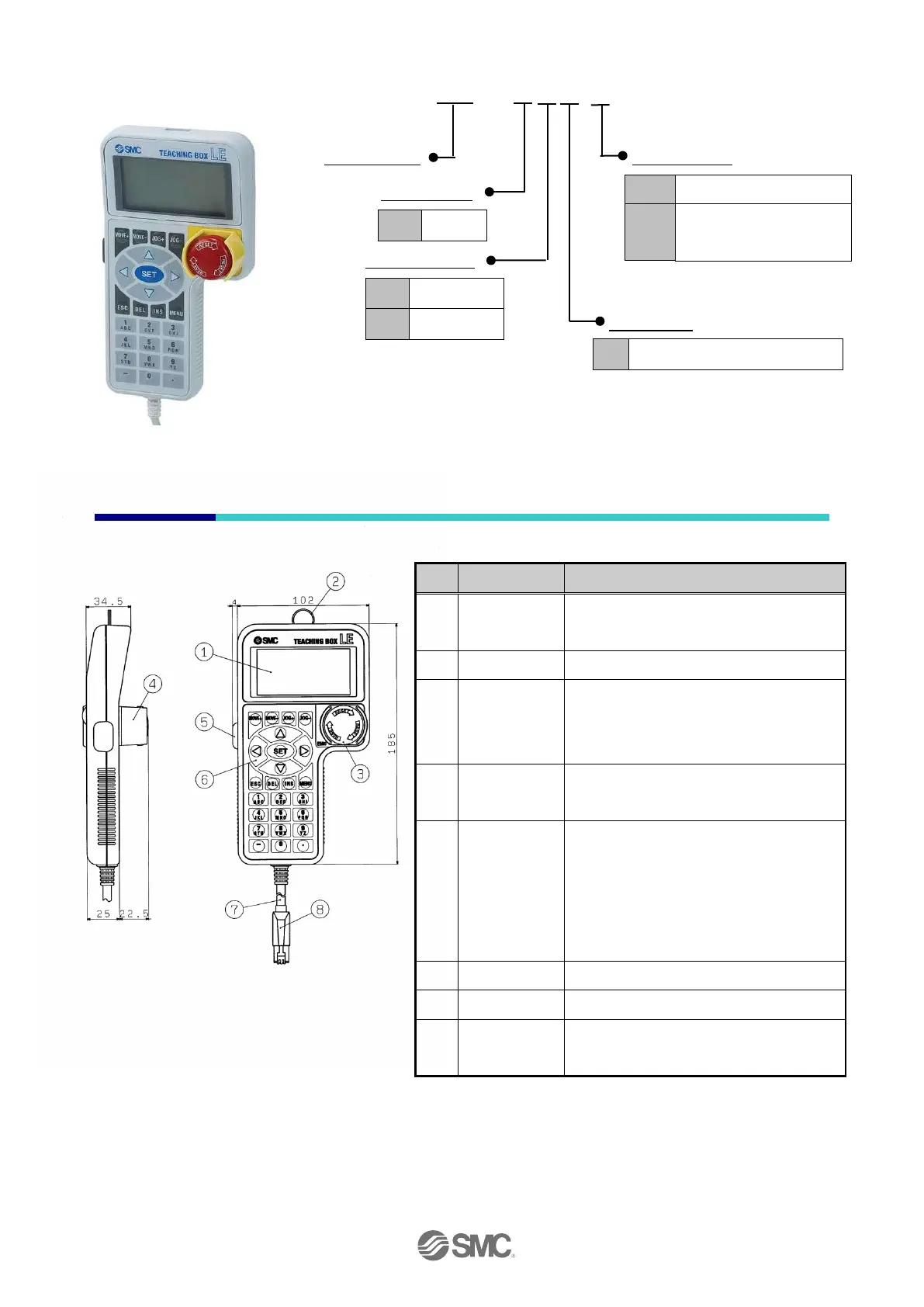

(7) Teaching box
ＬＥＣ－Ｔ１－ ３ＪＧ □
Teaching box Enable switch
Cable length
Initial language
Stop switch
Dimensions
No.
Name
Function
(1)
LCD
A screen of liquid crystal
display(with backlight)
(2)
Ring
A ring for hanging the teaching box.
(3)
Stop switch
When switch is pushed in,the switch
locks and stops.The lock is released
when it is turned to the right.
(4)
Stop switch
guard
A guard for the stop switch
(5)
Enable
switch
(Option)
Prevent unintentional operation of
(unexpected operation)of the Jog
test function.
Other functions such as data
change are not covered.
(6)
Key switch
Entry switches
(7)
Cable
3m length
(8)
Connector
The connector to be connected to
the CN4 of the driver
Equipped with
enableswitchchluded.
S
No enable switch
Nil
Japanese
J
English
E
3m
3
Equipped with stop switch
G
