VLAN C ONFIGURATION
3-31

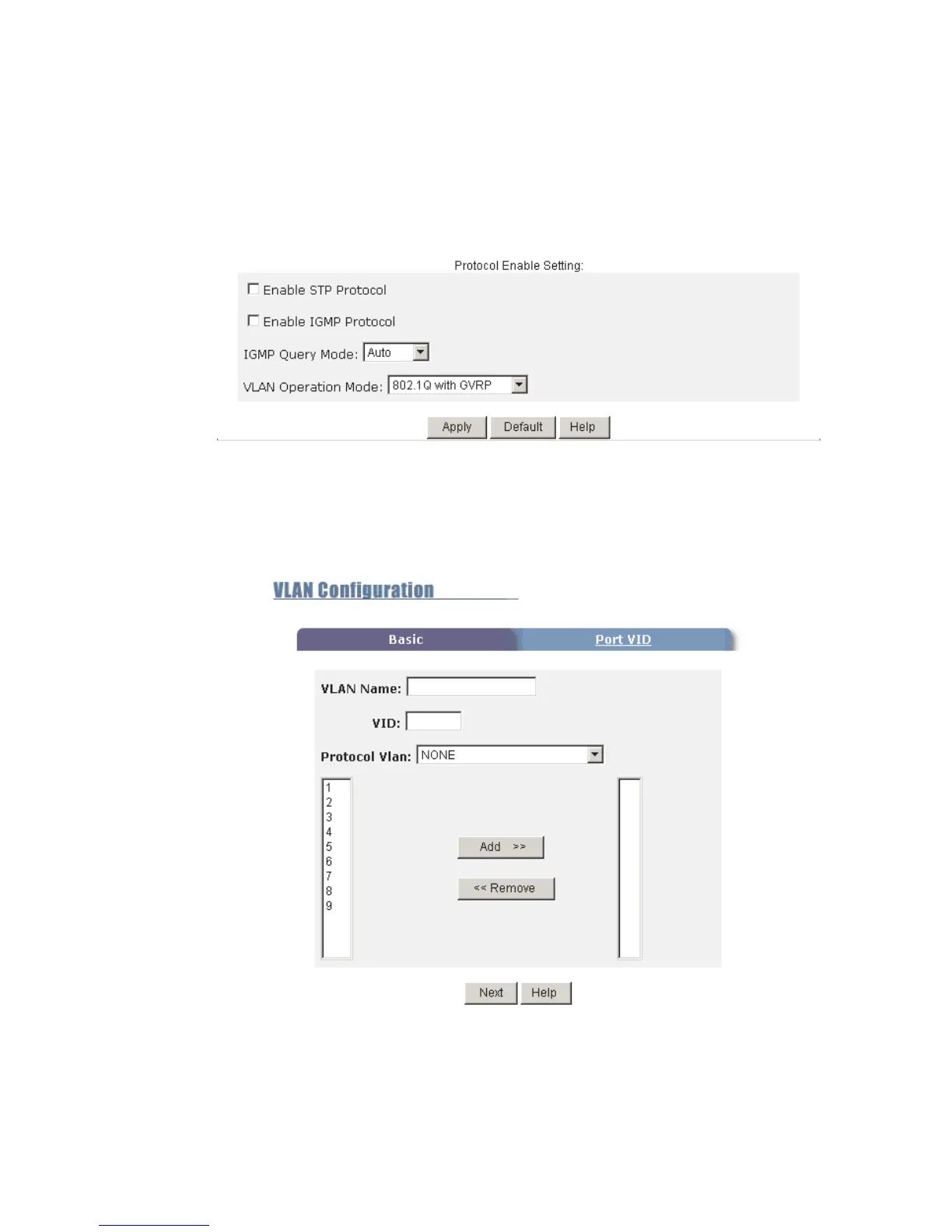

Creating Tagged VLANs
Web – Click Administrator
=> Switch Settings => Advanced. Set VLAN
Operation Mode to 802.1Q with or without GVRP, then click Apply.
Click Administrator
=> VLAN Configuration => Basic. Click Add to create a
group. Enter the VLAN Name (1-15 characters) and Group ID (2-4094).
Select a protocol type if you want to create a protocol based VLAN. Use
the Add or Remove buttons to configure port members, then click Next.
