A6T/A6/A5 Portable Ultrasonic Diagnostic Sys
tem
4701-0040-01A
3-60

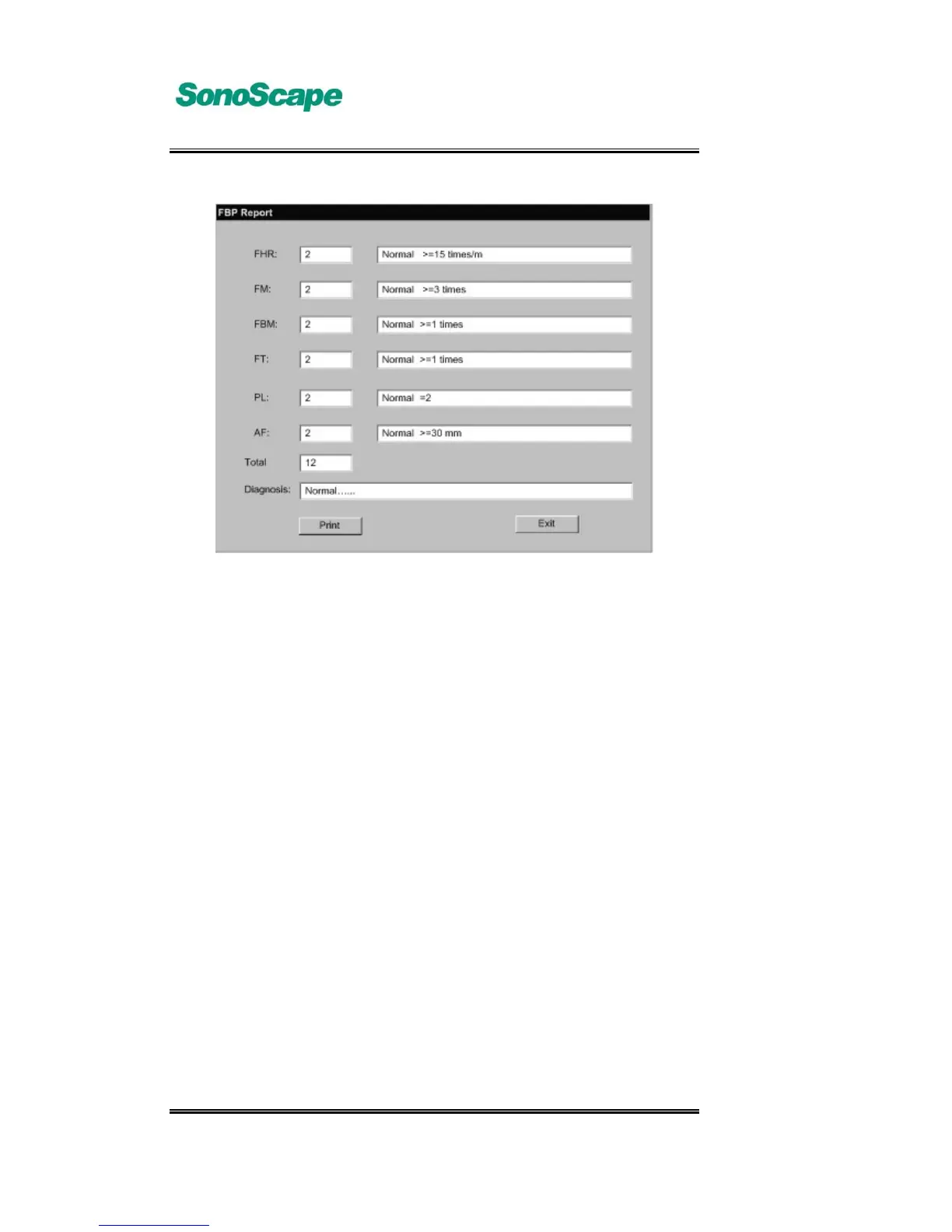

Fig. 3.6.2.2.10 FBP Grade Report
3.6.2.3 GYN
measurement
GYN measurement includes:
Uterus measurement (UT)
Endometrium thickness measurement (ENDO)
Lef
t
ovary measurement (L.OV)
Right ovary measurement (R.OV)
Lef
t
follicle measurement (L.FO)
Right follicle measurement (R.FO)
Cervix long diameter measurement (CX)
Cervix length / Uterus length (CX-L
/UT
-L)
81
83
Table of Contents
Default Chapter
1
Table of Contents
1
1 System Safety
7
Safety Overview
7
Warning Signs
9
Biological Safety
10
Ultrasound Safety
10
Operating Environment
10
Transport and Storage
11
Electrical Requirements
11
Electrical Safety Classification
12
2 System Description
13
General
13
Application
13
Contraindication
14
System Configuration
14
Configuration
14
Standard Configuration
15
Optional Accessories
15
Optional Peripherals
15
Technical Specifications
17
System Principle
20
3 System Operation
23
Operation Notice
23
Transducer Connection
23
System Power ON/OFF
24
General Operation
25
Keyboard Operation
25
User Interface
28
System Setting
29
General Setting
30
Dicom Setting
31
Formula Select
32
Formula Define
34
Comment Setting
36
Patient Information
39
Disk Management
40
LCD Setting
44
Bodymark
45
How to Use Biopsy
46
Report
47
Use the Peripherals
48
USB Device
48
Footswitch
49
Video out
49
Network Device
49
Imaging
50
Basic Operation
50
Parameter Adjust
51
Measurement
54
B Mode Basic Measurement
55
Distance Measurement
55
Angle Measurement
56
Ratio Measurement
57
Area/Circumference Measurement
58
Volume Measurement (2-Axis, 3-Axis)
60
Basic ob Measurement
62
GS (Gestational Sac) Measurement
63
CRL Measurement
64
BPD (Biparietal Distance) Measurement
65
HC (Head Circumference) Measurement
65
AC Measurement
66
FL (Femur Length) Measurement
67
OFD Measurement
68
AFI (Amniotic Fluid Index) Measurement
69
CER Measurement
69
Report
70
APAD Measurement
71
High-Level ob Measurement
71
AA (Abdominal Area) Measurement
72
HL (Humerus Length) Measurement
73
THD Measurement
74
FTA (Fetal Trunk Area) Measurement
75
OOD Measurement
75
TIBIA Measurement
76
ULNA Measurement
76
Fetal Growth Curve (FGC)
77
Input Last Menstrual Period (Input LMP)
77
Fetal Biophysical Profile (FBP)
78
GYN Measurement
82
UT Measurement
83
Endo Measurement
84
L.ovary (Left Ovary) Measurement
85
R.ovary (Right Ovary) Measurement
86
L.follicle (Left Follicle) Measurement
87
Follicle (Right Follicle) Measurement
88
CX (Cervix) Measurement
89
Cardiac Measurement
90
CX-L /Ut-L
90
LV Function
91
Right Ventricle Inner Diameter (RV)
98
Left Ventricular Mass (LV Mass)
99
Pulmonary Artery Inner Diameter (PA)
99
Left Ventricle Mass Weight Index
100
Small Part Measurement
101
URO Measurement (RUV)
101
Prostate Measurement (PSV)
102
Thyroid Measurement (THY)
104
Distance Measurement
105
M Mode Measurement
105
Slope Measurement
106
Time Measurement
106
HR Measurement
107
LV Function Measurement (LV)
108
Teichholz
108
Cube
109
Gibson
110
Mitral Valve Measurement (MV)
110
Aortic Valve Measurement (AO)
112
Ejection Time (ET)
114
TEI Measurement
114
Other Operation
115
Save
115
Saving Exam Mode
115
Saving Image File
116
Cineloop
117
Continuous Cineloop
117
Single Image Cineloop
117
Clipboard
118
M Mode Cineloop
118
Review Images
118
Software Upgrade
119
4 Transducer
121
Use Transducer
121
Use Biopsy Guide
121
Transducer Specifications
122
5 System Maintenance
123
Main Unit
123
Maintenance
123
Installation
124
System Transport
124
Transducer
125
Maintenance
125
Use Endocavity Transducer
127
Cleaning
128
Disinfection
128
Service Method
129
Service Responsibility
130
Service Contact Information
130
Appendix A Descriptions of Signs
131
Appendix B Principle for Using Acoustic Power
133
Appendix C the Information of Representatives
135
Appendix D Maximum Acoustic Output Report
137
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Sonoscape A5 and is the answer not in the manual?
Ask a question
