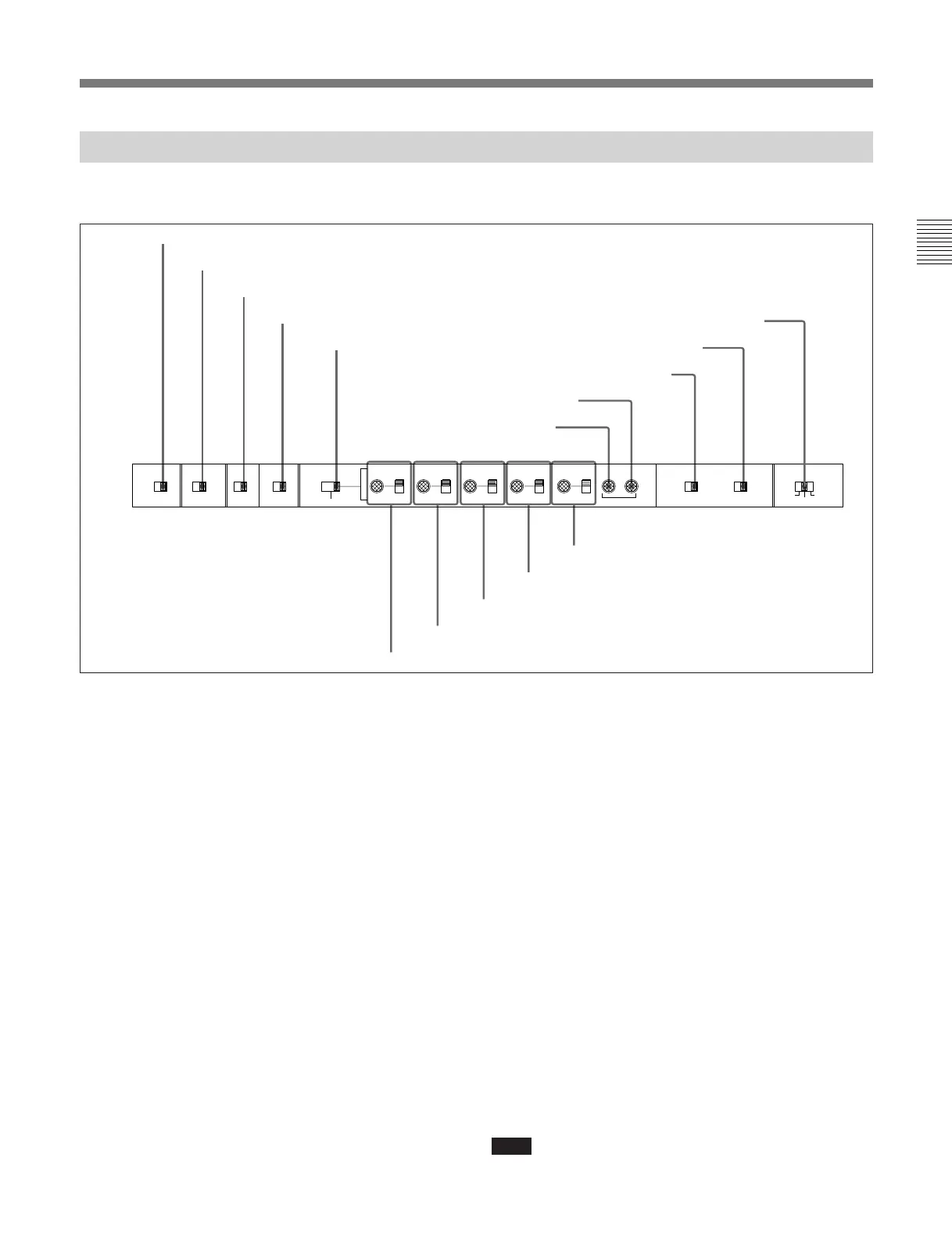

2-1-3 Subsidiary Control Panel
Pull out the lower control panel to reveal the
subsidiary control panel.
EMPHASIS CHARACTER DOLBY
NR
VIDEO
PROCESS
CONTROL
CHROMA SET UP Y/C DELAY CHROMA PHASE SYNC SC
REC
INHIBIT
KEY
INHIBIT
CAPSTAN
LOCK
ON OFF OFF ON OFF ON
OUT REF
INPUT
VIDEO
REF REMOTE LOCAL
MENU
PRESET
MANUAL
PRESET
MANUAL
PRESET
MANUAL
PRESET
MANUAL
PRESET
MANUAL
SYSTEM PHASE
ON OFF ON OFF 2FD 8FD
4FD
(625/50)
1 EMPHASIS switch
!¡ SYNC knob
!™ SC knob
5 PROCESS
CONTROL switch
4 OUT REF switch
2 CHARACTER switch
3 DOLBY NR switch
6 VIDEO knob and PRESET/MANUAL switch
8 SET UP (DNW-A100/A50/A45)/BLACK LEVEL (DNW-A100P/A50P/
A45P) knob and PRESET/MANUAL switch
7 CHROMA knob and PRESET/MANUAL switch
9 Y/C DELAY knob and PRESET/MANUAL switch
0 CHROMA PHASE knob and PRESET/MANUAL
switch
!£ REC INHIBIT switch
!¢ KEY INHIBIT switch
!∞ CAPSTAN LOCK switch
1 EMPHASIS switch
Set this to ON to apply emphasis to an analog input
audio signal or analog playback audio signal to convert
the analog audio signal to a digital audio signal.
2 CHARACTER switch
Select whether or not to superimpose text information
such as time code, menu settings, and alarm messages
on the video signal output from the COMPOSITE
VIDEO OUTPUT 3 (SUPER) connector.
ON: Superimposed text.
OFF: No superimposed text.
The factory default setting is ON.
3 DOLBY NR (noise reduction) switch
When using an oxide tape, switch the Dolby noise-
reduction system for analog audio on or off.
When using metal tape, the Dolby noise-reduction
system is automatically switched on, regardless of the
setting of this switch.
ON: Enable the Dolby noise-reduction system for
playback of an analog Betacam oxide tape.
OFF: Disable the Dolby noise-reduction system for
playback of an analog Betacam oxide tape.
The factory default setting is OFF.
4 OUT REF (reference) switch
When the device specification buttons (see page 2-12)
are set to select an external device (EXT) as the player,
this switch selects the reference signal for this unit
depending on the combination of the setting of
extended menu item 309 and the operating state of the
unit. (If other than an external device is specified as
the player, then regardless of the setting of this switch,
the signal input to the REF. VIDEO connector is
always selected as the reference signal.)
REF: Use the signal input to the REF. VIDEO
connector as the reference signal. During
recording input digital audio and video signals
must be synchronized with this signal.
INPUT VIDEO: Use the input video signal selected
by the VIDEO INPUT SELECT switch as the
reference signal.
Note
Operating this switch during playback may cause a
momentary interruption of the playback sound.
