Location and Function of Parts and Controls

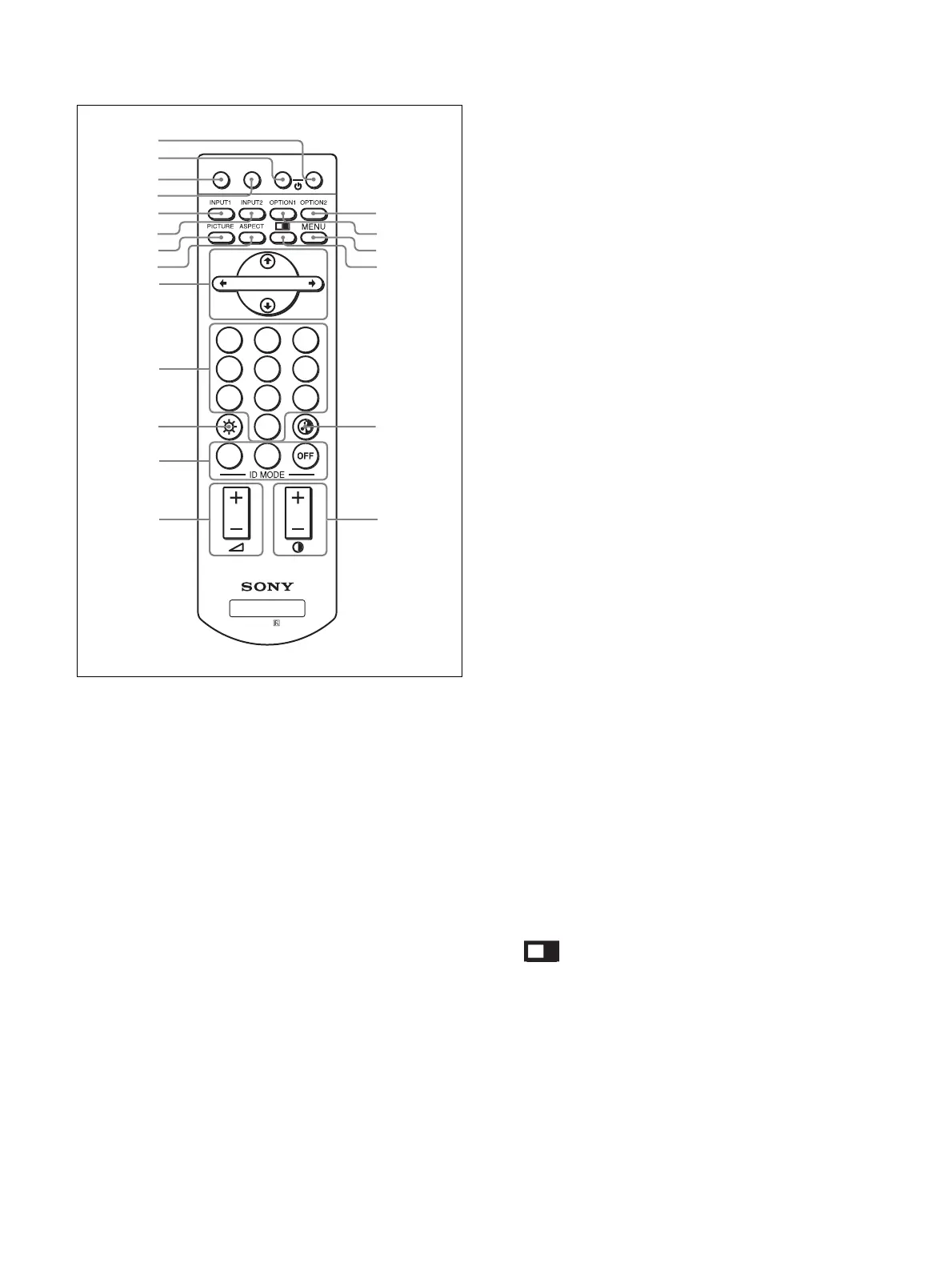

Remote Commander RM-980
1 POWER ON switch
Press to power on the display.
2 STANDBY button
Press to change the display to the standby mode.
3 MUTING button
Press to mute the sound. Press again to restore sound.
4 DISPLAY button
Press to display the input signal information and the
picture mode on the screen. Press again to hide them.
If this displayed information is left undisturbed for
five minutes, it will disappear automatically.
5 INPUT1 button
Press to select the signal input to the INPUT1
connectors.
6 INPUT2 button
Press to select the signal input to the INPUT2
connectors. Each press toggles between RGB and
COMPONENT.
RM
-
980
M
O
NIT
OR
M
U
TIN
G
DI
S
PLAY
S
TB
Y
ON
ENTER
S
E
T
ON
0
8
7
9
5
4
6
213
2
1
3
qa
5
4
7
6
8
9
0
qs
qd
qf
qg
qk
qh
ql
qj
7 PICTURE button
Selects Picture mode. Each press toggles between
Vivid, Standard, and User 1 to 3.
8 ASPECT button
Press to change the aspect ratio (Wide Mode).
9 M/m/</,/ENTER buttons
The M/m/</, buttons move the menu cursor
(yellow) and set values, etc. Pressing the ENTER
button sets the selected menu or setting items.
q; Number buttons
Press to enter index numbers.
qa BRIGHTNESS button
Adjusts the brightness when Picture Mode is set to
any of “User1” to “User3.” Press this button, then
adjust the brightness with M/m or </, buttons 9.
qs ID MODE (ON/SET/OFF) buttons
Press ON to show an index number on the screen.
Enter the index number of the display you want to
operate with Number buttons 0, then press SET.
Press OFF to return to the normal mode.
For details on the index numbers, see “Operating a
Specific Display With the Remote Commander” on page
44 (GB).
qd VOLUME +/– button
Press to adjust the volume.
qf OPTION2 button
This button is invalid for this display unit.
qg OPTION1 button
When an option board is installed, selects a signal to
be input from the device connected to the option
board. Each time you press this button, the signal
input to the OPTION1 switches.
qh MENU button
Press to show menus. Press again to hide them.
qj
button
Selects the PICTURE AND PICTURE (PAP) mode.
Each press toggles between PAP off, P&P, and PinP.

Sony FWD-42PV1 Specifications

General

Depth	121 mm
Width	1033 mm
Height	631 mm
Weight	29000 g
HD type	Not supported
I/O ports	-DVI-HDCP; Audio In -D-sub 15-pin (RGB / YUV), DIV; Audio In Remote (RS-232C) D-sub 9-pin, Audio Out, Control S In/Out; -S-Video In / Out; Audio In, Composite In Yes, Composite Out
Audio system	Surround (Off / Hall / Simulated)
Product color	Black
Audio (L/R) in	1
Noise reduction	Yes
Display diagonal	42 \
Display brightness	50 cd/m²
Display resolution	852 x 480 pixels
Display technology	Plasma
Power requirements	100 - 240V, 50/60Hz (3.5A max)
Contrast ratio (typical)	-
Display number of colors	1.073 billion colors
Storage temperature (T-T)	-10 - 40 °C
Analog signal format system	NTSC, PAL, SECAM
Operating temperature (T-T)	0 - 35 °C
Power consumption (typical)	260 W
Operating relative humidity (H-H)	20 - 90 %
