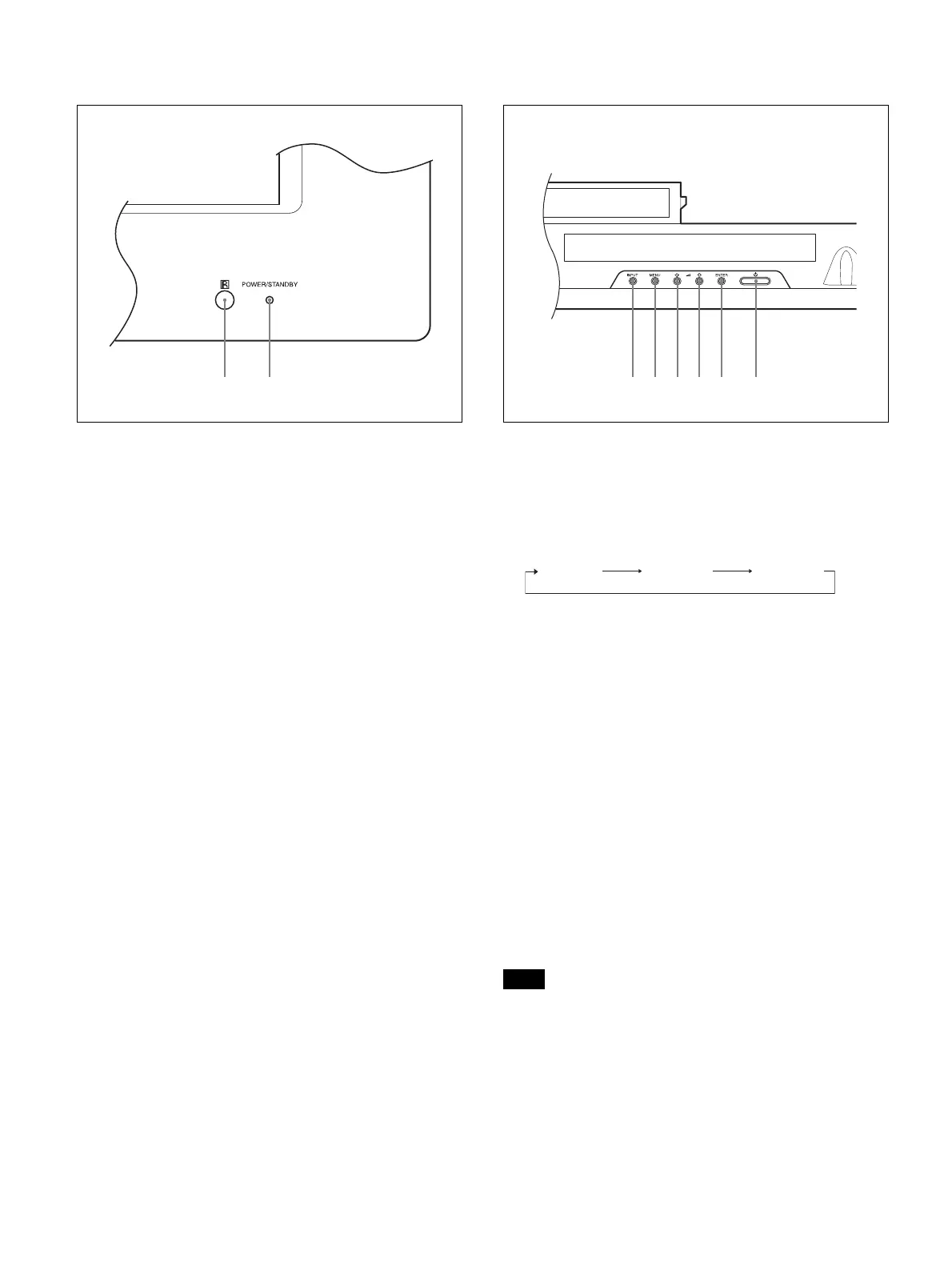

Location and Function of Parts and Controls
1 2 3 4 5 6
Indicator Section
1 Remote control detector
Receives the signals from the Remote Commander.
2 POWER/STANDBY indicator
Lights up in green when the display unit is powered
on. Lights up in red in the standby mode. Lights up in
orange when the display enters the power saving
mode while a signal is input from a computer.
When the POWER/STANDBY indicator blinks, see “Self-
diagnosis Function” on page 43 (GB).
Control Button Section (Top)
1 INPUT button
Press to select a signal to be input from the INPUT or
OPTION1 connector.
The signal to be input switches as follows each time
you press the INPUT1 button.
INPUT1 INPUT2 OPTION1
When an option adaptor is not installed in the
OPTION1 slot, OPTION1 will be skipped.
2 MENU button
Press to show menus. Press again to hide them.
34 m/M (cursor/volume) button
Press to move the cursor (yellow), set a value, or
control speaker volume.
5 ENTER button
Press to set your choice.
6 1POWER switch
Press to power on the display unit. Press again to
return to the standby mode.
Note
To protect the panel, a certain amount of time is
required to turn the unit ON/STANDBY. Wait about 5
seconds after one of these operations before executing
the next operation.
1 2

Sony FWD-42PV1 Specifications

General

Depth	121 mm
Width	1033 mm
Height	631 mm
Weight	29000 g
HD type	Not supported
I/O ports	-DVI-HDCP; Audio In -D-sub 15-pin (RGB / YUV), DIV; Audio In Remote (RS-232C) D-sub 9-pin, Audio Out, Control S In/Out; -S-Video In / Out; Audio In, Composite In Yes, Composite Out
Audio system	Surround (Off / Hall / Simulated)
Product color	Black
Audio (L/R) in	1
Noise reduction	Yes
Display diagonal	42 \
Display brightness	50 cd/m²
Display resolution	852 x 480 pixels
Display technology	Plasma
Power requirements	100 - 240V, 50/60Hz (3.5A max)
Contrast ratio (typical)	-
Display number of colors	1.073 billion colors
Storage temperature (T-T)	-10 - 40 °C
Analog signal format system	NTSC, PAL, SECAM
Operating temperature (T-T)	0 - 35 °C
Power consumption (typical)	260 W
Operating relative humidity (H-H)	20 - 90 %
