Location and Function of Parts and Controls

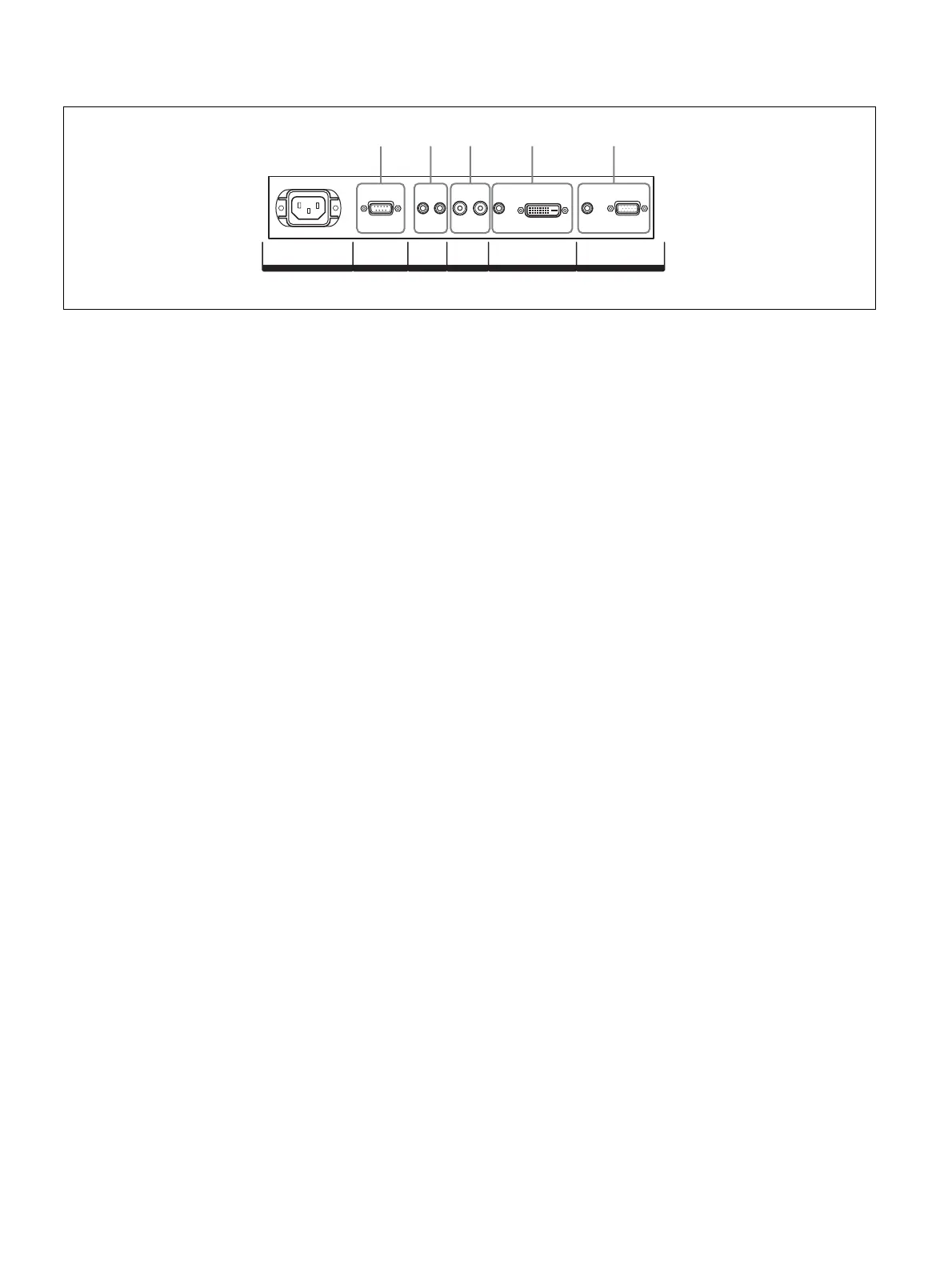

Connector Panel (Bottom)
1 REMOTE (RS-232C) connector (D-sub 9-pin)
This connector allows remote control of the display
using the RS-232C protocol. For details, contact your
authorized Sony dealers.
2 CONTROL S IN/OUT (Control S Signal Input/
Output) Connector (Minijack)
You can control multiple devices with a single remote
commander when connected to the CONTROL S
connector of a video device or other display. Connect the
CONTROL S OUT connector on this display to the
CONTROL S IN connector of the other device, and
connect the CONTROL S IN connector on this display
to the CONTROL S OUT connector of the other device.
3 AUDIO OUT L/R (Pinjack)
Outputs an audio of the signal currently indicated on
the screen.
Outputs an audio signal corresponding to the Active
Picture while in the P&P or PinP mode.
4 INPUT1 (DIGITAL RGB IN) connectors
DVI : Connects to the digital RGB signal output of
video devices. Supports HDCP copy protection.
AUDIO (Stereo minijack) : Inputs an audio signal.
Connects to the audio output of video devices.
5 INPUT2 (ANALOG RGB/COMPONENT IN)
connectors
RGB/COMPONENT (D-sub 15-pin) : Connects to
the analog RGB signal or component (YUV)
signal output of a piece of video equipment.
AUDIO (Stereo minijack) : Inputs an audio signal.
Connects to the audio output of a piece of video
equipment.
AC IN REMOTE CONTROL S AUDIO OUT INPUT 1 INPUT 2
OUTIN L AUDIO AUDIO DVI-HDCP RGB/COMPONENT R
1 52 3 4

Sony FWD-42PV1 Specifications

General

Depth	121 mm
Width	1033 mm
Height	631 mm
Weight	29000 g
HD type	Not supported
I/O ports	-DVI-HDCP; Audio In -D-sub 15-pin (RGB / YUV), DIV; Audio In Remote (RS-232C) D-sub 9-pin, Audio Out, Control S In/Out; -S-Video In / Out; Audio In, Composite In Yes, Composite Out
Audio system	Surround (Off / Hall / Simulated)
Product color	Black
Audio (L/R) in	1
Noise reduction	Yes
Display diagonal	42 \
Display brightness	50 cd/m²
Display resolution	852 x 480 pixels
Display technology	Plasma
Power requirements	100 - 240V, 50/60Hz (3.5A max)
Contrast ratio (typical)	-
Display number of colors	1.073 billion colors
Storage temperature (T-T)	-10 - 40 °C
Analog signal format system	NTSC, PAL, SECAM
Operating temperature (T-T)	0 - 35 °C
Power consumption (typical)	260 W
Operating relative humidity (H-H)	20 - 90 %
