HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W
14

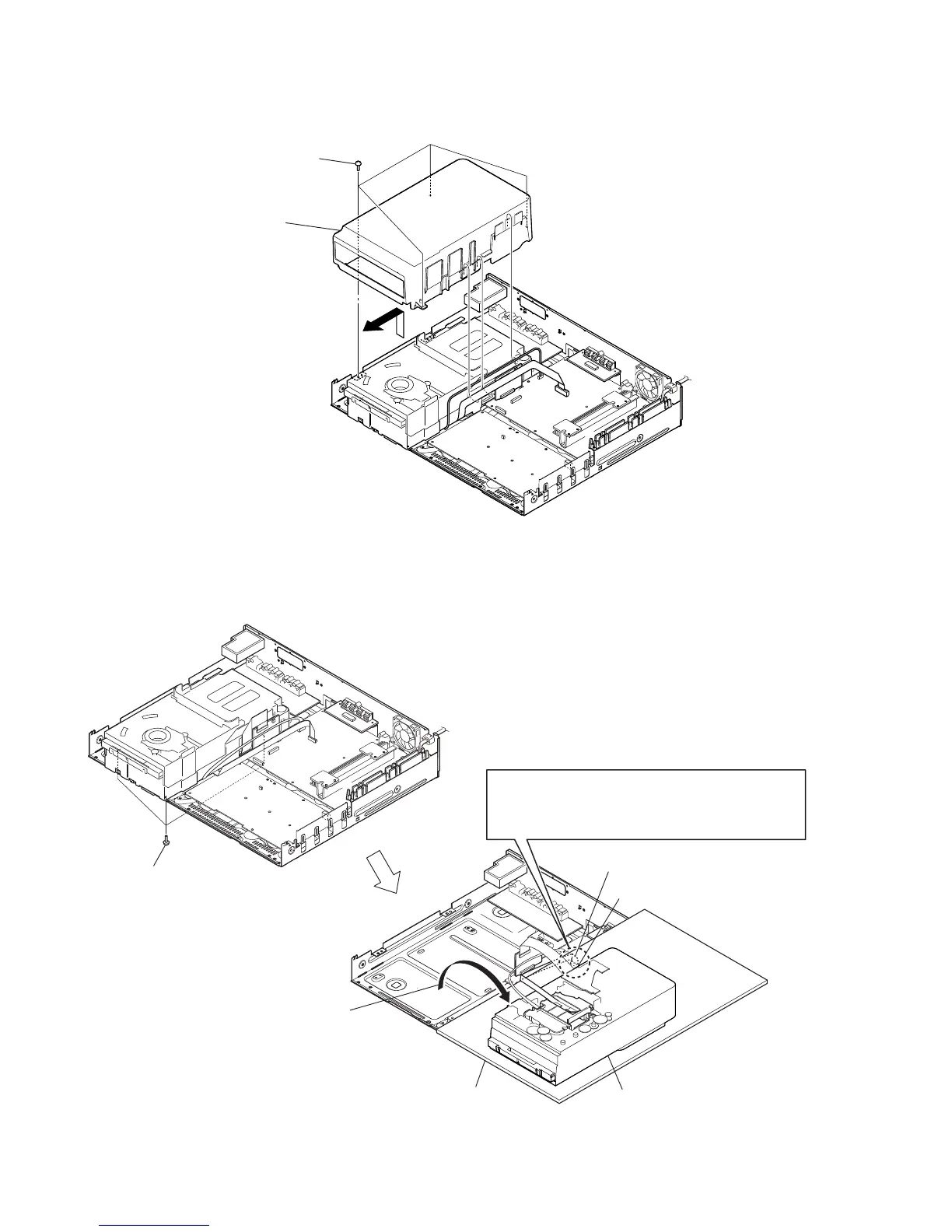

3-6. COVER (CDM-DCY)
3-7. DVD MECHANISM DECK BLOCK
four screws
(BV3 (3-CR))
cover
(CDM-DCY)
three screws
(BVTP3
×
10)
Turn over the DVD mechanism deck block.
DVD mechanism deck block
Please place a sheet for insulation.
wire (flat type) (24 core)
CN101
Note: Don’t remove the wire (flat type) (24 core) (CN101).
If you remove the wire (flat type) (24 core) (CN101),
solder the bridge of optical pick-up.
To Next Page
