Sony HCD-HDX285 - DVD Mechanism Deck Section-1 Exploded View

84
HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

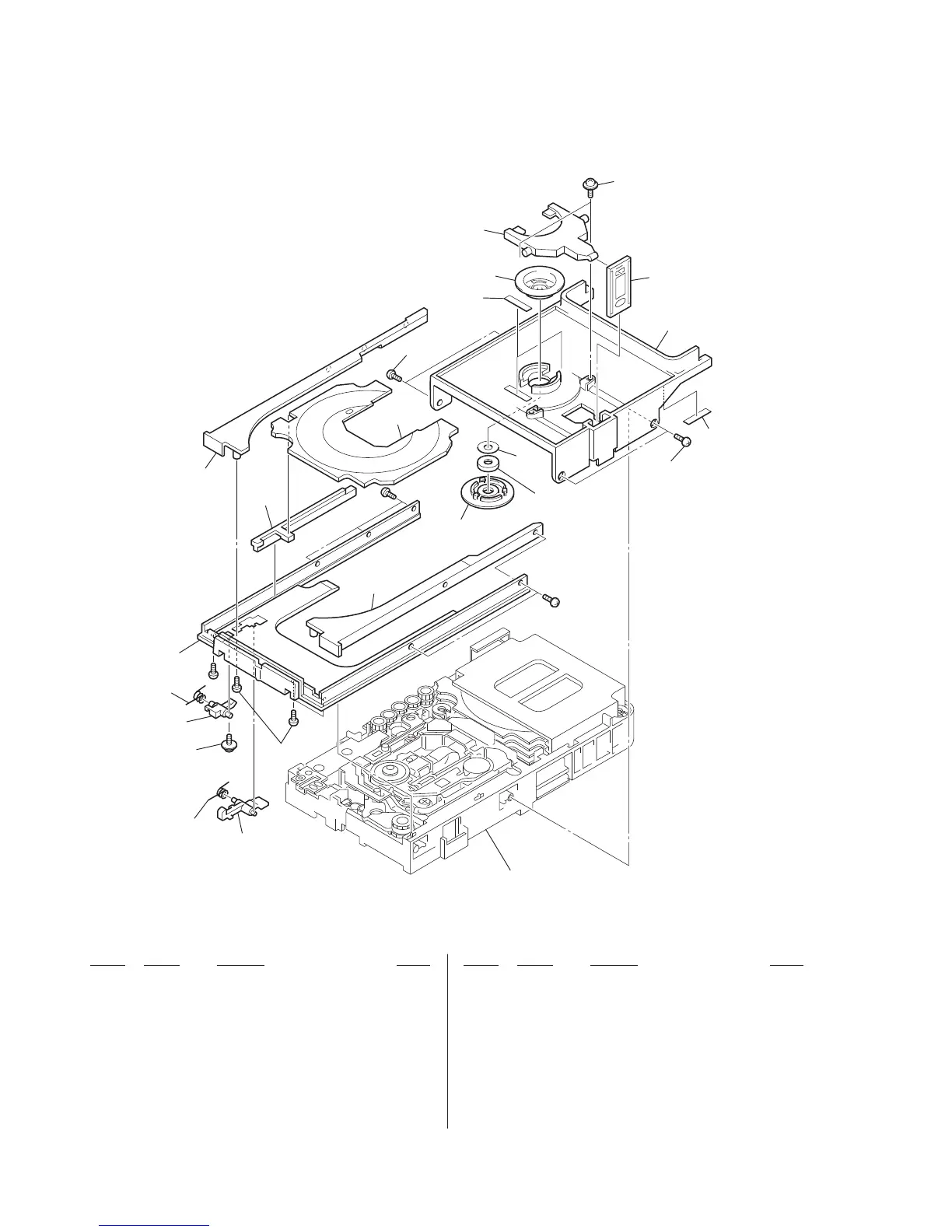

7-5. DVD MECHANISM DECK SECTION-1 (CDM81C-DVBU101)
251 4-251-849-01 LEVER (SW2)
252 4-251-991-01 SPRING (SW2), TORSION
253 4-251-860-01 LEVER (LOCK)
254 4-251-867-01 SPRING (LOCK), TORSION
255 4-251-828-01 TRAY (MAIN)
256 4-251-822-01 JOINT (LIFTER)
257 4-251-857-01 COVER (R)
258 4-251-830-01 SLIDER (ST)
259 4-251-858-01 COVER (L)
260 4-251-829-02 TRAY (SUB)
261 4-985-672-01 SCREW (+PTPWHM2.6), FLOATING
262 4-251-923-01 YOKE (310)
263 4-251-821-03 BRACKET (TOP)
264 4-251-922-01 PULLEY B (310), CHUCKING
265 4-251-824-01 LIFTER
266 4-251-837-01 PULLEY A (310), CHUCKING
267 4-218-253-52 SCREW (M2.6), +BTTP
268 4-674-137-11 SCREW (PTP 2X5)
#8 7-685-102-19 SCREW +P 2X4 TYPE2 NON-SLIT
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
251
268
267
252
255
253
267
267
254
257
258
259
260
262
266
263
264
265
261
256
not supplied
not supplied
DVD mechanism deck section-2
(CDM81C-DVBU101)
not
supplied
#8
#8
#8
