HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W
18

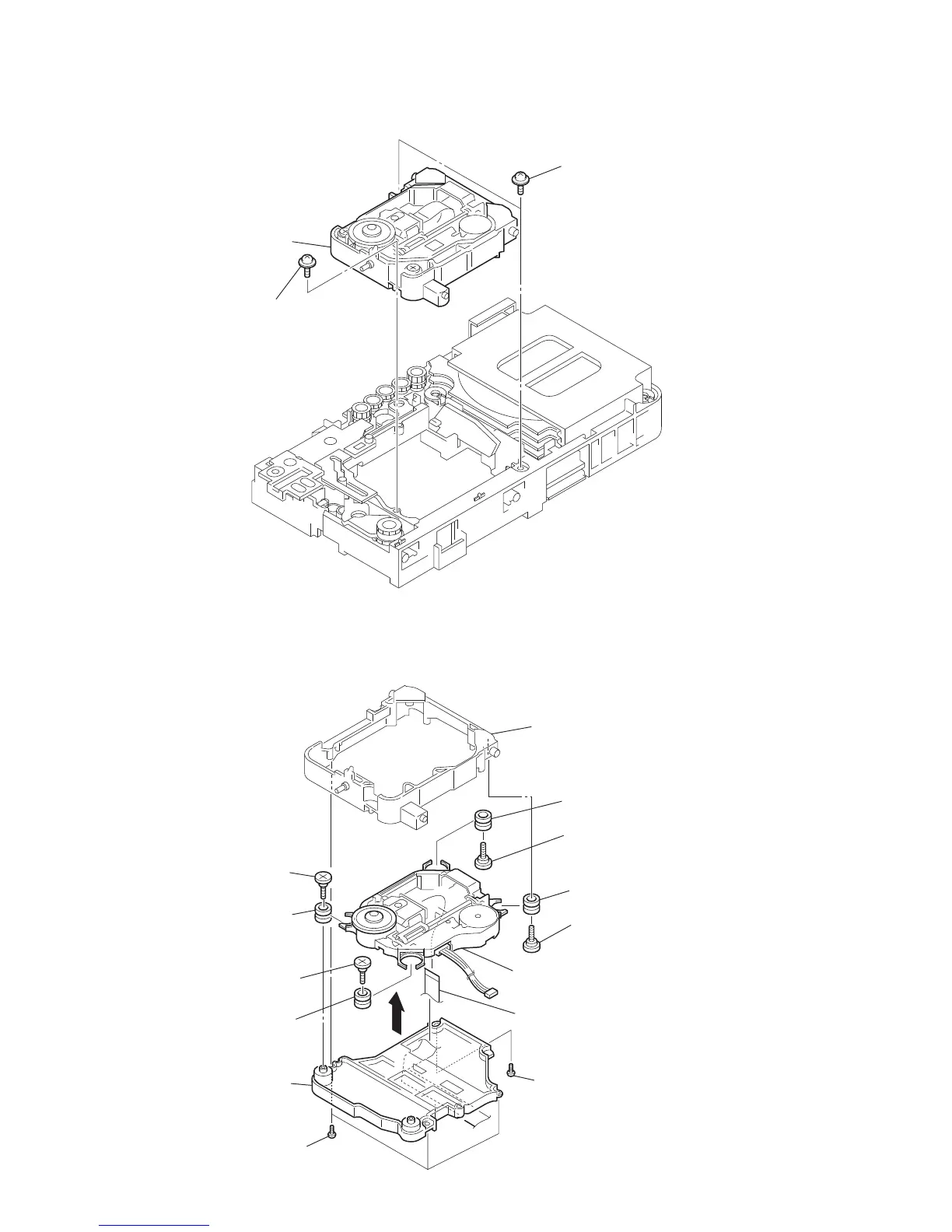

3-13. BASE UNIT
3-14. OPTICAL PICK-UP BLOCK (KHM-310CAB OR KHM-313CAB)
two floating screws
(PTPWH M2.6)
floating screw
(PTPWH M2.6)
base unit
screw
(BTP2.6 × 8)
three screws
(BTP2.6 × 8)
base (310)
insulator screw
insulator screw
holder (310)
RT optical pick-up block
(KHM-310CAB or KHM-313CAB)
RB flexible flat cable (24 core)
insulator
R insulator
insulator screw
R insulator
insulator screw
R insulator
