Sony HCD-HDX285 - Gear (Sub Tray 1);Gear (Sub Tray 2); Lever (Mode)

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W
19

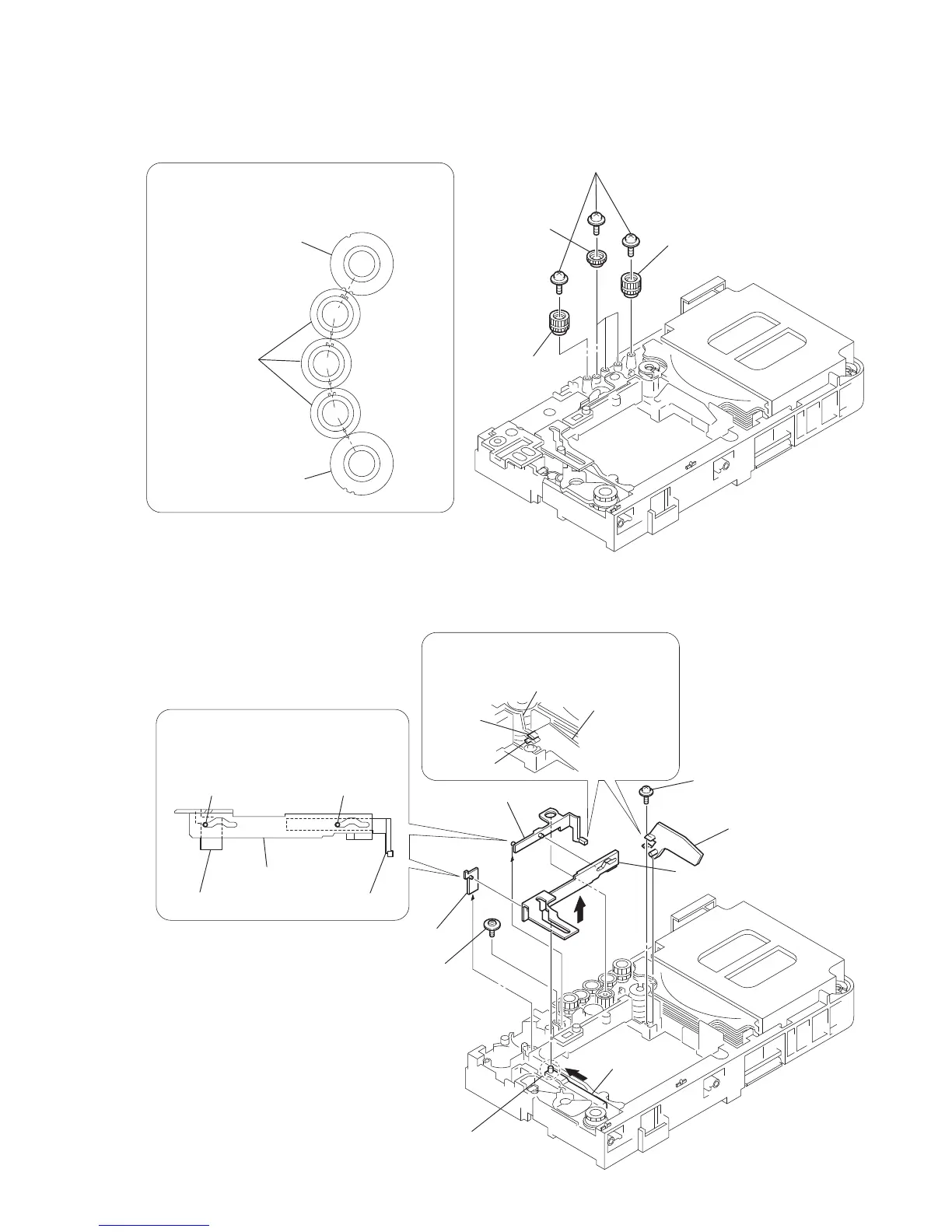

3-15. GEAR (SUB TRAY 1)/GEAR (SUB TRAY 2)
3-16. LEVER (MODE)
 five screws
(PTPWH2.6 × 8)
 gear (sub tray 2)
 gear (sub tray 2)
 three gears
(sub tray 1)
gear (sub tray 2)
gear (sub tray 2)
gear (sub tray 1)
PRECAUTION DURING GEAR (SUB TRAY 1/2) INSTALLATION
Align the marks of the gears as shown in the illustration.
 screw
(PWH2.6 × 8)
 floating screw
(PTPWH M2.6)
 lever (sub tray)
lever (sub tray)
 lever (release)
lever (release)
 lever (mode)
cam (BU)
lever (mode)
 shutter (tray)

lever (sub tray)
shutter (tray)
When re-assembling, insert the lever (sub tray)
between the bosses of the shutter (tray).
boss
boss
Before re-assembling, slide the cam (BU)
in the direction of the arrow.
Before re-assembling, align the lever (release)
and the lever (sub tray) with the lever (mode)
as shown in the illustration.
dowel dowel
