HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

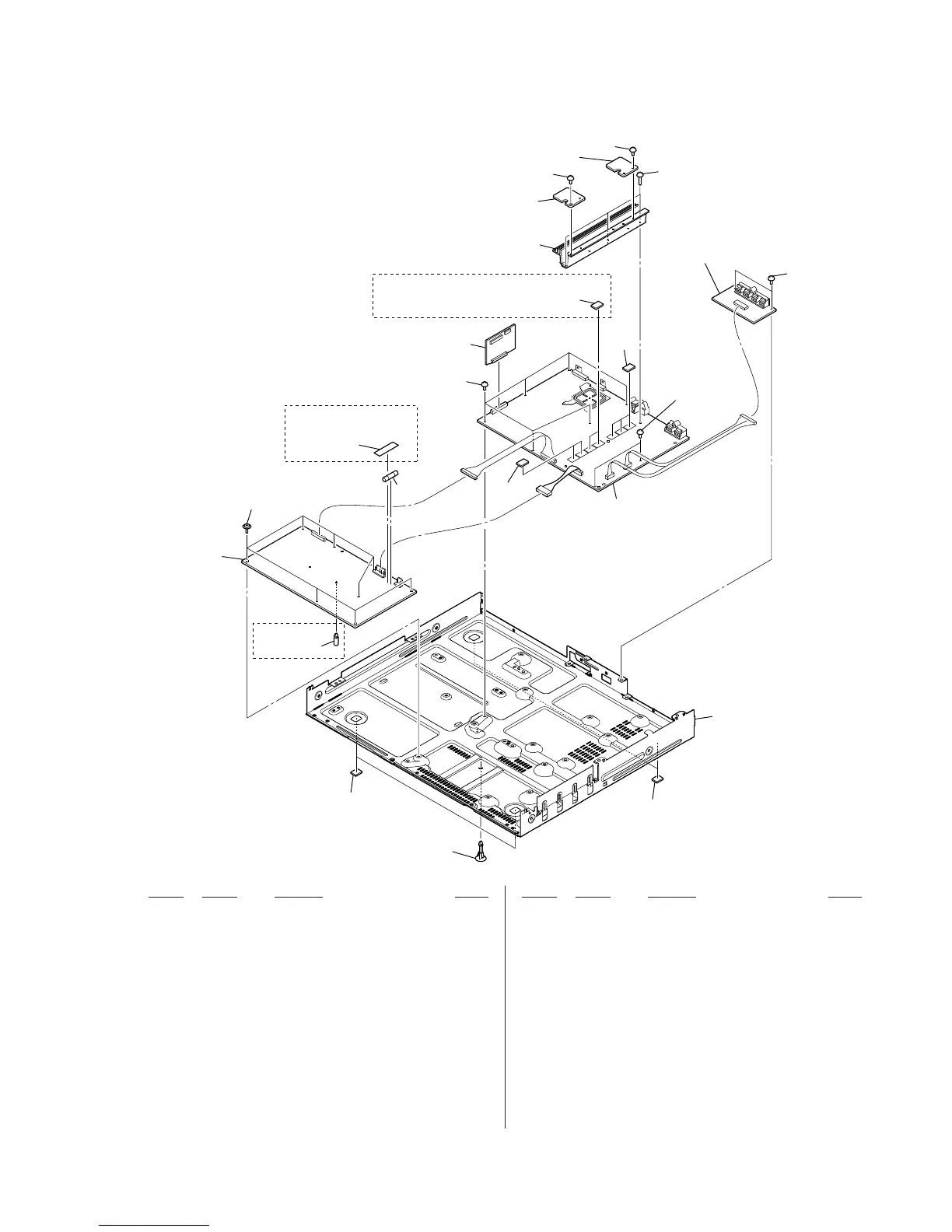

7-4. MAIN/POWER BOARD SECTION
151 A-1568-848-A POWER BOARD, COMPLETE (EA, E3)
151 A-1568-850-A POWER BOARD, COMPLETE (US, CND)
152 2-677-839-01 +PWH 3X8 (SUMITITE)
9 153 A-1602-539-A MAIN BOARD, COMPLETE (for SERVICE)
(HDX285: EA, E3)
9 153 A-1602-547-A MAIN BOARD, COMPLETE (for SERVICE)
(HDX285: US)
9 153 A-1602-568-A MAIN BOARD, COMPLETE (for SERVICE)
(HDX589W)
9 153 A-1602-575-A MAIN BOARD, COMPLETE (for SERVICE)
(HDX287WC/HDX587WC)
9 153 A-1602-588-A MAIN BOARD, COMPLETE (for SERVICE)
(HDX685)
9 153 A-1602-597-A MAIN BOARD, COMPLETE (for SERVICE)
(HDX686W)
9 153 A-1703-692-A MAIN BOARD, COMPLETE (for SERVICE)
(HDX585)
154 4-125-473-01 SHEEET, RADIATION (US)
154 4-125-473-11 SHEEET, RADIATION (CND, E3, EA)
155 3-077-331-21 +BV3 (3-CR)
156 A-1602-535-A SERIPARA BOARD, COMPLETE
157 3-077-331-01 +BV3 (3-CR)
158 4-232-478-51 FOOT
159 3-077-331-11 +BV3 (3-CR)
0 F901 1-533-311-12 FUSE, GLASS CYLINDRICAL (DIA.5) (8A/125V)
(US, CND)
0 F901 1-576-232-51 FUSE (H.B.C.) (T5AH/250V) (EA, E3)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
158
158
152
151
153
154
155
156
154
155
159
157
157
154
155
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
(SPEAKER board)
not supplied
(HEATSINK A board)
not supplied
(HEATSINK B board)
F901
(US, CND)
(HDX285)
(HDX285/HDX287WC/HDX585/
HDX587WC/HDX685)
