Sony HCD-HDX285 - Stocker Block and Cam Disassembly; Cam (Stocker) Installation Precautions

HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W
20

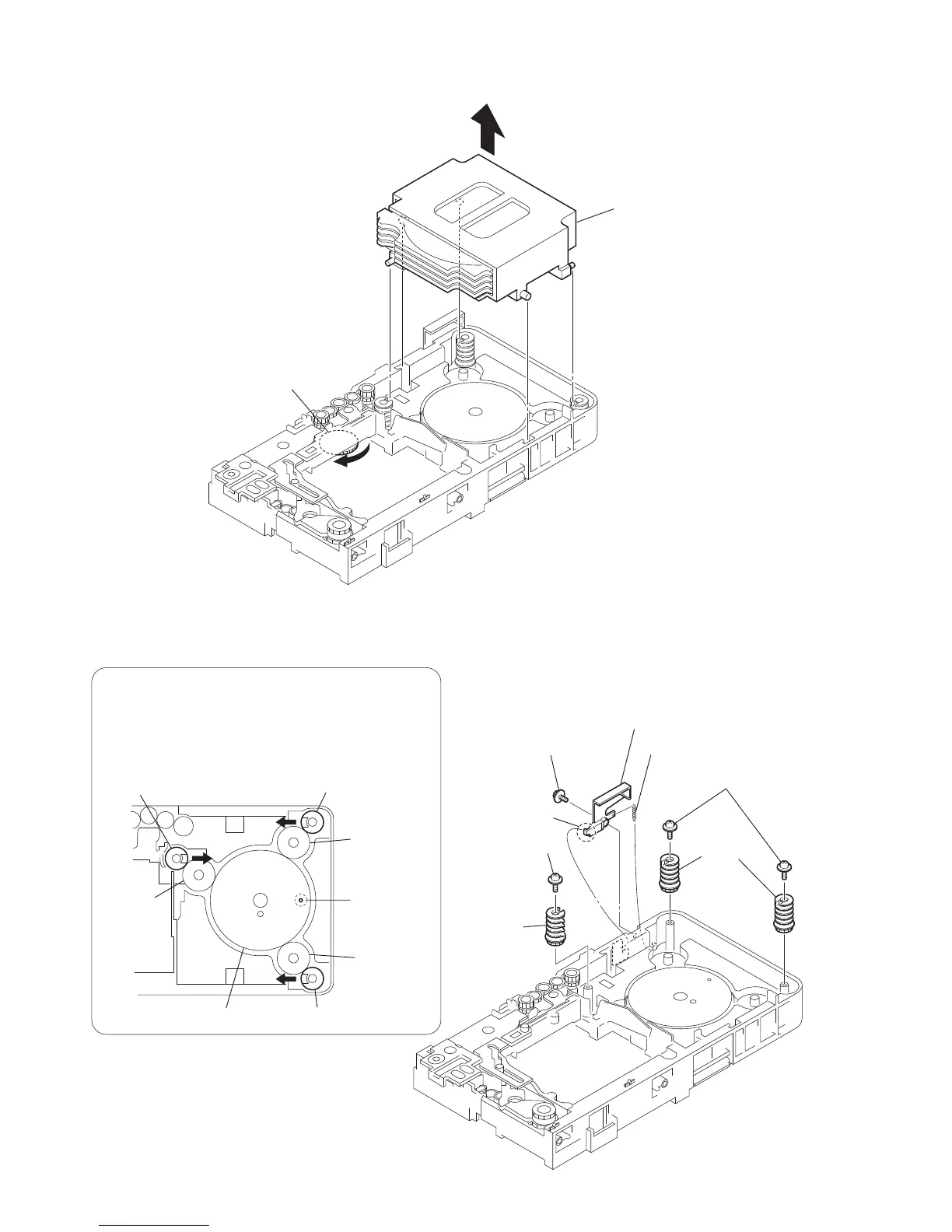

3-17. STOCKER BLOCK
3-18. CAM (STOCKER)
 stocker block
 Rotate the gear (SS3) in the
direction of the arrow.
 two screws
(PWH2.6 × 8)
 two cams
(stocker)
 cam
(stocker)
cam (stocker)
cam (stocker)
cam (stocker)
hole
gear
(stocker 2)
gear
(stocker 2)
gear
(stocker 2)
gear (stocker 3)
 tension spring (SW)
 lever (SW)
 floating screw
(PTPWH M2.6)
 screw
(PWH2.6 × 8)
 hook
PRECAUTION DURING CAM (STOCKER) INSTALLATION
Before installing the cams (stocker), fix the gear (stocker 3) in
the manner so that the hole of the gear (stocker 3) should be
aligned with the hole of the chassis located beneath
the gear (stocker 3). Be sure to install the cams (stocker) in
such a way that the grooves of the cams (stocker) face
the direction of the arrows.
