Sony HCD-HDX285 - DVD Mechanism Deck Section-3 Exploded View

86
HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

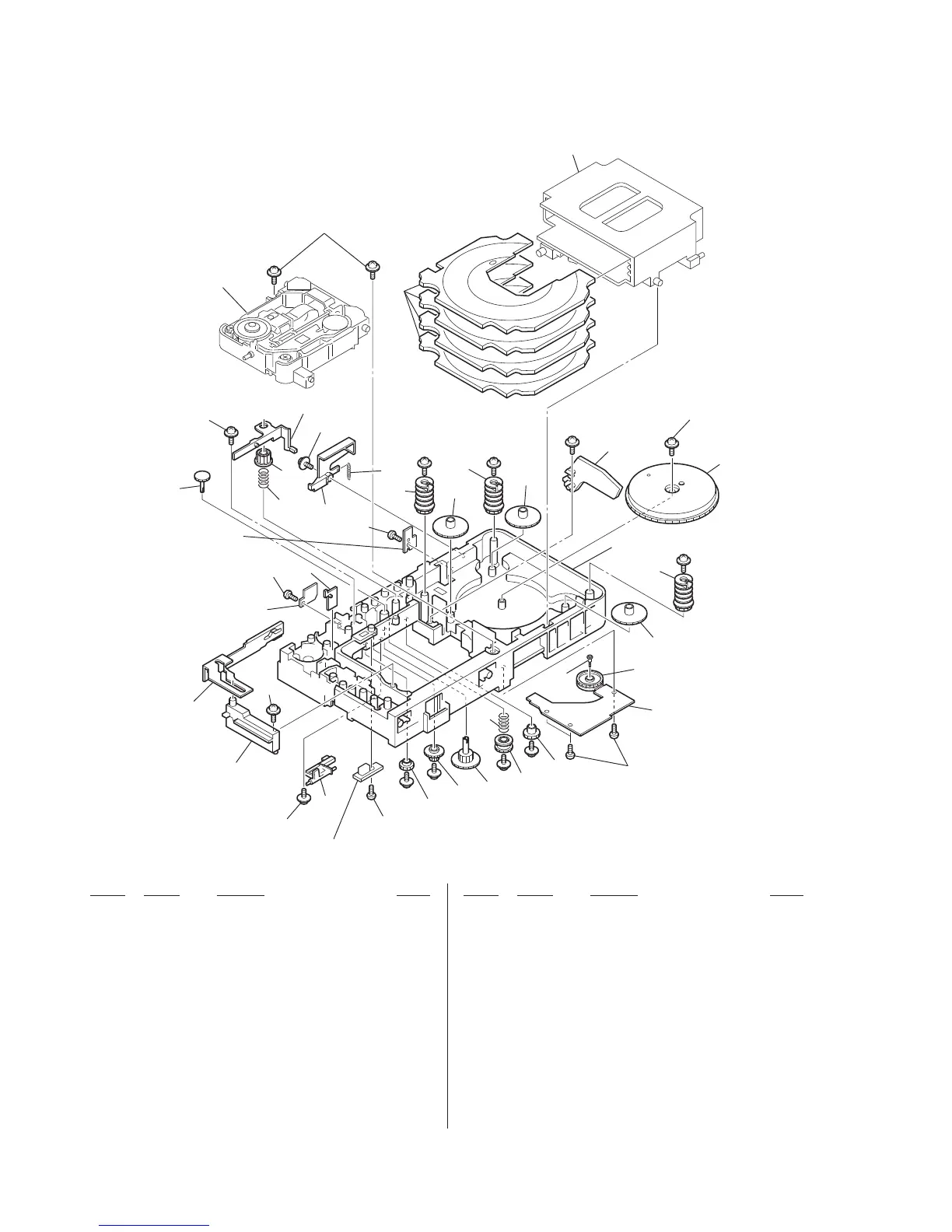

7-7. DVD MECHANISM DECK SECTION-3 (CDM81C-DVBU101)
351 4-985-672-01 SCREW (+PTPWHM2.6), FLOATING
352 4-251-873-01 SPRING (MODE), COMPRESSION
353 4-251-874-02 SPRING (SW), EXTENSION
354 4-251-844-01 GEAR (SS2)
355 4-251-835-01 GEAR (STOCKER 1)
356 4-251-833-01 LEVER (SUB TRAY)
357 4-251-843-01 LEVER (RELEASE)
358 4-251-831-02 LEVER (MODE)
359 4-251-862-01 SHUTTER (TRAY)
360 4-251-845-01 GEAR (SS3)
361 4-251-829-02 TRAY (SUB)
362 4-251-827-01 CAM (STOCKER)
363 4-251-836-01 GEAR (STOCKER 2)
364 4-251-838-01 GEAR (STOCKER 3)
365 4-251-823-01 CHASSIS (CDM81)
366 A-4750-232-A RELAY BOARD, COMPLETE
367 4-239-618-01 SCREW (+PWH, 2X6), STEP TAPPING
368 4-251-825-01 CAM (BU)
369 4-251-832-01 LEVER (STOCKER)
370 4-251-861-01 LEVER (SW)
371 4-251-839-01 GEAR (STOCKER 4)
372 4-251-840-01 GEAR (SUB TRAY)
373 4-251-847-01 GEAR (SS4)
374 4-218-253-52 SCREW (M2.6), +BTTP
375 4-251-841-01 GEAR (SUB TRAY 1)
S781 1-478-551-11 ENCODER, ROTARY (STOCKER UP/DOWN)
#7 7-685-902-21 TAPPING +PWH 2.6X8 TYPE2 N-S
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
not supplied
(SENSOR board)
not supplied
(SW (1) board)
not supplied
(SW (2) board)
351
369
368
351
358
357
370
373
352
372
356
351
351
351
361
353
362
362
363
363
359
364
365
362
363
S781
366
367
351
355
371
360
354
375
374
374
374
374
352
#7
#7
#7
#7
#7
#7
#7
#7
not supplied
optical pick-up section
