HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

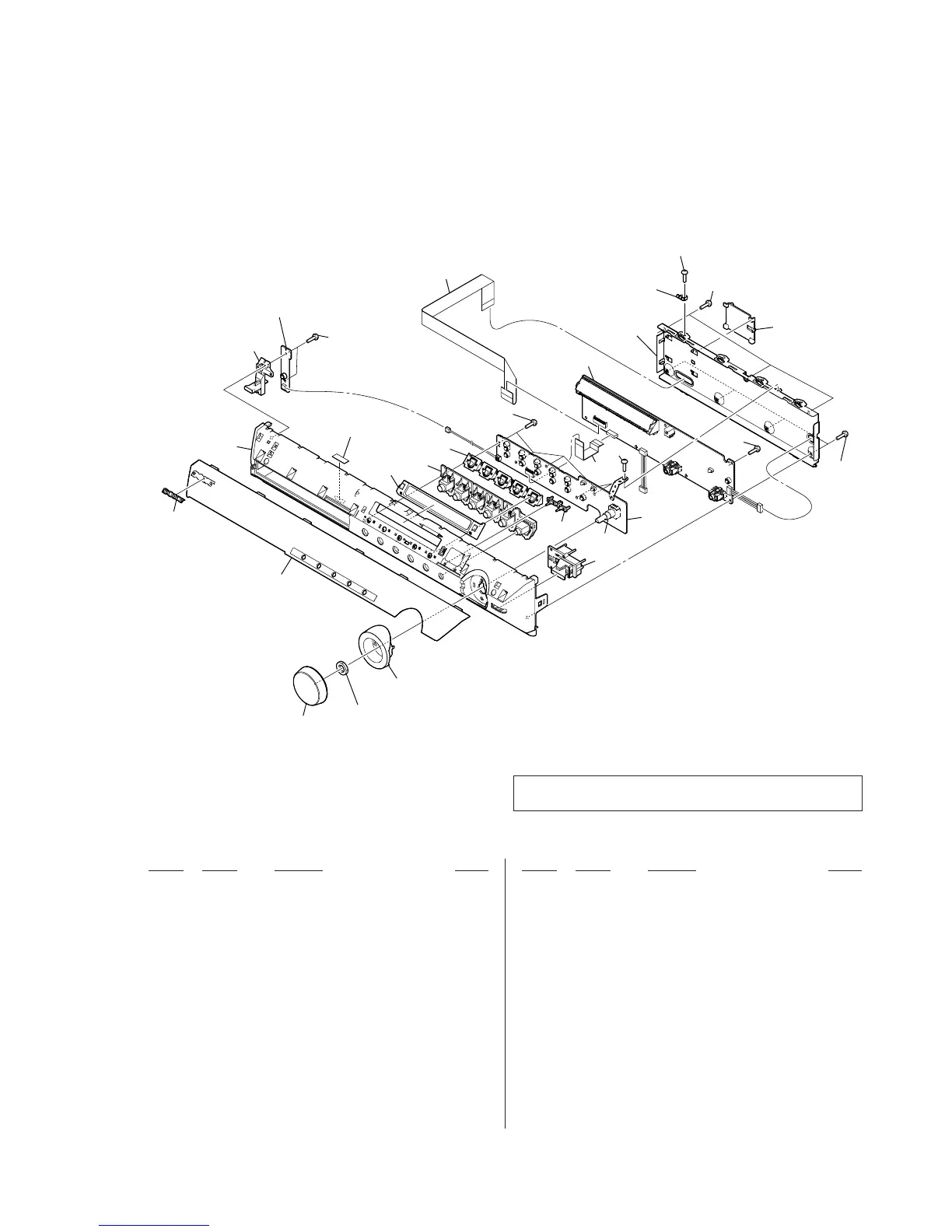

7-2. FRONT PANEL SECTION
51 4-120-907-01 KNOB (VOL-DCY)
52 3-943-995-01 EMBLEM (NO.5), SONY
53 4-120-905-02 WINDOW (DCY) (HDX585)
53 4-120-905-12 WINDOW (DCY) (HDX686W)
53 4-120-905-22 WINDOW (DCY) (HDX685)
53 4-120-905-32 WINDOW (DCY) (HDX287WC)
53 4-120-905-42 WINDOW (DCY) (HDX587WC)
53 4-120-905-52 WINDOW (DCY) (HDX589W)
53 4-120-905-62 WINDOW (DCY) (HDX285)
54 4-120-906-02 RING (VOL-DCY)
55 4-120-904-01 PANEL, FRONT (DCY)
(HDX285: US/HDX585/HDX685)
55 4-120-904-11 PANEL, FRONT (DCY)
(HDX287WC/HDX587WC/HDX589W/HDX686W)
55 4-120-904-21 PANEL, FRONT (DCY) (HDX285: EA, E3)
56 4-120-909-01 BUTTON (POWER-DCY) (I/1)
57 4-120-913-01 FILTER (COLOR-DCY)
58 4-120-910-01 BUTTON (PLAY-DCY)
(Z, N, x, ., ., FUNCTION)
59 4-120-922-01 BUTTON (DISC)
60 4-120-911-02 BUTTON (BOOSTER) (DMPORT BOOSTER)
61 4-120-912-01 INDICATOR (MM-DCY)
62 A-1602-530-A KEY BOARD, COMPLETE
63 3-087-053-01 +BVTP2.6 (3CR)
64 1-828-317-11 WIRE (FLAT TYPE) (11 CORE)
65 1-828-353-11 WIRE (FLAT TYPE) (17 CORE)
66 A-1602-528-A FL-JACK BOARD, COMPLETE
67 3-077-331-21 +BV3 (3-CR)
68 4-120-914-01 HOLDER (FFC-DCY)
S5113 1-480-136-11 ENCODER, ROTARY (12 TYPE) (VOLUME)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
51
54
52
55
56
57
53
not supplied
(P-SW board)
not supplied
not supplied
not supplied
supplied with S5113
58
59
60
61
62
64
67
63
65
67
63
63
68
66
63
63
S5113
Note: If wire (fl at type) is replaced, install it after bending it in the
same form as thet before replacement
