HCD-SC5/SC6/SC8
Note: Follow the disassembly procedure in the numerical order given.

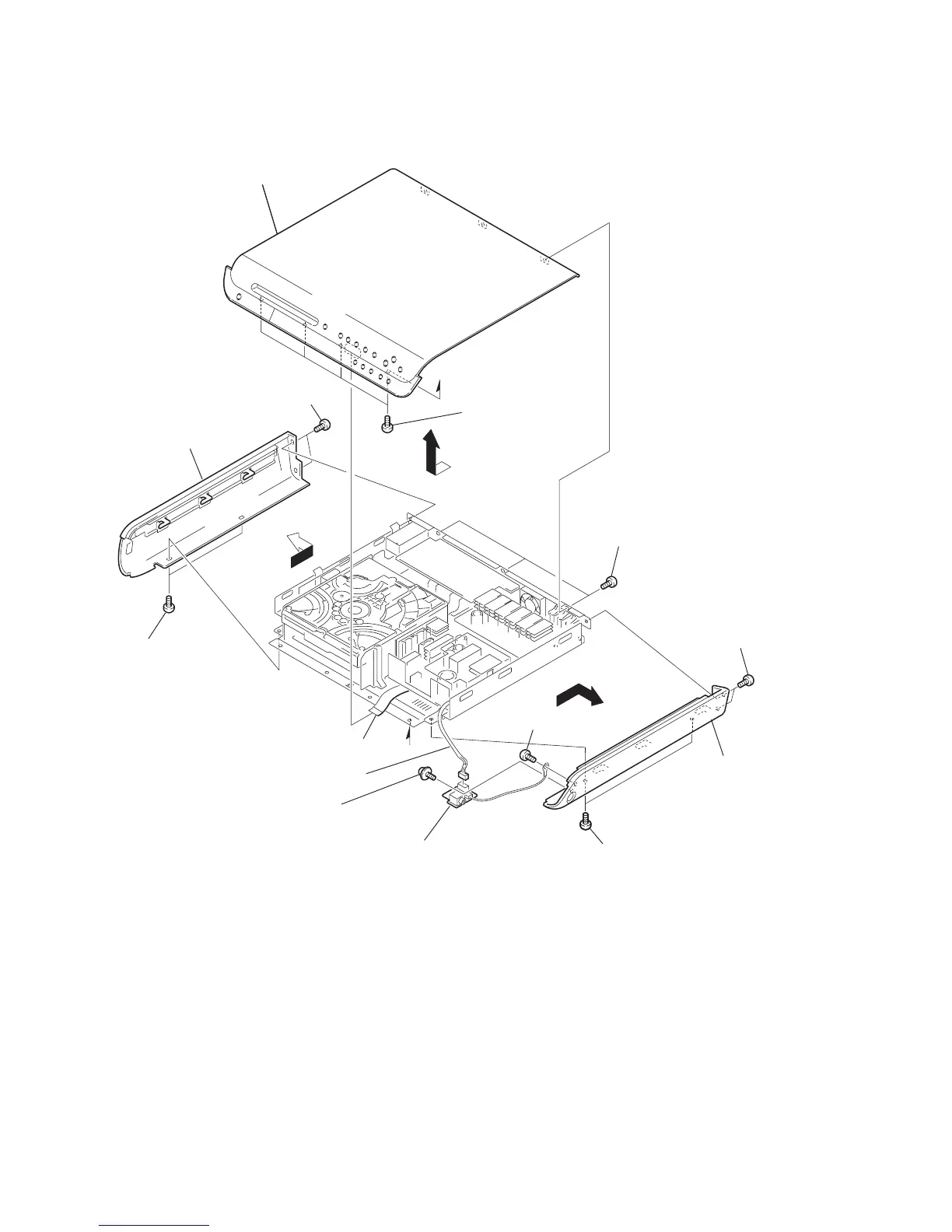

3-1. FRONT PANEL SECTION, SIDE PANEL (L/R) SECTION
a
a
0 screw
(+BTP 3
× 6)
qa screw
(+PTPWHM 2.6
× 6)
qf two screws
(+BVTP 3
× 8)
7 two screws
(+BVTP 3
× 8)
2 four screws
(+BVTP 3
× 8)
1 three screws
(+BVTP 3
× 8)
3
4
wire (flat type)(CN814)
9 connector (CN900)
qs HP board
5 front panel section
8 side panel (L)
6 two screws
(+BVTP 3
× 8)
qd two screws
(+BVTP 3
× 8)
qg side panel (R
)
