HCD-SC5/SC6/SC8
203
205
202
201
#1
#1
not supplied
F902
not supplied
not supplied
not supplied
SC6:AEP,UK/SC8:AEP,UK
not supplied
mechanism deck
section-1
(CDM80-DVBU24)
201
#1
204
204

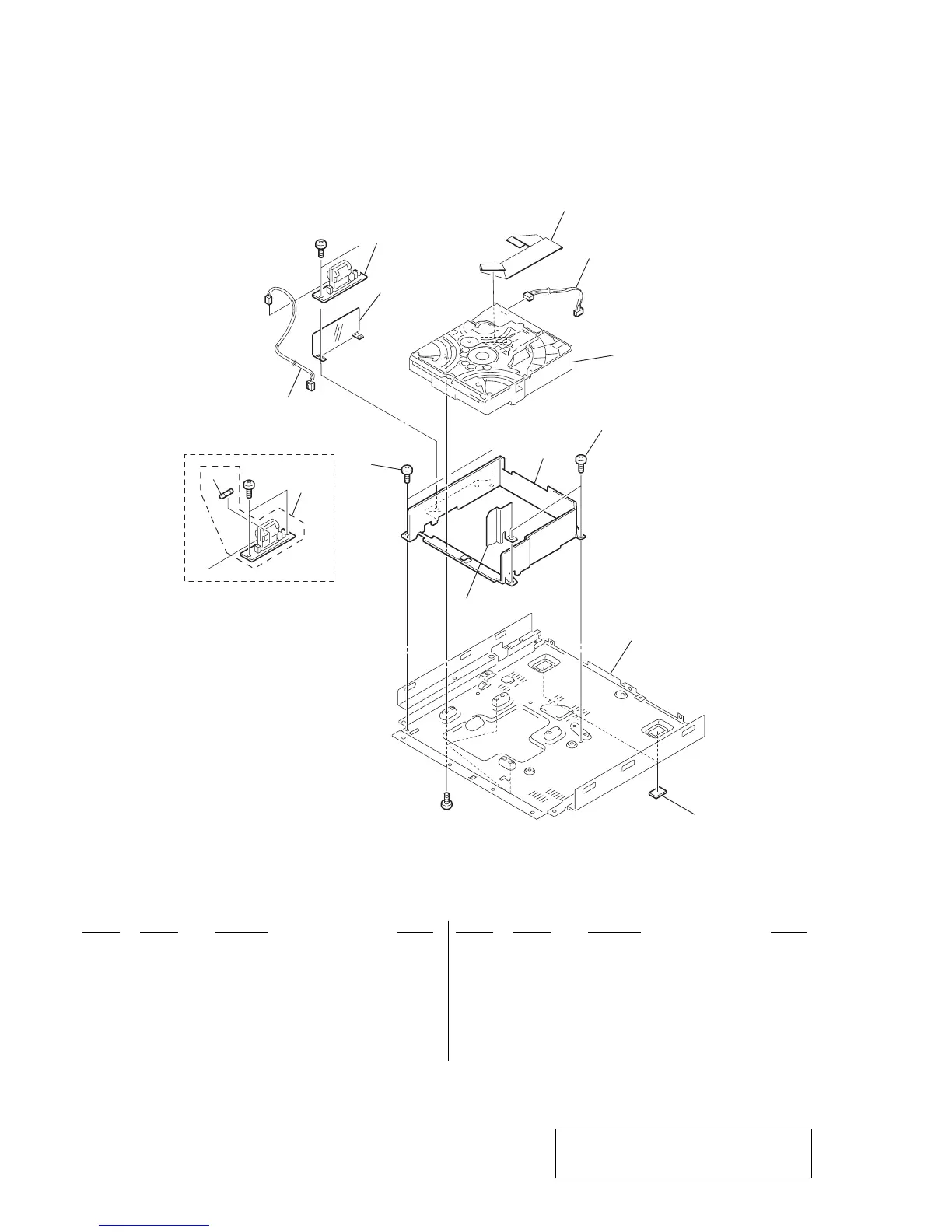

7-5. CHASSIS SECTION-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
201 1-468-790-11 POWER SWITCHING (including Ref.No.101)
(SC6:AEP,UK/SC8:AEP,UK)
201 A-4747-662-A LF BOARD, COMPLETE
(SC5:AEP,UK,RU,SP,EA,HK,KR/SC6:RU,SP,EA,KR,AUS/
SC8:RU,SP,EA,HK,KR,AUS)
201 A-4749-311-A LF BOARD, COMPLETE (SC8:MX)
201 A-4749-715-A LF BOARD, COMPLETE (SC5:E32/SC8:E32)
201 A-4749-846-A LF BOARD, COMPLETE (SC5:TW/SC8:TW)
202 4-248-579-01 MD COVER
203 4-249-991-01 FOOT
204 3-970-608-11 SUMITITE (B3), +BV
205 1-827-626-11 FLEXIBLE FLAT CABLE (29 CORE)
0F902 1-532-465-31 FUSE (T3.15AL/250V)
(SC6:AEP,UK/SC8:AEP,UK)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
To Next Page
