HCD-SC5/SC6/SC8

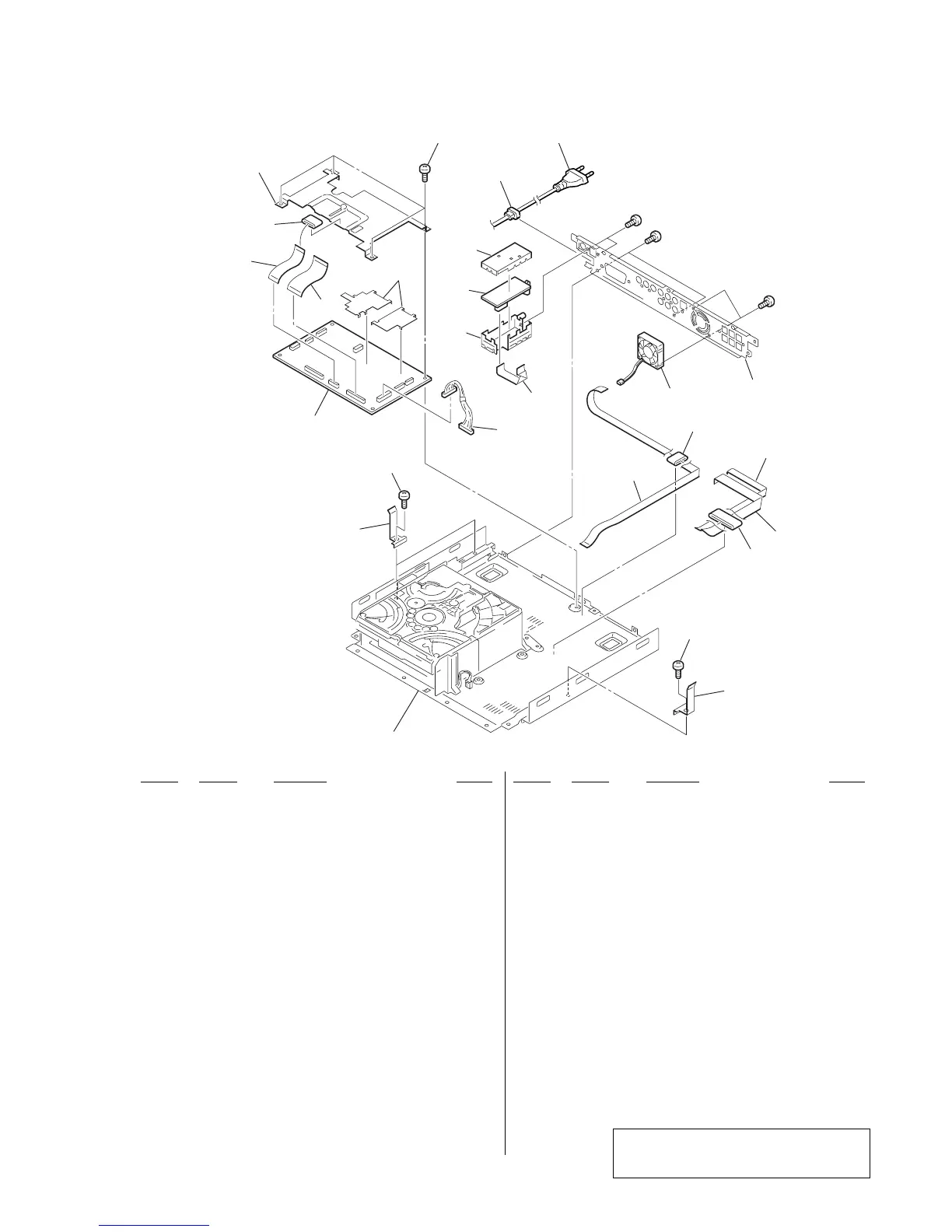

7-4. CHASSIS SECTION-2
151 A-4748-350-A DVD BOARD, COMPLETE (SC5:AEP,UK)
151 A-4749-315-A DVD BOARD, COMPLETE (SC8:MX)
151 A-4749-579-A DVD BOARD, COMPLETE (SC6:AEP,UK)
151 A-4749-584-A DVD BOARD, COMPLETE (SC8:AEP,UK)
151 A-4749-709-A DVD BOARD, COMPLETE (SC5:HK,SP)
151 A-4749-716-A DVD BOARD, COMPLETE (SC5:E32)
151 A-4749-749-A DVD BOARD, COMPLETE (SC5:RU)
151 A-4749-756-A DVD BOARD, COMPLETE (SC6:AUS)
151 A-4749-758-A DVD BOARD, COMPLETE (SC6:RU)
151 A-4749-760-A DVD BOARD, COMPLETE (SC6:SP)
151 A-4749-762-A DVD BOARD, COMPLETE (SC5:EA)
151 A-4749-782-A DVD BOARD, COMPLETE (SC8:RU)
151 A-4749-784-A DVD BOARD, COMPLETE (SC8:AUS)
151 A-4749-786-A DVD BOARD, COMPLETE (SC8:HK,SP)
151 A-4749-792-A DVD BOARD, COMPLETE (SC8:EA)
151 A-4749-852-A DVD BOARD, COMPLETE (SC5:TW)
151 A-4750-056-A DVD BOARD, COMPLETE (SC5:KR)
151 A-4750-071-A DVD BOARD, COMPLETE (SC6:EA)
151 A-4750-073-A DVD BOARD, COMPLETE (SC6:KR)
151 A-4750-075-A DVD BOARD, COMPLETE (SC8:KR)
151 A-4750-119-A DVD BOARD, COMPLETE (SC8:E32)
151 A-4750-121-A DVD BOARD, COMPLETE (SC8:TW)
152 1-500-657-11 CORE, FERRIET
* 153 3-703-244-00 BUSHING (2104), CORD
0 154 1-696-169-51 CORD, POWER (EXCEPT AUS,KR,MX,TW)
0 154 1-696-848-51 CORD, POWER (AUS)
0 154 1-769-079-22 CORD, POWER (KR)
0 154 1-775-789-91 CORD, POWER (MX,TW)
155 A-4734-407-A TUNER UNIT (AEP/UK/RU/KR/EA)
155 A-4734-411-A TUNER UNIT (EXCEPT AEP/UK/RU/KR/EA)
156 1-763-861-12 FAN, DC
157 1-469-854-11 CORE, FERRITE
158 3-970-608-11 SUMITITE (B3), +BV
159 1-827-625-11 FLEXIBLE FLAT CABLE (11 CORE)
160 1-827-620-11 FLEXIBLE FLAT CABLE (15 CORE)
161 1-827-623-11 FLEXIBLE FLAT CABLE (15 CORE)
162 1-827-624-11 FLEXIBLE FLAT CABLE (11 CORE)
163 1-827-622-11 FLEXIBLE FLAT CABLE (15 CORE)
164 1-827-621-11 FLEXIBLE FLAT CABLE (29 CORE)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
#3 7-685-881-09 SCREW +BVTT 4X8 (S)
not supplied
not supplied
not
supplied
not
supplied
not supplied
not supplied
not supplied
not supplied
152
152
163
164
155
153
158
154
156
151
157
159
160
162
161
158
158
chassis section-3
#1
#1
#3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
