18
HCD-SC5/SC6/SC8

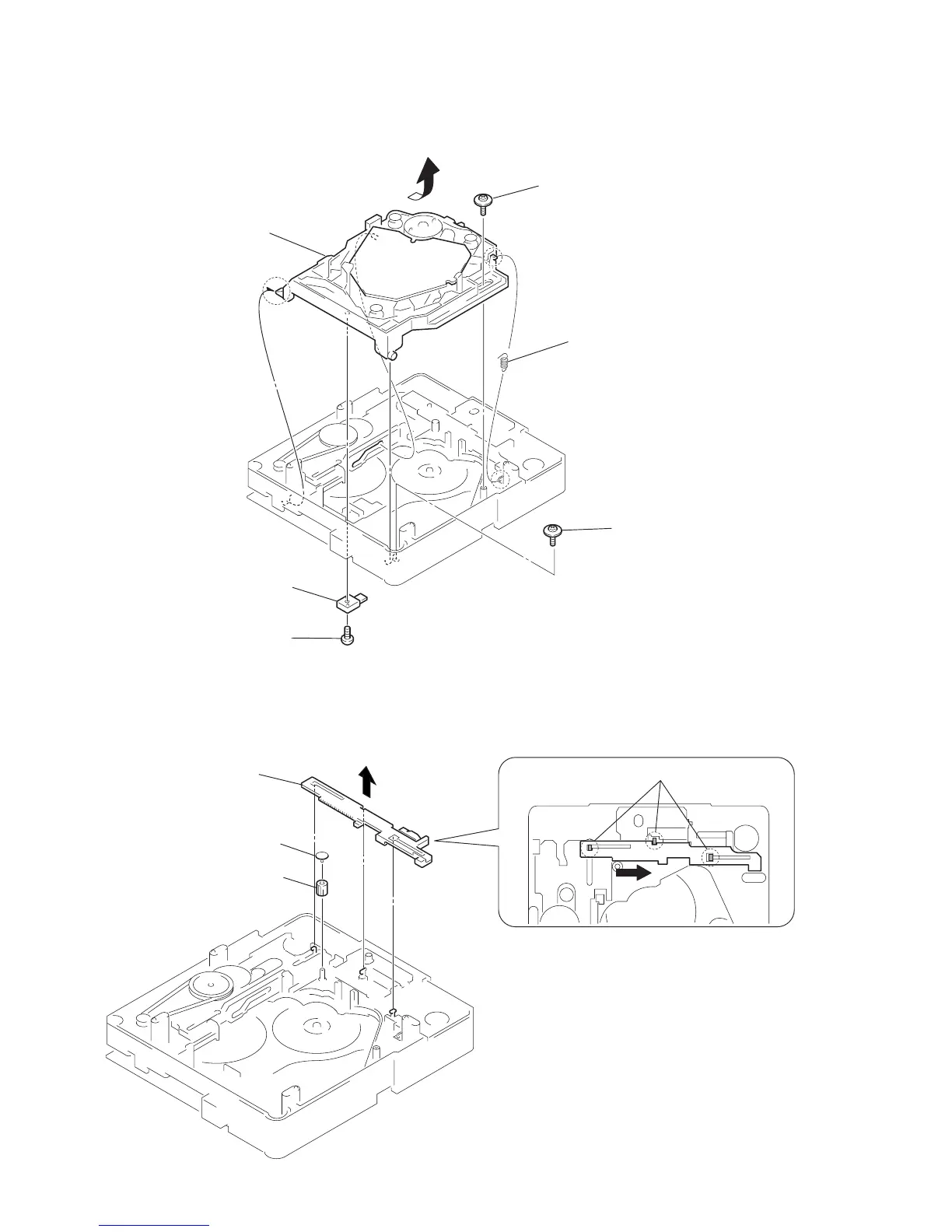

3-15. BASE UNIT
4
floating screw
(+PTPWHM 2.6)
5
floating screw
(+PTPWHM 2.6)
3
holder down spring
6
base unit
1
screw
(+BVTP 2.6
×
8)
2
lever (CL UP2)
3-16. LEVER (BU LOCK)
3
three hooks
2
4
lever (BU lock)
1
gear (cap)
2
gear (BU lock)
