102
HCD-SC5/SC6/SC8

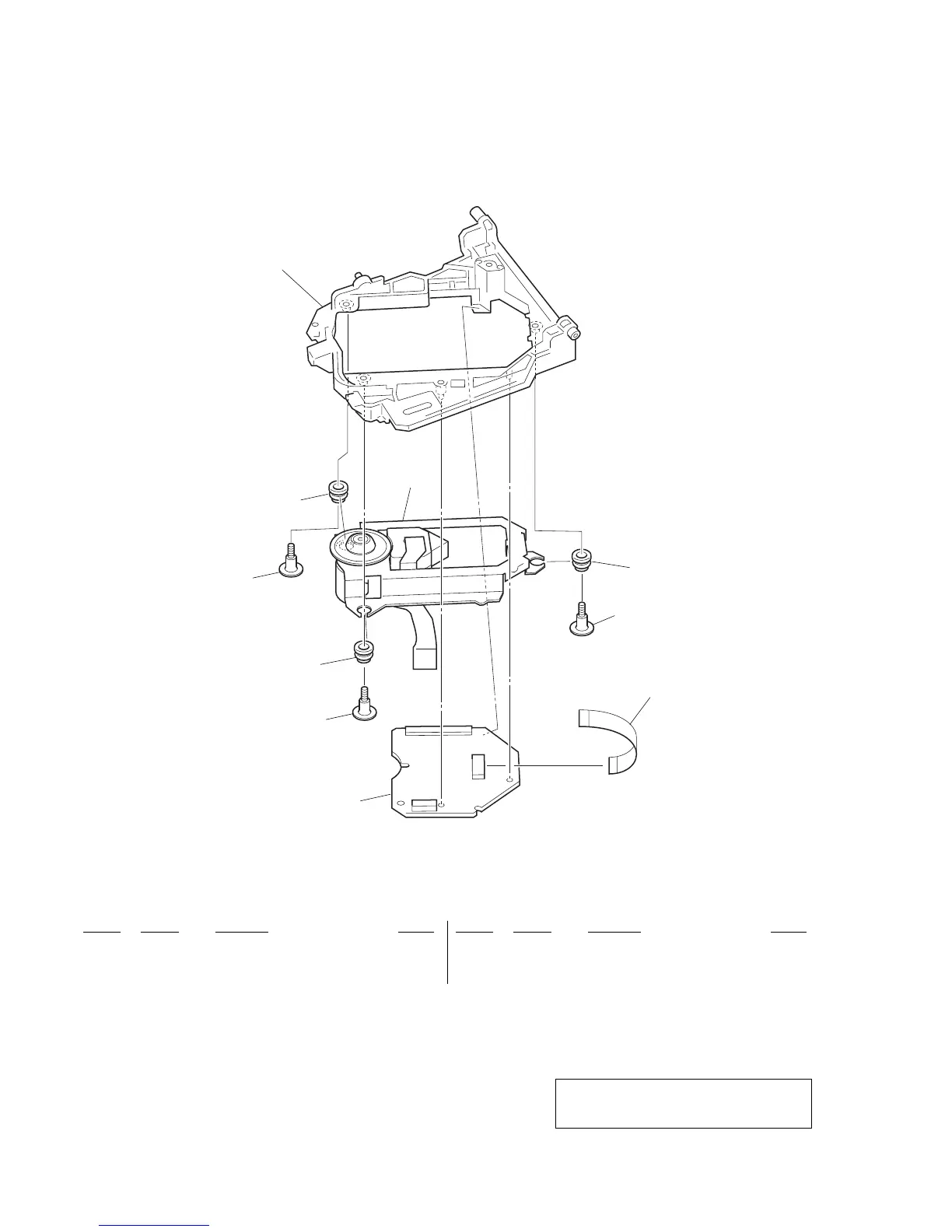

7-9. BASE UNIT SECTION
603
603
605
604
604
601
602
604
603
606
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
601 A-4728-690-A RF BOARD, COMPLETE
602 1-685-250-11 PWB, FLEXIBLE
603 4-981-923-01 SCREW (M), STEP
604 3-053-847-41 INSULATOR
0 605 1-477-263-11 OPTICAL PICK-UP (TDP022W)
606 X-4955-484-1 HOLDER (BU) ASSY
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
To Next Page
