HCD-SC5/SC6/SC8

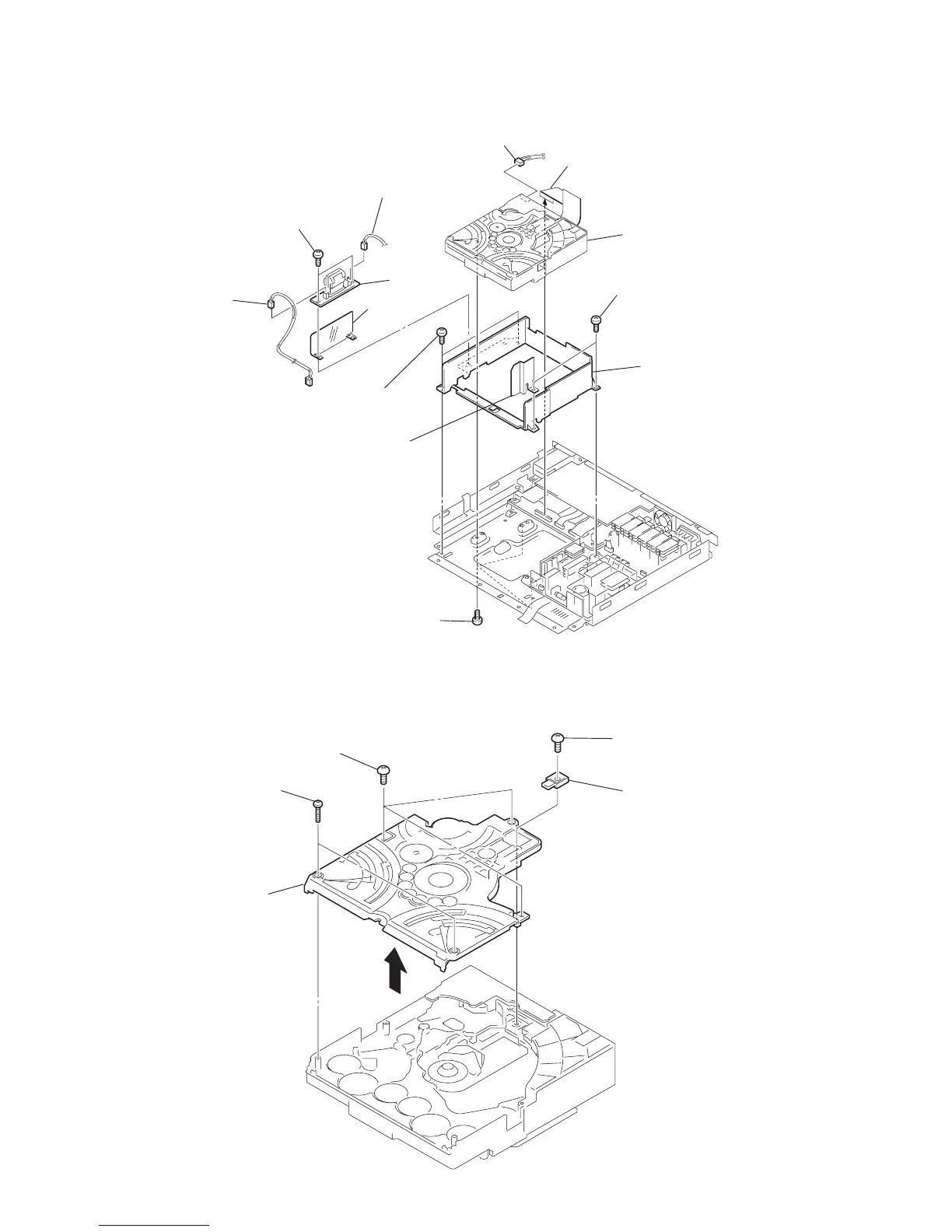

3-8. CD MECHANISM DECK (CDM80-DVBU24)
q; two screws
(+BV SUMITITE B3)
qa two screws
(+BV SUMITITE B3)
qd MD cover
qs MD cover sheet
3 connector (CN701)
5 connector (CN900)
6 connector
(CN901)
2 wire (flat type) (CN401)
4 mechanism deck
(CDM80-DVBU24)
7 two screws
(+BVTP 3 × 8)
8 LF board
9 sheet
1 three screws
(+BVTP 3 × 8)
3-9. CHASSIS (TOP)
1 screw
(+BVTP 2.6
× 8)
4 three screws
(+BVTP 2.6
× 8)
3 two screws
(+P 2
× 10)
5 chassis (top)
2 lever (CL UP2
)
